ABB SDCS-CON-81 3ADT314900R1002 Ruggedized Control Module

Product Overview

ABB SDCS-CON-81 3ADT314900R1002 Ruggedized Control Module: Industrial Resilience for Harsh Environments

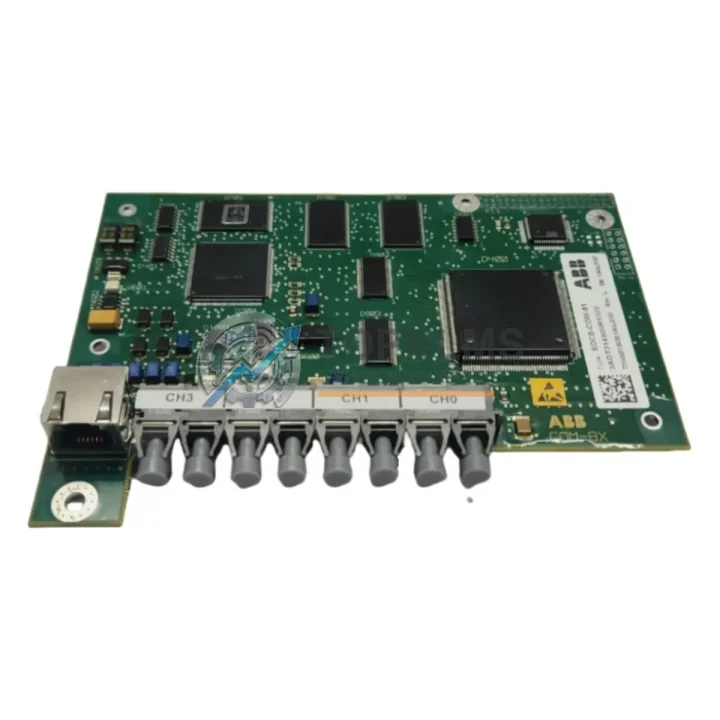

The ABB SDCS-CON-81 (part number 3ADT314900R1002) is the main control interface board for ABB’s DCS800 series DC drives, engineered to deliver uninterrupted performance in the most demanding industrial environments. Designed and manufactured in Germany to ABB’s exacting quality standards, this module serves as the intelligence core of the DCS800 drive platform — managing speed regulation, current control, field excitation, and digital communications in a single ruggedized assembly.

In continuous production environments such as steel rolling mills, paper machines, mining hoists, and chemical processing lines, the SDCS-CON-81 operates reliably under conditions that would compromise lesser control hardware. Its robust PCB construction, conformal coating, and shielded signal paths allow it to withstand ambient temperatures from -10°C to +55°C, relative humidity up to 95% non-condensing, and vibration levels consistent with IEC 60068-2-6 test profiles. The board’s EMI immunity is validated to EN 61800-3 Category C3, making it suitable for installation in industrial zones with significant electromagnetic interference from variable frequency drives, large motors, welding equipment, and high-current bus bars.

Within a DCS800 control cabinet, the SDCS-CON-81 interfaces directly with the SDCS-POW-1 power supply board, the SDCS-FEX-2 field excitation module, and the SDCS-IOB-3 I/O expansion board, forming a tightly integrated drive architecture. The module supports DDCS fiber-optic communication, enabling high-speed, noise-immune data exchange with ABB AC800M DCS controllers, ABB ACS880 variable frequency drives, and third-party PLC systems via gateway adapters. In multi-drive configurations, the SDCS-CON-81 can be coordinated through ABB’s DriveWindow or DriveAP application tools, allowing engineers to implement master-follower speed synchronization across multiple DC drive axes without additional hardware.

The SDCS-CON-81 is particularly valued in applications where motor field weakening, regenerative braking, and four-quadrant operation are required simultaneously — conditions common in winding machines, extruders, and large centrifugal compressors. Its onboard adaptive current control algorithm responds to load transients within milliseconds, protecting both the motor and the driven mechanical load from torque spikes that could cause mechanical damage or process interruption. The module also supports direct integration with ABB RINT-5513C or RINT-5514C communication adapter boards for PROFIBUS-DP or Modbus RTU connectivity, enabling seamless incorporation into existing plant-wide SCADA and DCS architectures.

For facilities operating in classified hazardous areas or near explosive atmospheres, the SDCS-CON-81 is typically installed within IP54 or IP65-rated control enclosures, paired with ABB’s SACE Emax 2 or Tmax XT series circuit breakers for upstream protection. In power generation and water treatment plants, where continuous availability is non-negotiable, the board’s proven MTBF and field-replaceable design make it the preferred spare part for maintenance engineers who cannot afford extended downtime. A single SDCS-CON-81 replacement can restore a DCS800 drive to full operation in under two hours, compared to weeks of lead time for OEM repair services.

In mining and mineral processing applications, the SDCS-CON-81 controls DC motors driving conveyor belts, crushers, and ball mills — equipment that operates around the clock under heavy dust loading and mechanical vibration. The board’s sealed connector interfaces and gold-plated edge contacts resist oxidation and fretting corrosion, maintaining signal integrity even after years of service in high-particulate environments. Similarly, in offshore oil and gas platforms and onshore petrochemical facilities, where salt spray, condensation, and hydrocarbon vapors are constant concerns, the conformal-coated SDCS-CON-81 provides a level of environmental protection that extends service intervals and reduces unplanned maintenance events.

TOPNLMS maintains verified stock of the SDCS-CON-81 3ADT314900R1002, sourced through authorized industrial distribution channels. Every unit undergoes incoming inspection including visual examination, functional power-on verification, and communication interface testing before dispatch. Units are shipped in anti-static packaging with foam cushioning to prevent transit damage, and are accompanied by a test report upon request. Standard dispatch is within 2–5 business days from Xiamen, China, with DHL Express, FedEx International Priority, and UPS Worldwide Expedited available for time-critical procurement needs.

Rugged Specifications Table

Comprehensive Protection Solutions

The SDCS-CON-81 does not operate in isolation — it is the command center of a carefully engineered drive system. The SDCS-POW-1 auxiliary power supply board provides the regulated 24 VDC logic power that keeps the control board operational even during main power fluctuations, while the SDCS-FEX-2 field excitation module works in tandem with the SDCS-CON-81 to precisely regulate motor field current, enabling smooth field weakening and controlled deceleration. For applications requiring expanded digital and analog I/O, the SDCS-IOB-3 I/O expansion board connects directly to the control module, adding relay outputs, analog inputs, and encoder feedback channels without external signal conditioning hardware.

In control cabinets where multiple drive axes must be coordinated, the SDCS-CON-81 communicates with ABB AC800M process controllers via DDCS fiber links, eliminating ground loop interference that would otherwise corrupt speed reference signals in high-current environments. For legacy plant integrations, the RINT-5513C PROFIBUS-DP adapter or RINT-5514C Modbus RTU adapter mounts directly onto the SDCS-CON-81, providing protocol translation without additional gateway hardware. Upstream protection is typically provided by ABB SACE Tmax XT or Emax 2 series molded-case circuit breakers, which coordinate with the drive’s internal overcurrent protection to provide selective fault isolation. In safety-critical applications, ABB’s Pluto safety PLC or a third-party safety relay module monitors the drive’s enable and fault relay outputs, ensuring that a drive fault triggers a controlled safe-state response across the entire machine.

For power quality and harmonic mitigation in facilities with sensitive instrumentation, the DCS800 system incorporating the SDCS-CON-81 is often paired with ABB’s REF615 feeder protection relay and line reactors, protecting both the drive and the upstream distribution network. Terminal modules from ABB’s Entrelec or Phoenix Contact series are commonly used within the same control cabinet to provide organized, vibration-resistant wiring termination for the SDCS-CON-81’s analog and digital signal cables.

Application in Critical Infrastructure

In steel and aluminum rolling mills, the SDCS-CON-81 controls the main DC mill motors that drive roughing stands, finishing stands, and coiler drives — applications where speed accuracy within ±0.01% and torque response within 5 milliseconds are production requirements, not aspirations. A single unplanned drive outage in a continuous casting line can result in tens of thousands of dollars in scrapped material and lost production per hour, making the availability of verified spare SDCS-CON-81 boards a critical element of any maintenance strategy.

In underground mining operations, the SDCS-CON-81 drives hoist motors that lift personnel and ore through shafts hundreds of meters deep. These applications demand not only precise speed control but also fail-safe behavior on power loss — a requirement the DCS800 platform meets through its integrated regenerative braking capability, which the SDCS-CON-81 manages in real time. In coal preparation plants and mineral processing facilities, where explosive dust atmospheres may be present in adjacent areas, the control cabinet housing the SDCS-CON-81 is typically rated to IP54 or higher, with positive-pressure purging in Zone 2 classified installations.

Water and wastewater treatment plants rely on DCS800 drives with SDCS-CON-81 control boards to operate large centrifugal pumps and aeration blowers continuously, often for years between scheduled maintenance intervals. The board’s low-maintenance design — no moving parts, no battery-backed memory requiring periodic replacement — aligns with the operational philosophy of utilities that prioritize long mean-time-between-failure and predictable maintenance schedules. In oil refinery and petrochemical plant applications, where process continuity is directly linked to product quality and safety compliance, the SDCS-CON-81’s proven reliability in high-temperature, high-humidity environments makes it the control board of choice for critical pump and compressor drives.

Security & Quality FAQ

Q: What does the 12-month warranty cover, and how is a warranty claim processed?
A: The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a unit fails within the warranty period, TOPNLMS will provide a replacement unit or full refund after fault verification. Customers are asked to contact [email protected] with the order reference and a description of the fault; our technical team will guide the return and replacement process with minimal delay.

Q: How is each SDCS-CON-81 unit tested before shipment?
A: Every unit undergoes a multi-stage incoming inspection: visual examination for physical damage, connector integrity check, power-on functional verification, and communication interface test. Units that do not pass all inspection stages are quarantined and not offered for sale. A test report is available upon request for customers with documentation requirements.

Q: Is the SDCS-CON-81 3ADT314900R1002 compatible with all DCS800 drive frame sizes?
A: Yes. The SDCS-CON-81 is the standard main control board across the DCS800 drive family, compatible with all frame sizes from DCS800-S01 through DCS800-S07. It is a direct plug-in replacement for any DCS800 drive requiring control board renewal, with no firmware re-flashing required in most cases. For drives with customized application programs, TOPNLMS recommends backing up the existing parameter set via DriveWindow before board replacement.

Q: Can TOPNLMS support long-term or repeat procurement of the SDCS-CON-81?
A: Yes. TOPNLMS maintains ongoing stock of the SDCS-CON-81 and other DCS800 series spare parts to support customers with planned maintenance programs, annual spare parts budgets, and emergency replacement needs. Customers operating multiple DCS800 drives are encouraged to contact us to discuss volume pricing, reserved stock arrangements, and priority dispatch agreements that ensure parts availability when they are needed most.
