ABB SDCS-CON-2B 3ADT309600R0012 DCS Series Upgrade

Product Overview

ABB SDCS-CON-2B 3ADT309600R0012 DCS Series Upgrade: Smooth Transition from Legacy DC Drive Systems

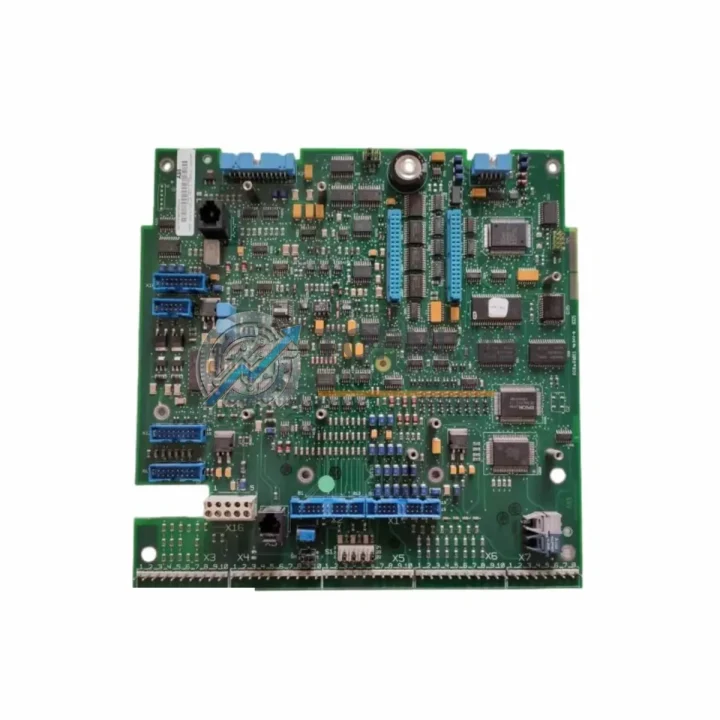

The ABB SDCS-CON-2B (part number 3ADT309600R0012) is the control board at the heart of ABB’s DCS Series DC drive platform — a proven architecture deployed across steel mills, paper machines, extruders, winding lines, and heavy-duty process equipment worldwide. As legacy DCS400, DCS500, and DCS600 drive systems age beyond their service life, the SDCS-CON-2B remains the most critical component for restoring full drive functionality without a complete system overhaul. This page is designed to help engineers, maintenance teams, and procurement managers evaluate the SDCS-CON-2B as a direct replacement or upgrade path for failed or end-of-life control boards in existing ABB DC drive installations.

When a DCS Series drive trips on a control board fault — whether due to component aging, moisture ingress, thermal stress, or firmware corruption — the fastest recovery path is a verified replacement SDCS-CON-2B board. Unlike a full drive replacement, swapping the control board preserves the existing SDCS-POW-1 power board, the SDCS-IOB-3 I/O board, the field excitation circuit, and the existing motor cabling and armature connections. This dramatically reduces downtime, eliminates the need to re-engineer the control cabinet, and avoids costly motor rewiring or transformer changes.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful SDCS-CON-2B replacement is rarely a standalone action — it is part of a broader drive system restoration or modernization effort. In most field scenarios, the control board failure is accompanied by degraded performance in adjacent components. During the retrofit process, engineers commonly evaluate the SDCS-POW-1 power supply board, which provides the 24 VDC logic supply to the control board and whose capacitors and rectifier circuits are subject to the same aging cycle. If the SDCS-POW-1 shows signs of ripple or voltage instability, replacing it alongside the SDCS-CON-2B eliminates a second unplanned outage.

The SDCS-IOB-3 I/O expansion board connects directly to the SDCS-CON-2B and handles analog speed references, digital start/stop commands, and relay outputs to the control cabinet. In systems where the I/O board has accumulated years of vibration and thermal cycling, a simultaneous inspection — and replacement if necessary — ensures that the restored control board receives clean, reliable signals from the process. Similarly, the SDCS-COM-5 PROFIBUS-DP communication adapter, which plugs into the control board’s fieldbus slot, should be verified for firmware compatibility when upgrading to a newer SDCS-CON-2B revision.

For sites running PROFIBUS-DP or Modbus RTU networks, the SDCS-COM-1 communication module provides the physical and protocol interface between the DCS drive and the plant’s PLC or DCS host — typically a Siemens S7-300, S7-400, or ABB AC500 controller. Verifying that the SDCS-COM-1 node address and baud rate settings are preserved during the board swap prevents network conflicts during commissioning. In some installations, a NPBA-12 PROFIBUS adapter or an NMBА-01 Modbus adapter is used instead, and these remain fully compatible with the replacement SDCS-CON-2B.

On the field excitation side, the SDCS-FEX-2 field excitation module operates independently of the control board but receives enable and reference signals from it. After a control board replacement, the field current reference and the field weakening curve must be re-verified against the motor nameplate data. This is typically done using ABB’s DriveWindow PC tool connected via the SDCS-CON-2B’s RS-232 service port or via the DDCS fiber optic link if the drive is part of a multi-drive system using the NDBU-95 branching unit.

For cabinet-level integration, the SNAT 7600 TAI analog I/O terminal board and SNAT 7610 DI/O digital I/O terminal board are commonly found in the same control cabinet as DCS Series drives. These terminal boards interface with the plant’s field instruments and actuators and are unaffected by the SDCS-CON-2B replacement, but their wiring should be documented before any board swap to ensure correct signal restoration during recommissioning.

Retrofit Guidance FAQ

Q: Can I replace the SDCS-CON-2B without rewiring the motor or armature connections?
A: Yes. The SDCS-CON-2B is a control board only — it does not carry armature current. All power connections remain on the SDCS-POW-1 and the drive’s thyristor bridge. The board swap requires only disconnecting the ribbon cables and connectors between the control board and the I/O board, power board, and communication adapter.

Q: Do I need to re-enter all drive parameters after replacing the board?
A: If the original parameters were saved using ABB DriveWindow or backed up to the optional SDCS-MEM-8 memory module, they can be restored directly after the board swap. If no backup exists, parameters must be re-entered manually from the drive’s commissioning record or motor nameplate data.

Q: Is the SDCS-CON-2B compatible with both DCS500 and DCS600 drives?
A: The SDCS-CON-2B is the standard control board for the DCS Series platform. Compatibility with specific drive ratings (DCS401, DCS501, DCS601 and their variants) should be confirmed against the drive’s hardware revision and the board’s firmware version. Our technical team can assist with cross-referencing before shipment.

Q: What communication protocols does the replacement board support?
A: The SDCS-CON-2B supports PROFIBUS-DP, DeviceNet, Modbus RTU, and CANopen via the corresponding SDCS-COM adapter modules. The board’s internal RS-232 port supports direct PC connection for commissioning and diagnostics using DriveWindow.

Q: How much physical space does the board swap require?
A: The SDCS-CON-2B uses the same PCB form factor and connector layout as the original board. No cabinet modifications, additional DIN rail space, or new mounting hardware are required. The swap can typically be completed within a planned maintenance window of 2–4 hours including parameter restore and test run.

Q: Can the replacement board be used in a multi-drive DDCS system?
A: Yes. The SDCS-CON-2B supports ABB’s DDCS (Distributed Drive Control System) fiber optic protocol, allowing it to operate as a follower drive in a master-follower configuration using the NDBU-95 branching unit. DDCS node addressing is configured via DriveWindow after the board replacement.

Warranty Assurance

Every SDCS-CON-2B 3ADT309600R0012 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each board undergoes functional verification including power-on self-test, communication interface check, and visual inspection for component integrity. Boards are shipped in anti-static packaging with protective foam inserts to prevent transit damage.

If a board is found to be defective on arrival or fails within the warranty period under normal operating conditions, TOPNLMS will arrange a replacement or repair at no additional cost. Our after-sales response target is within 24 hours of a warranty claim submission. We maintain stock of SDCS-CON-2B and related DCS Series components to support rapid replacement dispatch, minimizing the impact of any warranty event on your production schedule.

For procurement teams, we can provide a proforma invoice, packing list, and certificate of conformity upon request. Shipment is from Xiamen, China, via DHL Express, FedEx, or UPS, with typical transit times of 3–7 business days to most destinations. Bulk orders and long-term supply agreements are available for MRO and spare parts programs.
