ABB SAFT185TBC Replacement for DCS DC Drive Series: Smooth Transition & Legacy System Compatibility

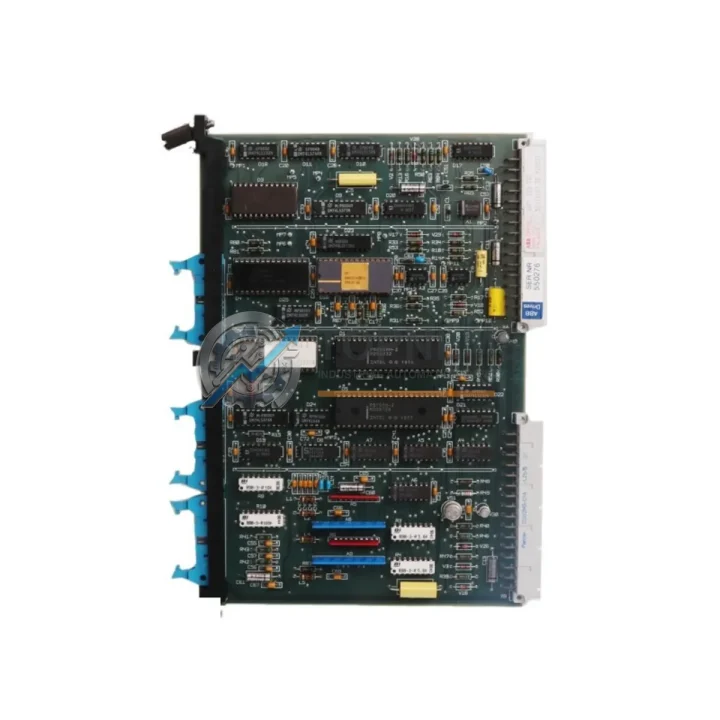

The ABB SAFT185TBC is a thyristor control board originally designed for ABB’s DCS series DC drive systems — a platform widely deployed across steel mills, paper machines, extruders, winding lines, and heavy industrial processes. As ABB has progressively phased out legacy DCS500 and DCS400 drive components, sourcing a verified SAFT185TBC replacement has become a critical procurement challenge for maintenance engineers and plant managers worldwide. TOPNLMS maintains ready stock of the SAFT185TBC to support your retrofit, emergency replacement, or planned upgrade program with minimal disruption to production.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful SAFT185TBC replacement rarely happens in isolation. In most DCS DC drive retrofit projects, engineers simultaneously address adjacent components to ensure system-wide reliability. During the board swap, it is common practice to inspect and replace the SDCS-CON-2 control board, which handles the higher-level speed and current loop logic that works in tandem with the SAFT185TBC thyristor firing stage. If the drive’s power supply section shows signs of aging, the RINT5511C rectifier interface board or the SAFT188TBC gate driver board may also require attention at the same time to avoid a secondary failure shortly after the primary repair.

For sites running multiple DCS500 drives in a coordinated line — such as a multi-stand rolling mill or a multi-motor winding system — the SDCS-PIN-51 pulse isolation board and SDCS-FEX-2 field excitation module are frequently part of the same maintenance window. Replacing these components together reduces the total number of planned shutdowns and lowers the cumulative risk of unplanned downtime over the following 12–24 months.

On the communication and supervisory side, many legacy DCS installations use the RDCO-02 DDCS fiber optic communication module to link the drive to a higher-level PLC or DCS controller — typically an ABB AC500 PLC, a Siemens S7-300, or an older Bailey INFI 90 DCS node. If your site is migrating from a Bailey or Freelance DCS platform to a modern ABB Ability™ or AC500-based architecture, the SAFT185TBC replacement can be executed independently of the controller migration, allowing you to stabilize the drive layer first before tackling the supervisory layer. This phased approach is strongly recommended for continuous-process industries where a full system cutover is not operationally feasible.

For installations where the drive cabinet also houses an ABB ACS800 or ACS880 AC drive alongside legacy DC drives, the SAFT185TBC replacement provides an opportunity to audit the shared DC bus components, including the BAMU-01 bus adapter module and any shared SNAT617 power supply boards, ensuring the mixed-drive cabinet remains stable after the repair.

Retrofit Guidance FAQ

Q: Does replacing the SAFT185TBC require re-parameterization of the DCS drive?
A: In most cases, no. The SAFT185TBC is a thyristor firing board; drive parameters are stored in the SDCS-CON-2 control board’s non-volatile memory. As long as the control board is not replaced simultaneously, all motor tuning, current limits, and speed references are retained. Always back up drive parameters via the DriveWindow or DriveStudio tool before any board swap as a precaution.

Q: Is the wiring harness compatible with the replacement board?
A: Yes. The SAFT185TBC uses the same OEM connector layout as earlier revisions. No rewiring is required. Inspect the ribbon cable and edge connector for oxidation or mechanical damage before reinstallation.

Q: What communication protocols does the DCS500 platform support after this replacement?
A: The DCS500 platform supports DDCS (ABB’s proprietary fiber optic drive communication system), Profibus-DP via the RDPB-01 adapter, and Modbus RTU via the RMBA-01 adapter. The SAFT185TBC replacement does not affect the communication layer — protocol compatibility is determined by the adapter module fitted to the SDCS-CON-2 board.

Q: Can this board be installed in a cabinet with limited space?
A: The SAFT185TBC is a direct form-factor replacement for the DCS drive card cage. No additional mounting hardware, spacers, or cabinet modifications are required. Ensure adequate clearance for airflow around the thyristor stack after reinstallation.

Q: How do I verify the board is functioning correctly after installation?
A: Power up the drive in a no-load condition and monitor the thyristor firing angle feedback via the drive’s diagnostic display or DriveStudio software. Confirm that current feedback signals are within expected range before reconnecting the motor load. TOPNLMS recommends a 30-minute burn-in test at reduced load before returning the drive to full production duty.

Warranty Assurance

Every SAFT185TBC unit shipped by TOPNLMS is covered by a 12-Month Warranty from the date of delivery. Prior to shipment, each board undergoes a multi-point inspection including visual examination for component damage, connector integrity verification, and functional bench testing where applicable. Units are packed in anti-static ESD-safe packaging with foam cushioning to prevent transit damage.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response time is within 24 business hours. We support customers across Asia-Pacific, Europe, the Middle East, and the Americas, with DHL Express and FedEx International Priority shipping available for urgent requirements.

For bulk procurement, long-term maintenance contracts, or multi-site spare parts programs, please contact our industrial automation team directly to discuss pricing, lead times, and consignment stock arrangements.
