ABB SAFT123PAC Replacement for DCS 600 / DRIVET Series

Product Overview

ABB SAFT123PAC Replacement for DCS 600 / DRIVET Series: Seamless Transition & Legacy System Upgrade

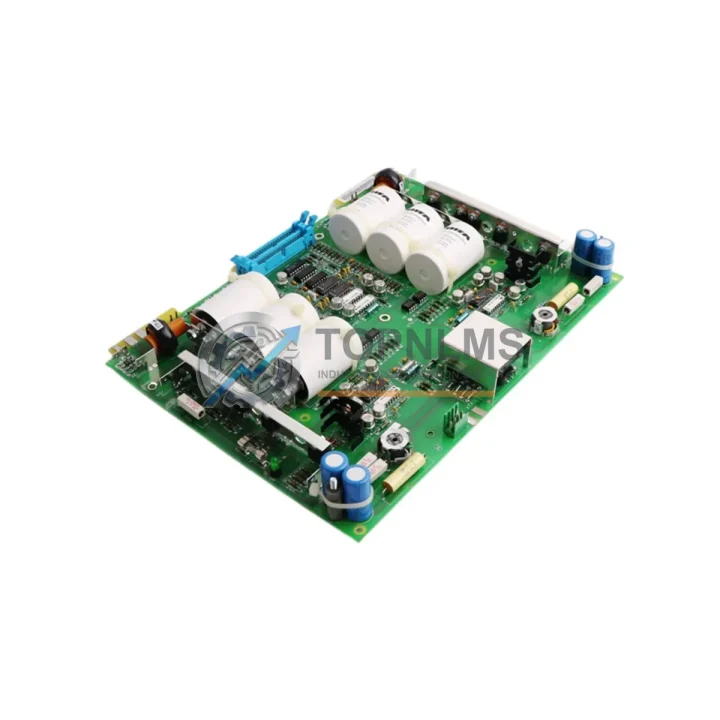

The ABB SAFT123PAC Amplifier Pulse Board is a critical feedback and firing control component within the ABB DCS 600 and DRIVET DC drive platform. As legacy DCS 600 drive systems age and original SAFT123PAC boards reach end-of-life or become increasingly difficult to source, plant engineers and procurement teams face mounting pressure to restore drive functionality with minimal disruption to production. TOPNLMS stocks verified SAFT123PAC units ready for immediate dispatch, supporting both emergency replacement and planned modernization programs across a wide range of industrial DC drive applications.

The SAFT123PAC serves as the pulse amplifier interface between the drive controller board and the thyristor firing circuits in the DCS 600 converter bridge. Its role in synchronizing gate pulses to the thyristor stack makes it indispensable for stable torque and speed regulation in demanding applications such as paper machine drives, rolling mill main drives, crane hoisting systems, and extruder lines. When this board fails, the entire drive is rendered inoperative — making fast, reliable replacement sourcing a top operational priority.

For sites running the ABB DCS 600 platform, the SAFT123PAC is typically installed alongside companion boards including the SDCS-CON-4 main control board, the SDCS-POW-4 power supply board, and the SDCS-IOB-3 I/O extension board. In older DRIVET-series cabinets, it may coexist with SAFT120C or SAFT122C interface boards. Our replacement units are dimensionally and electrically identical to the original, fitting directly into the existing DIN-rail or backplane mounting position without modification to the control cabinet layout.

Wiring compatibility is a primary concern during any board swap. The SAFT123PAC uses a standardized connector pinout consistent across the DCS 600 product family, meaning all existing signal cables, gate pulse leads, and synchronization wiring can be reconnected directly to the replacement board without re-termination or re-labeling. This eliminates a significant source of commissioning error and reduces the time the drive is offline. Engineers familiar with ABB’s SDCS connector system will find the replacement process straightforward and fully reversible.

From a software and programming perspective, the SAFT123PAC is a hardware-only board with no firmware or parameter storage. Drive parameters stored in the SDCS-CON-4 controller — including speed reference scaling, current limits, field weakening curves, and communication node addresses — are unaffected by the board replacement. There is no need to re-upload drive programs or reconfigure the CDP312R control panel after installation. This makes the SAFT123PAC one of the lowest-risk components to replace in the DCS 600 architecture.

Communication protocol continuity is equally preserved. Whether the DCS 600 system communicates via PROFIBUS-DP through an NDPA-02 adapter, Modbus RTU, or ABB’s proprietary DDCS fiber-optic link to a higher-level AC800M or Advant OCS controller, the SAFT123PAC replacement has no impact on the fieldbus configuration. The drive will resume its existing communication role immediately upon restart, with no changes required at the PLC or DCS supervisory level.

For facilities managing a broader modernization roadmap, the SAFT123PAC replacement can serve as a bridge solution while a full drive upgrade to the ABB DCS880 platform is planned. The DCS880 is the designated successor to the DCS 600 family, offering enhanced diagnostics, wider supply voltage tolerance, and native Ethernet connectivity. However, a full drive replacement requires significant cabinet rework, motor cable re-routing, and control system re-engineering. Replacing the SAFT123PAC extends the operational life of the existing DCS 600 cabinet, buying engineering teams the time needed to plan a structured migration without emergency downtime pressure.

Procurement teams will note that TOPNLMS maintains stock of SAFT123PAC boards that have been visually inspected, functionally tested on a dedicated DCS 600 test rig, and verified against ABB’s original specification. Each unit ships with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Orders placed before the daily cut-off are dispatched the same business day from our Xiamen warehouse, with DHL Express, FedEx International Priority, and sea freight consolidation available depending on urgency and destination.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DCS 600 drive restoration or modernization rarely involves a single component. In most field scenarios, the SAFT123PAC replacement is carried out alongside inspection or replacement of adjacent boards and accessories. The SDCS-CON-4 main control board is the most common companion replacement, as it shares the same backplane and is subject to similar aging mechanisms including capacitor degradation and EEPROM wear. The SDCS-POW-4 power supply board should also be evaluated during any planned maintenance window, as a failing power supply can cause intermittent SAFT123PAC faults that are misdiagnosed as pulse board failures.

For sites where the DCS 600 communicates with a Siemens S7-300 or S7-400 PLC via PROFIBUS-DP, the NDPA-02 PROFIBUS adapter module is a frequently co-ordered item, particularly when the existing adapter shows communication timeout faults after the drive is restarted. Similarly, facilities integrating the DCS 600 into an ABB System 800xA or Advant OCS environment via DDCS fiber-optic links may require inspection of the SDCS-AMC-DC fiber interface board to ensure signal integrity is maintained after the pulse board swap.

In cabinet installations where the DCS 600 drives multiple motor sections, the SDCS-IOB-3 I/O extension board provides the additional analog and digital I/O channels needed for speed feedback, external fault inputs, and auxiliary relay outputs. Customers upgrading from older DRIVET cabinets often find that the SDCS-IOB-3 replaces multiple discrete relay boards, simplifying the cabinet layout while maintaining full I/O compatibility with existing field wiring. The CDP312R control panel, used for local parameter access and fault diagnostics, is another item frequently requested alongside the SAFT123PAC, as panel failures are common in high-vibration or high-humidity environments.

For customers planning a phased migration toward the DCS880 platform, TOPNLMS can supply DCS880 converter modules, SDCS-CON-4 to DCS880 parameter migration guides, and compatible PROFIBUS or EtherNet/IP communication adapters to support a structured cutover. Encoder feedback modules and pulse encoder interface cards compatible with both the DCS 600 and DCS880 platforms are also available, allowing the existing motor feedback wiring to be retained during the transition period.

Retrofit Guidance FAQ

Q: Can I replace the SAFT123PAC without powering down the entire drive cabinet?
A: No. The SAFT123PAC must be replaced with the drive fully de-energized and the DC bus discharged. Follow ABB’s DCS 600 Hardware Manual lockout/tagout procedure before removing the board. Capacitor discharge time after main power removal is typically 5 minutes for standard DCS 600 converter sizes.

Q: Will I need to re-enter drive parameters after replacing the SAFT123PAC?
A: No. The SAFT123PAC stores no drive parameters. All application data, speed references, current limits, and communication settings remain in the SDCS-CON-4 controller memory and are unaffected by the board swap.

Q: Is the SAFT123PAC compatible with all DCS 600 converter frame sizes?
A: The SAFT123PAC is used across multiple DCS 600 frame sizes. However, some larger converter frames use a different pulse amplifier variant. Please confirm your drive’s frame size and existing board label before ordering to ensure exact compatibility.

Q: My DRIVET cabinet uses a SAFT122C — can the SAFT123PAC replace it?
A: The SAFT122C and SAFT123PAC share similar functions but have different connector configurations. A direct swap is not always possible without verifying the backplane connector layout. Contact TOPNLMS with your cabinet serial number for a compatibility assessment.

Q: How do I verify the SAFT123PAC is the faulty component before ordering?
A: Common fault indicators include thyristor firing faults (F507, F508 in DCS 600 fault history), asymmetric phase currents, and drive trips at low load. Swapping the SAFT123PAC is a standard diagnostic step after ruling out thyristor and transformer faults. TOPNLMS can advise on fault code interpretation if you share your drive’s fault log.

Q: What communication protocols are supported after the replacement?
A: The SAFT123PAC replacement has no impact on the drive’s communication configuration. PROFIBUS-DP, Modbus RTU, DDCS fiber-optic, and DeviceNet (via optional adapters) all continue to operate without reconfiguration.

Warranty Assurance

Every SAFT123PAC unit supplied by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each board undergoes a multi-stage inspection process: visual examination for physical damage, component-level verification against ABB’s original BOM, and functional testing on a dedicated DCS 600 drive test rig under load conditions. Units that do not pass all test stages are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period, subject to inspection of the returned board. Our technical team is available via email and phone to assist with installation questions, fault diagnosis, and commissioning support at no additional charge. Replacement boards for warranty claims are dispatched within one business day of claim approval, minimizing production downtime for our customers.

For procurement teams requiring documentation, TOPNLMS can provide a Certificate of Conformity, packing list, and commercial invoice with HS code declaration for customs clearance. Bulk orders and standing purchase agreements are available for MRO departments managing multi-site DCS 600 fleets.
