ABB RTAC-01 Replacement for ACS800 ACS600 Series

Product Overview

ABB RTAC-01 Replacement for ACS800 ACS600 Series: Smooth Transition & Legacy System Compatibility

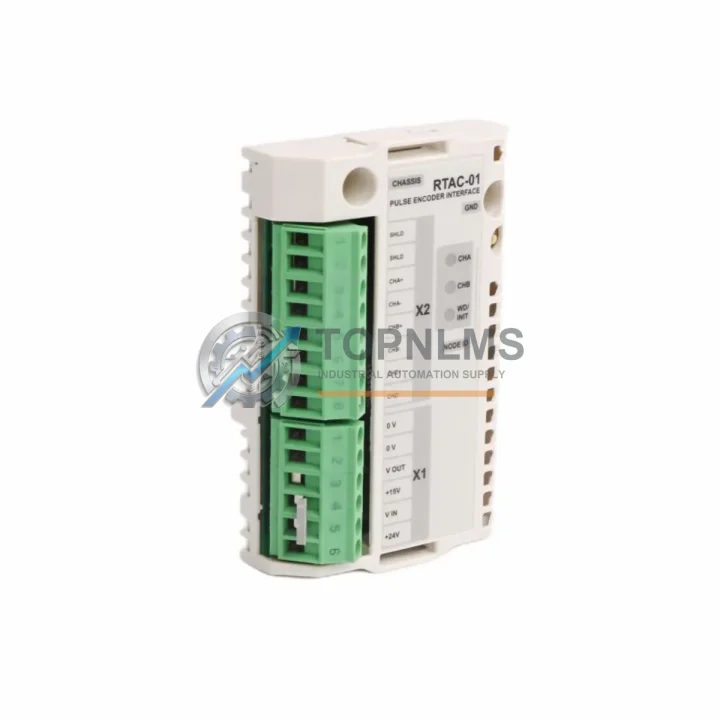

The ABB RTAC-01 is a dedicated encoder interface module designed for integration with ABB ACS800 and ACS600 series variable frequency drives. As legacy drive systems age and original RTAC-01 units reach end-of-life or become increasingly difficult to source, plant engineers and procurement teams face mounting pressure to restore drive functionality with minimal disruption to production. TOPNLMS supplies verified RTAC-01 replacement units with full compatibility testing, enabling a seamless retrofit without requiring drive firmware changes, rewiring of encoder feedback circuits, or modifications to the existing control cabinet layout.

The RTAC-01 mounts directly onto the ACS800 drive’s option slot, interfacing with incremental encoders to provide closed-loop speed and position feedback. This closed-loop configuration is critical in applications such as overhead cranes, winding machines, extruders, and high-precision conveyor systems where open-loop torque control is insufficient. When the original RTAC-01 fails or becomes unavailable, the entire drive’s closed-loop performance is compromised. A verified replacement unit from TOPNLMS restores full encoder feedback capability without requiring a drive replacement or a costly system redesign.

For sites running ACS800 multi-drive cabinets, the RTAC-01 is typically installed alongside other option modules such as the RDCO-02 or RDCO-03 DriveWindow communication adapters, RAIO-01 analog I/O extension modules, and RDIO-01 digital I/O modules. These modules share the same option slot architecture, and replacing the RTAC-01 does not affect the configuration or wiring of adjacent modules. Engineers familiar with the ACS800 option board installation procedure will find the RTAC-01 replacement process straightforward: power down the drive, discharge the DC bus, remove the faulty module from its slot, seat the replacement unit, and restore power. No special tools or drive re-parameterization are required beyond verifying encoder pulse count parameters in the drive’s parameter group 50.

Sites operating older ACS600 drives with RTAC-01 encoder feedback will find that the same module is compatible across both platforms, reducing the need to maintain separate spare part inventories for mixed-generation drive fleets. This cross-series compatibility is a significant advantage for facilities that have progressively upgraded from ACS600 to ACS800 drives while retaining legacy equipment in non-critical applications. The RTAC-01 supports standard incremental encoders with A, B, and Z pulse outputs, and is compatible with encoder supply voltages of 5 V and 15 V, covering the majority of industrial encoder types used in ABB drive applications.

When planning a broader drive system modernization, the RTAC-01 replacement is often the first step before a full migration to the ACS880 platform. In such migration projects, the RTAC-01 is typically replaced in parallel with upgrading the RDCO-03 communication module to an FDCO-02 for DDCS fiber-optic communication, and transitioning I/O wiring from the RAIO-01 to the FAIO-01 analog I/O module compatible with the ACS880 option board architecture. For sites using PROFIBUS DP communication, the RPBA-01 PROFIBUS adapter module may also be part of the upgrade scope. TOPNLMS maintains stock of these associated modules to support complete drive retrofit projects rather than single-component replacements.

For facilities managing a large installed base of ACS800 drives, maintaining a buffer stock of RTAC-01 units is a standard practice to avoid unplanned downtime. TOPNLMS offers volume procurement support with lead times confirmed at order placement, allowing maintenance teams to build strategic spare part inventories without committing to excessive upfront capital. Each unit shipped by TOPNLMS undergoes functional verification prior to dispatch, including encoder signal simulation testing to confirm pulse output integrity across all channels.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful RTAC-01 replacement is rarely a standalone action. In most ACS800 retrofit projects, the encoder interface module is replaced as part of a coordinated upgrade that also addresses communication, I/O, and power supply integrity. For drives using PROFIBUS DP fieldbus communication, the RPBA-01 PROFIBUS adapter is typically inspected and replaced alongside the RTAC-01 to ensure fieldbus continuity after the maintenance window. Sites using DeviceNet will similarly review the RDNA-01 DeviceNet adapter module as part of the same service cycle.

For drives with analog speed reference inputs, the RAIO-01 analog I/O extension module is often serviced in parallel, particularly in applications where the analog reference signal has been subject to electrical noise or ground loop interference. In multi-drive systems using the RDCO-03 DriveWindow Link adapter for drive-to-drive communication over DDCS fiber optic cable, the fiber optic connections and the RDCO module itself should be inspected as part of the RTAC-01 replacement procedure to rule out communication faults that may have contributed to the encoder module failure.

For sites planning a full migration from ACS800 to ACS880, the RTAC-01 replacement can serve as an interim measure while the ACS880 migration is planned and budgeted. The ACS880 platform uses the FENC-01 or FENC-02 encoder interface modules, which are not backward compatible with ACS800 hardware but offer expanded encoder type support including HTL, TTL, and SinCos encoders. TOPNLMS can supply both RTAC-01 units for immediate ACS800 repairs and FENC-01 modules for ACS880 migration projects, allowing procurement teams to consolidate sourcing through a single supplier.

In control cabinet environments where the ACS800 drive is installed alongside an AC500 PLC or S800 I/O system for coordinated motion control, the RTAC-01 replacement should be coordinated with the PLC maintenance schedule to avoid unnecessary production interruptions. TOPNLMS also stocks common AC500 CPU modules and S800 I/O modules to support integrated drive-and-controller spare part procurement.

Retrofit Guidance FAQ

Q: Does replacing the RTAC-01 require any wiring changes to the encoder cable?
A: No. The RTAC-01 replacement unit uses the same D9 encoder connector and pin assignment as the original module. Existing encoder cables can be reconnected directly without modification.

Q: Will the drive need to be re-parameterized after installing the replacement RTAC-01?
A: In most cases, no. The drive’s encoder configuration parameters (Group 50) are stored in the drive’s memory and are not affected by replacing the RTAC-01 module. However, it is recommended to verify the encoder pulse count setting (parameter 50.01) and encoder signal type (parameter 50.02) after installation to confirm they match the connected encoder specifications.

Q: Is the RTAC-01 compatible with both ACS800 single drives and ACS800 multi-drive systems?
A: Yes. The RTAC-01 is compatible with both ACS800 single drive units and ACS800 multi-drive inverter modules. In multi-drive systems, each inverter unit requiring encoder feedback requires its own RTAC-01 module installed in the respective option slot.

Q: Can the RTAC-01 be used with third-party encoders not originally specified for the ACS800?
A: The RTAC-01 supports standard incremental encoders with A, B, and Z differential outputs operating at 5 V or 15 V supply voltage. Encoders meeting these specifications from any manufacturer are generally compatible, provided the pulse count is within the module’s supported range (up to 200 kHz input frequency).

Q: What is the physical installation procedure for the RTAC-01?
A: Power down the ACS800 drive and wait for the DC bus to fully discharge (minimum 5 minutes after power-off, verify with a voltmeter). Open the drive’s option module cover, align the RTAC-01 with the option slot connector, press firmly until the module seats fully, and secure with the retaining screw. Reconnect the encoder cable to the D9 connector on the module front panel. Restore power and verify encoder feedback signal in the drive’s diagnostic menu.

Q: How do I confirm the RTAC-01 is functioning correctly after installation?
A: Navigate to the ACS800 drive’s actual signals menu and monitor the encoder speed feedback value (typically displayed in parameter group 01). With the motor running at a known speed, the encoder feedback value should match the expected RPM within the encoder’s specified accuracy. Any discrepancy indicates a wiring issue or encoder pulse count mismatch.

Warranty Assurance

Every RTAC-01 replacement unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional verification process that includes encoder signal simulation testing across all input channels (A, B, Z differential pairs), supply voltage output verification at both 5 V and 15 V settings, and visual inspection of the option slot connector for pin integrity and contamination.

In the event of a warranty claim, TOPNLMS provides a replacement unit dispatch within 3 business days of claim confirmation, with return shipping of the defective unit arranged at TOPNLMS’s cost for orders above the minimum order value. For urgent production-critical situations, TOPNLMS can arrange priority dispatch with express courier service to minimize downtime exposure.

TOPNLMS ships globally from Xiamen, China, with standard export documentation including commercial invoice, packing list, and certificate of origin. For customers requiring additional documentation such as material safety data sheets or customs pre-clearance support, these can be arranged at the time of order placement. Payment terms, lead time confirmation, and volume pricing are available upon inquiry to the contact details below.
