ABB RDCU-12C 3AUA0000036521 Ruggedized Drive Control Unit

Product Overview

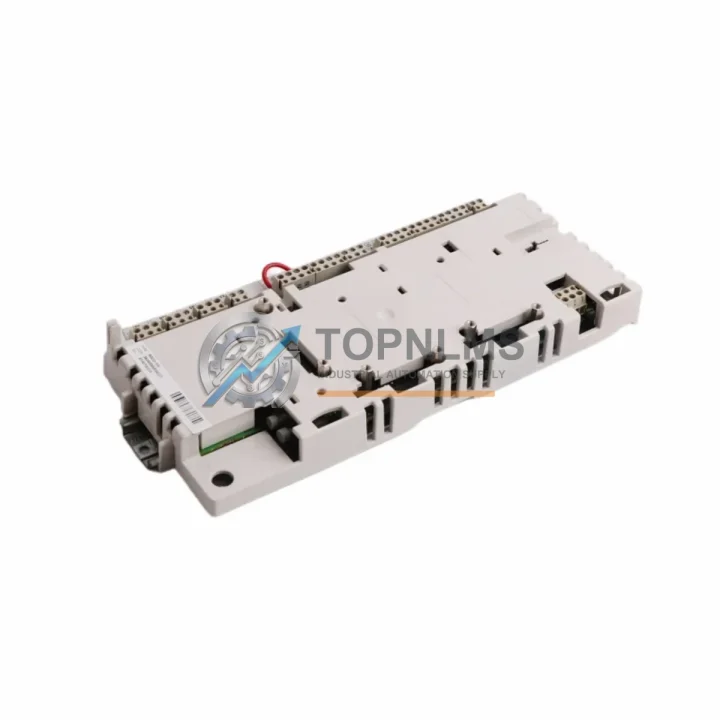

ABB RDCU-12C 3AUA0000036521 Ruggedized Drive Control Unit for Harsh Industrial Environments

The ABB RDCU-12C (part number 3AUA0000036521) is a high-performance drive control unit engineered for the ACS800 series of industrial AC drives. Designed to deliver uncompromising reliability in the most demanding operational environments, this module serves as the intelligence core of the ACS800 drive platform — managing motor control algorithms, fieldbus communication, I/O coordination, and real-time diagnostics under continuous industrial load.

Built to ABB’s rigorous industrial-grade standards, the RDCU-12C is rated for operation across wide temperature ranges, high-humidity conditions, and environments subject to vibration, mechanical shock, and electromagnetic interference (EMI). Whether deployed in a sealed control cabinet on an offshore oil platform, a dusty cement production line, or a high-cycle automotive stamping facility, this control unit maintains stable, deterministic performance where lesser components fail.

Rugged Specifications Table

Comprehensive Protection Solutions

The RDCU-12C does not operate in isolation — it is the command center of a tightly integrated drive system. In a typical ACS800 installation, the RDCU-12C works in concert with the RMIO-11 I/O and motor control board, which handles analog speed references, digital start/stop commands, and fault relay outputs. The RDCU-12C communicates with the RMIO board via a high-speed internal bus, ensuring sub-millisecond response to process changes on the production floor.

For fieldbus connectivity, the RDCU-12C supports the DDCS fiber-optic protocol natively, enabling noise-immune communication over long cable runs in electrically hostile environments such as steel mills or high-voltage switchgear rooms. When PROFIBUS DP integration is required — common in Siemens S7-300 or S7-400 PLC architectures — the RPBA-01 PROFIBUS adapter module slots directly into the RDCU-12C’s option slot, providing seamless network participation without additional gateways.

In safety-critical applications, the RDCU-12C is frequently paired with the ASTO-01 Safe Torque Off module, which provides SIL 2 / PLd-rated safe stop functionality compliant with IEC 62061 and ISO 13849-1. This combination is essential in machinery guarding applications where the drive must de-energize the motor shaft within defined reaction times upon safety gate opening or emergency stop activation.

Power quality and supply stability are maintained upstream by ABB’s NOCH-01 or NOCH-01 choke modules, which suppress harmonic distortion and protect the RDCU-12C’s power supply rails from voltage spikes common in heavy industrial grids. Downstream, the RDCU-12C’s motor control outputs connect to ruggedized terminal blocks and shielded motor cables rated for continuous VFD duty, minimizing reflected wave stress on motor windings.

For distributed control architectures, the RDCU-12C integrates naturally into ABB’s AC500 PLC ecosystem or third-party DCS platforms via its fieldbus adapters. In large process plants, multiple ACS800 drives — each governed by an RDCU-12C — may be coordinated by a central ABB 800xA DCS, with the RDCU-12C reporting real-time speed, torque, current, and fault data upstream for process optimization and predictive maintenance.

Application in Critical Infrastructure

In oil and gas upstream operations, the RDCU-12C governs ACS800 drives controlling high-pressure injection pumps, gas compressor trains, and wellhead artificial lift systems. These applications demand zero unplanned downtime — a single drive fault can halt production worth tens of thousands of dollars per hour. The RDCU-12C’s onboard adaptive motor control (AMC) algorithm continuously compensates for load variations, ensuring stable pump operation even as fluid viscosity and wellhead pressure fluctuate.

In underground mining, the RDCU-12C drives conveyor belt systems, ventilation fans, and hoist motors in environments characterized by coal dust, methane gas, and continuous mechanical vibration. Its fiber-optic DDCS communication eliminates ground loop interference from high-power mining equipment operating on the same electrical infrastructure.

Water and wastewater treatment facilities rely on the RDCU-12C to modulate the speed of centrifugal pumps and blower motors in response to flow demand signals from SCADA systems. Variable speed operation reduces energy consumption by up to 50% compared to fixed-speed alternatives, while the RDCU-12C’s precise torque control prevents water hammer events that can damage pipeline infrastructure.

In metals and steel production, the RDCU-12C controls rolling mill drives, ladle transfer cars, and fume extraction fans in environments where ambient temperatures regularly exceed 45°C and airborne metallic particulates are present. Its wide operating temperature range and sealed connector interfaces maintain reliable operation through shift changes and seasonal temperature extremes.

Power generation facilities — including thermal, hydro, and wind — use the RDCU-12C in auxiliary drive applications such as boiler feed pumps, cooling tower fans, and pitch control systems. The module’s fast fault detection and auto-restart capabilities minimize auxiliary system downtime during grid disturbances.

Security & Quality FAQ

Q1: What does the 12-month warranty cover?
All RDCU-12C units supplied by TOPNLMS carry a 12-month warranty from the date of shipment. Coverage includes manufacturing defects, component failure under normal operating conditions, and firmware-related malfunctions. In the event of a warranty claim, TOPNLMS provides advance replacement or repair at no additional cost, with technical support available throughout the process. Contact [email protected] to initiate a warranty claim.

Q2: How is each unit tested before shipment?
Every RDCU-12C undergoes a multi-stage pre-shipment inspection protocol: visual inspection for physical damage, board-level continuity testing, firmware version verification, and functional power-on testing where applicable. Units sourced from decommissioned systems are fully refurbished and re-tested to OEM performance benchmarks. A test report is available upon request for critical infrastructure procurement.

Q3: Is this unit compatible with all ACS800 drive variants?
The RDCU-12C is the standard control unit for the ACS800 single-drive series, including ACS800-01, ACS800-02, ACS800-04, ACS800-07, and ACS800-11 variants. Compatibility with ACS800 multidrive cabinet configurations should be verified against the specific drive’s hardware manual, as some multidrive topologies use the RDCU-12C in conjunction with inverter-specific interface boards. TOPNLMS technical staff can assist with compatibility verification prior to order placement.

Q4: Can TOPNLMS support long-term or repeat supply requirements?
Yes. TOPNLMS maintains standing inventory of high-demand ABB ACS800 series components, including the RDCU-12C, RMIO-11, AINT-02, APOW-01, and related drive boards. For MRO (maintenance, repair, and operations) customers requiring scheduled deliveries or blanket purchase orders, TOPNLMS offers priority allocation and dedicated account management. Inquiries for volume pricing and lead time commitments should be directed to [email protected] or +86 18359293191.
