ABB RDCU-02C 64607901E Replacement for ACS800 Series

Product Overview

ABB RDCU-02C 64607901E Replacement for ACS800 Series: Smooth Migration & Legacy Drive Upgrade

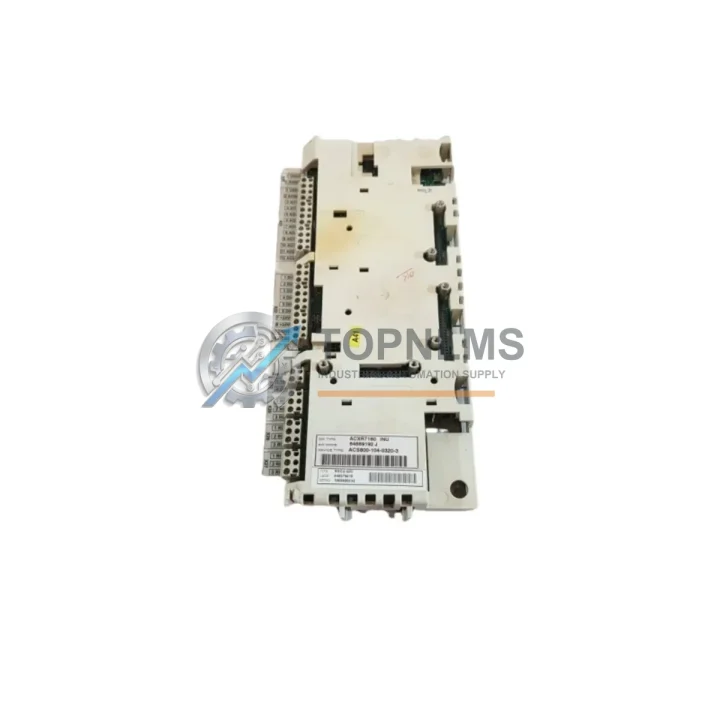

The ABB RDCU-02C (part number 64607901E) is the core drive control unit of the ACS800 series AC drives, responsible for motor control algorithms, fieldbus communication, I/O coordination, and real-time fault diagnostics. When an existing ACS800 installation experiences a failed or end-of-life RDCU-02C board, the entire drive becomes inoperable — halting production lines, compressors, pumps, fans, or conveyor systems that depend on it. This page is designed to help maintenance engineers, procurement teams, and system integrators source a verified replacement RDCU-02C-64607901E and execute a seamless retrofit with minimal downtime.

Whether you are migrating from an older ACS600 platform, replacing a failed board in an existing ACS800 cabinet, or consolidating spare parts inventory across multiple drive units, the RDCU-02C is a direct-fit solution that preserves your existing wiring harness, control panel connections, and DDCS fiber-optic communication topology without requiring software re-architecture.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful RDCU-02C replacement rarely involves the control board alone. In practice, field engineers performing an ACS800 drive retrofit or emergency repair will also evaluate the condition of surrounding components to prevent repeat failures and ensure system stability after the board swap.

The RDCO-02C Profibus-DP fieldbus adapter is the most commonly co-replaced component. Mounted directly onto the RDCU-02C, the RDCO-02C provides the Profibus interface between the ACS800 drive and the plant DCS or PLC — typically a Siemens S7-300, S7-400, or ABB AC500 controller. If the RDCO adapter shows communication faults or physical damage, replacing it alongside the RDCU-02C eliminates the risk of a second unplanned shutdown. Similarly, the RDCO-03C DeviceNet adapter is the preferred choice for installations integrated into Allen-Bradley ControlLogix or CompactLogix networks via DeviceNet.

For sites running multi-drive systems — such as ACS800-104 or ACS800-304 multi-drive cabinets — the APBU-44C branching unit distributes the DDCS fiber-optic signal from the master controller to multiple inverter units. A degraded APBU-44C can cause intermittent communication loss across all drives in the cabinet, so it is prudent to inspect and replace it during the same maintenance window as the RDCU-02C.

The RAIO-01C analog I/O extension module and RDIO-01C digital I/O extension module plug directly into the RDCU-02C’s expansion slots. These modules handle process feedback signals — 4–20 mA current loops, 0–10 V references, and digital interlocks from field sensors. If the original RDCU-02C failure was caused by a voltage surge or ground fault on the I/O wiring, the RAIO-01C and RDIO-01C should be tested and replaced as part of the same corrective action.

Control panel connectivity is maintained through the CDP312R Remote Control Panel or the newer ACS-CP-C panel, both of which interface with the RDCU-02C via the standard panel bus connector. These panels store drive parameters in their internal memory, enabling rapid parameter restoration after a board replacement without requiring a laptop or DriveWindow software on-site.

For sites migrating from the older ACS600 series — including ACS601, ACS604, and ACS607 drives — the RDCU-02C is part of the recommended upgrade path to the ACS800 platform. The ACS600 used the NAMC-11 or NAMC-03 control boards, which are now discontinued. Migrating to an ACS800 with RDCU-02C provides access to current firmware support, improved motor control algorithms (DTC — Direct Torque Control), and a wider range of fieldbus options through the RDCO adapter family.

Finally, for installations where the ACS800 drive is housed in a custom control cabinet alongside other automation hardware, the NPOW-41C auxiliary power supply module provides the 24 VDC backup power that keeps the RDCU-02C and its communication interfaces alive during a main power interruption — critical for applications where drive status must be reported to the DCS even during a power event.

Retrofit Guidance FAQ

Q: Can I replace the RDCU-02C without re-wiring the drive?
A: Yes. The RDCU-02C uses the same connector layout and board slot as all ACS800 control boards. The existing wiring harness, I/O terminal connections, and fiber-optic DDCS cables connect directly to the replacement board without modification.

Q: Do I need to re-enter all drive parameters after replacing the board?
A: Not necessarily. If parameters were previously saved to a CDP312R panel or via ABB DriveWindow software, they can be uploaded to the new RDCU-02C in minutes. We recommend backing up parameters before any board replacement as standard practice.

Q: Is the RDCU-02C compatible with Profibus, DeviceNet, and Modbus fieldbus systems?
A: The RDCU-02C itself does not include a fieldbus interface — communication protocol support is provided by the RDCO-0xC adapter mounted on the board. RDCO-01C supports Profibus-DP, RDCO-02C supports DeviceNet, RDCO-03C supports Modbus RTU, and RDCO-04C supports CANopen. The RDCU-02C is compatible with all RDCO variants.

Q: Will the replacement RDCU-02C fit in the same physical space in my control cabinet?
A: Yes. The RDCU-02C has an identical form factor to all ACS800 control boards. No mechanical modification to the drive chassis or cabinet is required.

Q: What is the typical commissioning time after installing a replacement RDCU-02C?
A: With parameters pre-loaded from a panel backup, commissioning typically takes 30–60 minutes including functional testing. For sites without a parameter backup, initial motor ID run and parameter setup may require 2–4 hours depending on application complexity.

Q: Can the RDCU-02C be used as a direct replacement for the RDCU-01C?
A: In most ACS800 applications, yes. The RDCU-02C is the successor to the RDCU-01C and offers enhanced diagnostic capabilities. Confirm compatibility with your specific drive frame size and firmware version before installation.

Warranty Assurance

Every RDCU-02C 64607901E unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes functional verification including power-on testing, communication interface checks, and visual inspection for physical defects. Units that do not pass our outgoing quality inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides replacement support with a target response time of 1 business day. Defective units returned within the warranty period will be replaced at no additional cost, subject to inspection confirming the fault is not caused by improper installation, electrical overstress, or physical damage outside normal operating conditions.

For procurement teams managing spare parts programs, TOPNLMS can provide batch testing documentation and unit-level serial number records upon request. We ship from Xiamen, China, with DHL Express, FedEx International Priority, and sea freight options available depending on order volume and urgency.
