ABB RBIP-01 3AUA0000030932 Replacement for RBIP Series

Product Overview

ABB RBIP-01 3AUA0000030932 Replacement for RBIP Series: Seamless Transition & Smooth System Upgrade

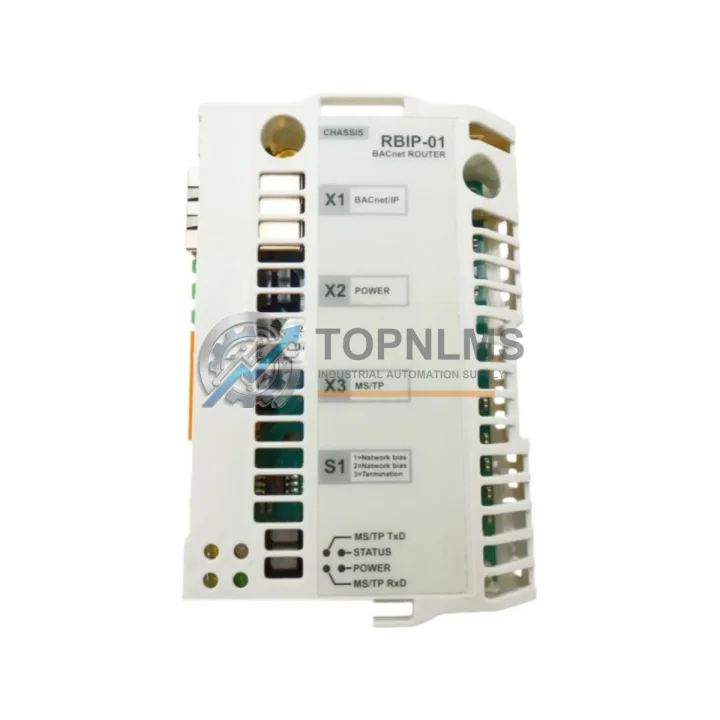

The ABB RBIP-01 (part number 3AUA0000030932) is a BACnet/IP drive communication module designed for integration with ABB ACS800, ACS880, and ACS580 series variable frequency drives. As legacy RBIP-01 units reach end-of-service life or become unavailable through standard distribution channels, plant engineers and procurement teams face increasing pressure to source verified replacements that maintain full protocol compatibility, preserve existing wiring infrastructure, and avoid costly reprogramming of building automation or process control systems.

This listing provides a direct, tested replacement for the RBIP-01 3AUA0000030932, sourced from verified supply channels and inspected prior to dispatch. Whether you are managing a planned upgrade, responding to an unplanned failure, or building a strategic spare-parts inventory, this module is ready to ship from our Xiamen warehouse with a 12-month warranty and full pre-shipment functional verification.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful RBIP-01 replacement rarely occurs in isolation. In most ACS800 or ACS880 installations, the BACnet/IP communication module works alongside a broader set of drive accessories and control infrastructure. During the upgrade or replacement process, engineers commonly review the condition of the RDCO-02 or RDCO-04 drive-to-drive communication adapter, which connects the option module to the drive’s internal bus. If the RDCO adapter shows signs of wear or firmware incompatibility, it is advisable to replace it concurrently to avoid a second maintenance window.

In multi-drive cabinet installations, the RBIP-01 typically shares a control enclosure with the RAIO-01 analog I/O extension module and the RDIO-01 digital I/O extension module, both of which plug into the same option slot architecture. Verifying the condition of these I/O modules during the RBIP-01 swap reduces the risk of cascading failures in HVAC or pump control applications where the drive is integrated into a BACnet building automation system.

For sites running ACS880 multi-drive systems, the BCU-02 or BCU-12 brake control unit and the ZCU-12 or ZCU-14 drive control unit are often present in the same cabinet. Procurement teams sourcing the RBIP-01 replacement frequently add these units to their spare-parts order to consolidate shipping and reduce future downtime exposure. Similarly, the DPMP-01 or DPMP-02 drive panel mounting kit may need to be re-evaluated if the control cabinet layout is being reorganized during the upgrade.

In applications where the ACS drive communicates with a Siemens S7-300 or S7-400 PLC via a gateway, or where the BACnet/IP network feeds into a Schneider Electric EcoStruxure Building Operation controller, the RBIP-01’s IP address, BACnet device instance, and object list must be re-entered into the BMS after module replacement. This process is straightforward and typically takes less than 30 minutes using the drive’s control panel or the ABB Drive Composer PC tool. No changes to the BACnet object mapping or the PLC program are required if the replacement module is configured with identical network parameters.

For sites that also operate ABB ACS550 or ACS355 drives with FENA-11 or FENA-21 Ethernet adapter modules, the RBIP-01 replacement project is a natural opportunity to audit the entire BACnet/IP device list on the network segment and update firmware across all communication adapters to ensure interoperability with modern BMS platforms.

Retrofit Guidance FAQ

Q: Can I reuse the existing Ethernet wiring and IP configuration?
Yes. The RBIP-01 3AUA0000030932 uses a standard RJ-45 interface. Existing Cat5e or Cat6 cabling can be reused. The IP address, subnet mask, gateway, and BACnet device instance are stored in the module’s non-volatile memory and must be re-entered after replacement — the drive itself does not store these parameters.

Q: Do I need to modify the PLC or BMS program after replacement?
No program changes are required if the replacement module is configured with the same BACnet device instance and object list as the original. The BACnet/IP protocol is stateless at the application layer, so the BMS will re-discover the drive automatically once the module is online.

Q: Is the physical installation a tool-free process?
Yes. The RBIP-01 slides into the drive’s option slot and is secured by a locking tab. No additional hardware or cabinet modification is required. The drive must be powered down before installation.

Q: What communication protocols does this module support beyond BACnet/IP?
The RBIP-01 is dedicated to BACnet/IP (ASHRAE 135). It does not support Modbus TCP, PROFINET, or EtherNet/IP. If your application requires multi-protocol support, consider the FENA-21 adapter, which supports BACnet/IP alongside Modbus TCP and EtherNet/IP on the same hardware.

Q: How do I verify the module is functioning correctly after installation?
Use the ABB Drive Composer PC tool or the drive’s control panel to confirm the option module status. The BMS should detect the BACnet device within 60 seconds of the drive powering up. LED indicators on the RBIP-01 provide real-time status for network link, BACnet communication activity, and module health.

Warranty Assurance

Every RBIP-01 3AUA0000030932 unit dispatched from TOPNLMS undergoes a pre-shipment functional inspection covering power-on self-test, option slot interface continuity, Ethernet port integrity, and firmware version verification. Units that do not pass inspection are not shipped.

All units are covered by a 12-month warranty from the date of delivery. The warranty covers functional defects arising under normal operating conditions. In the event of a confirmed defect, TOPNLMS will arrange a replacement unit or issue a refund, subject to return inspection. Warranty claims are processed within 5 business days of receiving the returned unit.

Standard shipping from our Xiamen warehouse is available via DHL Express, FedEx International Priority, and SF International, with typical transit times of 3–7 business days to most destinations. Expedited same-day dispatch is available for orders confirmed before 14:00 CST. Export documentation, including commercial invoice, packing list, and certificate of origin, is provided with every shipment.

For procurement inquiries, bulk pricing, or technical pre-sales support, contact our team directly.
