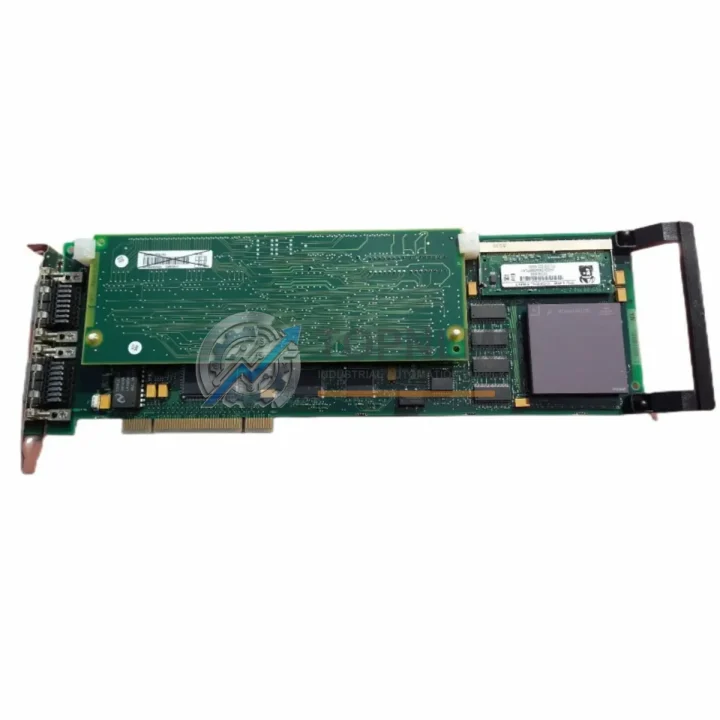

ABB PU515 3BSE013063R1 Replacement for AC 450 Series: Seamless DCS Migration & Upgrade

The ABB PU515 (3BSE013063R1) is a Real-Time Accelerator module designed for the ABB AC 450 Distributed Control System platform. As the AC 450 series approaches end-of-life and spare parts become increasingly scarce, plant engineers and procurement teams face mounting pressure to source verified replacement units that maintain system integrity without triggering a full DCS overhaul. TOPNLMS supplies tested, ready-to-ship PU515 3BSE013063R1 modules to support your migration, emergency replacement, or long-term spares strategy — with a 12-month warranty and documented pre-shipment inspection.

The PU515 functions as the real-time processing accelerator within the AC 450 controller rack, working in close coordination with the PM511 processor module and the SC510 communication controller. When a PU515 fails or becomes unavailable, the entire controller node is at risk of shutdown. Our stock allows you to restore operation quickly without waiting weeks for OEM lead times.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful AC 450 migration or emergency replacement rarely involves a single module. In most retrofit projects, the PU515 3BSE013063R1 is replaced as part of a broader effort to stabilize or extend the life of the AC 450 controller node. During the upgrade process, engineers typically also address the PM511 processor module, which handles the main application execution and must remain synchronized with the PU515 accelerator. If the PM511 is also aging or showing intermittent faults, replacing both simultaneously reduces the risk of a second unplanned outage.

The SC510 communication controller governs the MASTERBUS 300 fieldbus interface on the AC 450 platform. When migrating from an older AC 450 node to a modernized architecture, verifying SC510 compatibility ensures that existing field device wiring — including transmitters, valve positioners, and motor starters — continues to communicate without protocol conversion. In cases where the plant is transitioning to PROFIBUS DP or Modbus TCP, an additional communication gateway module may be introduced alongside the SC510 to bridge legacy and modern segments.

On the I/O side, the AC 450 typically interfaces with AI810, AO810, DI810, and DO810 I/O modules mounted in S800 I/O clusters. These modules connect to field instruments via terminal units such as the TB820 and TB840 terminal boards, which provide the physical screw-terminal wiring interface. During a PU515 replacement, it is good practice to inspect the condition of these terminal boards and I/O modules, as they share the same operational age and environmental exposure as the failed accelerator card.

Power integrity is another critical factor. The AC 450 rack relies on a PS501 or PS502 power supply module to deliver stable 24 VDC to all cards via the backplane. A degraded power supply can cause intermittent module faults that are misdiagnosed as processor or accelerator failures. Replacing the PU515 without verifying power supply health may result in repeat failures. TOPNLMS can supply PS501 and PS502 units from the same tested surplus inventory.

For sites planning a longer-term migration from AC 450 to the ABB System 800xA platform, the PU515 replacement serves as a bridge measure while the new AC800M PM891 controller and associated CI854 PROFIBUS DP communication interface are being commissioned in parallel. This phased approach keeps the existing process running on the AC 450 hardware while the new 800xA node is configured, tested, and validated offline — dramatically reducing the migration window and associated production risk.

Retrofit Guidance FAQ

Q: Does replacing the PU515 require re-loading the application program?
A: In most cases, no. The application logic resides on the PM511 processor module, not the PU515 accelerator. A direct PU515 swap typically restores operation without reloading the control program, provided the PM511 and its memory are intact. Always follow the ABB AC 450 maintenance procedure and perform a controlled shutdown before card removal.

Q: Is the wiring affected when replacing the PU515?
A: No field wiring changes are required. The PU515 connects exclusively via the AC 450 backplane. All field instrument wiring terminates at the I/O terminal boards and is unaffected by the accelerator module replacement.

Q: Can the PU515 be replaced while the system is running?
A: The AC 450 supports hot-swap procedures under specific conditions. Refer to ABB document 3BSE013063 and your site’s safety procedures. For critical process applications, a planned shutdown window is strongly recommended to eliminate risk.

Q: What communication protocols are supported after replacement?
A: The PU515 replacement does not alter the communication configuration. The AC 450 platform continues to support MASTERBUS 300, PROFIBUS DP (via SC510 or CI626), and serial Modbus as configured prior to the replacement. No protocol reconfiguration is needed for a like-for-like swap.

Q: What if the physical rack slot is damaged?
A: If the backplane connector or card guide in the rack is damaged, the rack itself (AC 450 subrack) may need to be replaced. TOPNLMS can advise on compatible subrack options and assist with sourcing the correct replacement chassis to maintain the existing I/O and communication module layout.

Q: How do I verify the module is functioning after installation?
A: After installation, the AC 450 system diagnostics (accessible via the ABB Master View 850 or Control Builder) will confirm module status. The PU515 LED indicators should show normal run state within the controller startup sequence. TOPNLMS provides a pre-shipment test report confirming module functionality.

Warranty Assurance

Every ABB PU515 3BSE013063R1 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each module undergoes a documented functional inspection including power-on verification, visual inspection for component damage, and connector integrity check. Units that do not pass inspection are not shipped.

If a module develops a fault within the warranty period under normal operating conditions, TOPNLMS will provide a replacement unit or full refund — your choice. Our after-sales response target is within 24 hours of fault notification. We maintain reserve stock specifically to support warranty replacements without delay.

For procurement teams requiring documentation, we can provide an inspection report, packing list, and commercial invoice with HS code declaration for customs clearance. Express shipping via DHL, FedEx, or UPS is available for urgent requirements, with typical transit times of 3–7 business days to most destinations worldwide.

To place an order or request a quotation, contact our technical sales team directly:

📧 [email protected] | 📞 +86 18359293191
