ABB PM866K01 3BSE050198R1 AC 800M CPU Upgrade Solution

Product Overview

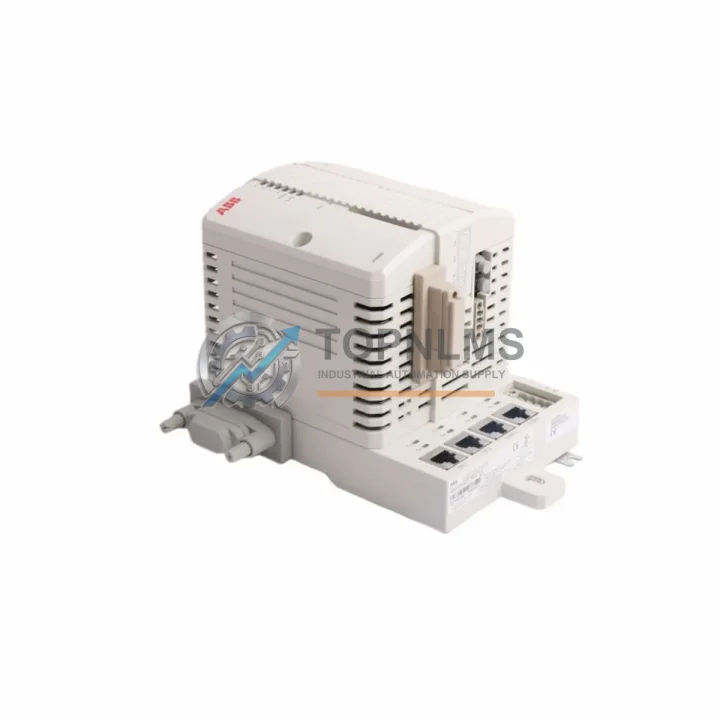

ABB PM866K01 3BSE050198R1 AC 800M CPU Upgrade Solution: Seamless Transition from Legacy Controllers

The ABB PM866K01 (order number 3BSE050198R1) is a high-performance CPU module designed for the AC 800M controller platform — ABB’s flagship distributed control system architecture widely deployed across power generation, oil & gas, pulp & paper, and chemical processing industries. As legacy AC 800M installations age and earlier CPU variants such as the PM860K01, PM861AK01, and PM864AK01 approach end-of-life or become increasingly difficult to source, the PM866K01 represents the most reliable and cost-effective upgrade path available today.

This module is engineered for direct installation into existing AC 800M controller racks without requiring structural modifications to the control cabinet. Its backward-compatible firmware architecture ensures that existing control programs developed in ABB’s Control Builder M engineering environment can be migrated with minimal rework. Engineers transitioning from PM860 or PM861 series CPUs will find that the PM866K01 retains the same physical form factor, DIN rail mounting footprint, and backplane connector pinout, dramatically reducing the mechanical and electrical effort required during a retrofit.

From a communications standpoint, the PM866K01 supports the full suite of protocols native to the AC 800M platform, including PROFIBUS DP, Modbus RTU/TCP, IEC 61850, and OPC DA/UA. This means existing field device networks — whether connected via CI854AK01 PROFIBUS communication interfaces, CI857K01 PROFINET modules, or CI840A Foundation Fieldbus interfaces — remain fully operational after the CPU swap. No gateway reconfiguration or protocol converter insertion is required in the majority of retrofit scenarios.

For facilities running mixed I/O architectures, the PM866K01 continues to support both local S800 I/O modules mounted on TB820V2 ModuleBus Modem units and remote I/O clusters connected via optical ModuleBus extensions. Existing AI810, AO810V2, DI810, and DO810 I/O modules remain fully compatible, preserving the wiring infrastructure and eliminating the need for field terminal rewiring — one of the most time-consuming and risk-prone aspects of any control system modernization project.

Power supply compatibility is another critical consideration during CPU replacement. The PM866K01 draws power from the standard AC 800M controller backplane, which is typically fed by an SD821 or SD822 power supply unit. No power supply upgrade is required when replacing an earlier PM8xx series CPU with the PM866K01, provided the existing power supply is in good operating condition and within its rated load capacity. This simplifies the upgrade bill of materials and reduces procurement lead time.

For sites where the existing AC 800M controller is connected to an ABB System 800xA distributed control system, the PM866K01 integrates natively with the 800xA server infrastructure. The module’s enhanced memory capacity and processing speed support larger application programs and faster scan cycles, which is particularly valuable in high-density I/O applications or where advanced process control (APC) functions are being added as part of the modernization scope. The PM866K01 also supports redundant CPU configurations using the TP830 redundancy module, enabling hot-standby operation for critical process loops where unplanned downtime is not acceptable.

During commissioning, the PM866K01 is configured and loaded using ABB Control Builder M Professional. The module’s diagnostic LEDs and built-in event logging facilitate rapid fault isolation during startup testing. Field engineers familiar with earlier AC 800M CPUs will find the commissioning workflow essentially unchanged, reducing the learning curve and shortening the overall project schedule. The module ships with factory-default firmware and is ready for application download immediately upon installation.

From a procurement and supply chain perspective, sourcing a genuine PM866K01 3BSE050198R1 through TOPNLMS ensures full traceability, pre-shipment functional testing, and a documented 12-month warranty covering manufacturing defects and operational failures. Each unit is inspected against ABB’s published hardware specifications before dispatch. Stock is maintained in our Xiamen warehouse, enabling rapid fulfillment for urgent replacement requirements across Asia-Pacific, the Middle East, and Europe.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete AC 800M modernization project typically involves more than a CPU swap. Depending on the scope of the retrofit, the following components are commonly sourced alongside the PM866K01. For sites upgrading from PM860K01 or PM861AK01 CPUs, the TP830 Redundancy Module is frequently added to enable hot-standby CPU operation — a capability that was limited or unavailable on earlier CPU variants. The CI854AK01 PROFIBUS DP Communication Interface is often replaced in parallel when the existing unit shows wear or when the retrofit scope includes expanding the field device network.

In applications where Foundation Fieldbus segments are present, the CI840A FF Communication Interface remains compatible with the PM866K01 and typically requires no reconfiguration. For sites adding PROFINET connectivity as part of the modernization, the CI857K01 PROFINET I/O Interface module integrates directly into the AC 800M rack alongside the new CPU. Remote I/O expansions using TB820V2 ModuleBus Modem units and optical fiber extensions are fully supported, allowing engineers to extend the I/O network without modifying the existing field wiring infrastructure.

On the power supply side, the SD821 and SD822 Power Supply Units are the standard feed for AC 800M controller racks and are routinely stocked as companion spares. For operator interface upgrades, ABB PP886 and PP865 Panel PC units integrate natively with the 800xA environment and are commonly specified alongside CPU modernization projects. Finally, for sites requiring programming cable access during commissioning or maintenance, the TK212A USB-to-serial adapter provides the physical connection between a laptop running Control Builder M and the PM866K01’s service port.

Retrofit Guidance FAQ

Q: Can I replace a PM860K01 or PM861AK01 with the PM866K01 without modifying the control cabinet?
A: Yes. The PM866K01 uses the same physical slot dimensions and backplane connector as earlier AC 800M CPU modules. No mechanical modifications to the controller rack or cabinet are required.

Q: Will my existing Control Builder M application program run on the PM866K01 without modification?
A: In most cases, yes. Programs developed for PM860 or PM861 series CPUs are compatible with the PM866K01 after a standard project rebuild in Control Builder M. Minor adjustments may be required if the application references CPU-specific hardware parameters.

Q: Do I need to reconfigure my PROFIBUS or Modbus field device networks after the CPU replacement?
A: No. The PM866K01 retains the same communication interface architecture as earlier AC 800M CPUs. Existing CI854AK01 PROFIBUS and CI840A FF communication modules continue to operate without reconfiguration.

Q: Is the PM866K01 compatible with redundant CPU configurations?
A: Yes. The PM866K01 supports full hot-standby redundancy using the TP830 Redundancy Module. This is an upgrade over the PM860K01, which had limited redundancy support.

Q: What is the physical installation space requirement?
A: The PM866K01 occupies a single CPU slot in the standard AC 800M controller rack. No additional rack space is required compared to the modules it replaces.

Q: How long does commissioning typically take after installing the PM866K01?
A: For a direct CPU replacement with an existing application program, commissioning typically requires 2–4 hours including program download, I/O verification, and communication link testing. More complex migrations involving program updates or network reconfiguration will require additional time.

Warranty Assurance

Every PM866K01 3BSE050198R1 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. This warranty covers manufacturing defects, component failures, and operational malfunctions under normal industrial operating conditions. Prior to dispatch, each unit undergoes a documented pre-shipment functional test to verify power-on behavior, communication port integrity, and firmware version compliance.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response team is reachable via email at [email protected] and by phone at +86 18359293191. Replacement units for warranty claims are typically dispatched within 3–5 business days of claim verification. We maintain buffer stock of high-demand AC 800M components specifically to support rapid warranty replacements and emergency procurement requests.

For customers with critical uptime requirements, we recommend discussing advance exchange arrangements at the time of purchase. This allows a replacement unit to be pre-positioned at your facility or regional warehouse, eliminating shipping lead time in the event of an unexpected failure.
