ABB PM554-TP-ETH 1SAP120600R0071 Original Industrial Spare AC500: System Stability & Maintenance Value

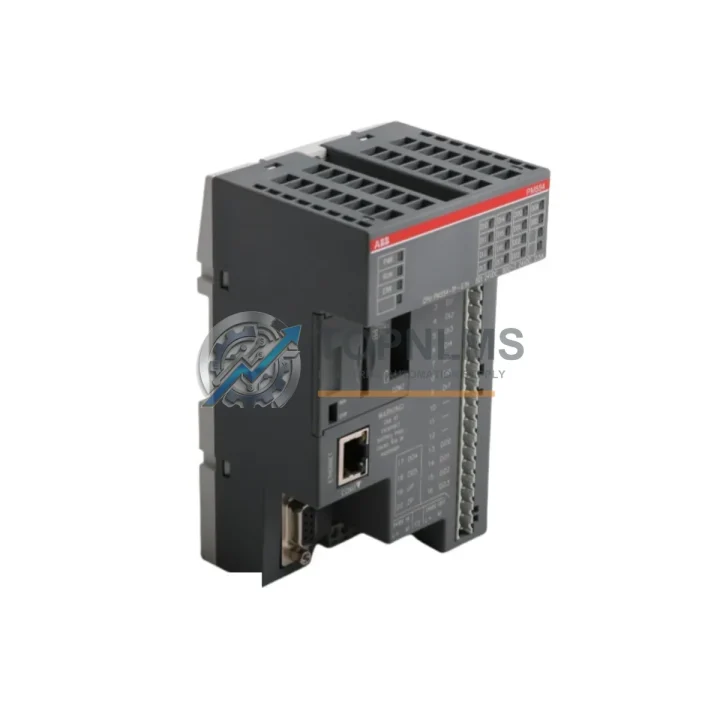

The ABB PM554-TP-ETH (catalog number 1SAP120600R0071) is a mid-range CPU module from ABB’s AC500 programmable logic controller series — one of the most widely deployed PLC platforms in industrial automation, process control, and machine building applications across Europe, Asia, and global manufacturing facilities. Designed for demanding environments, this CPU integrates onboard Ethernet connectivity, enabling seamless communication with SCADA systems, HMI panels, and distributed I/O networks without requiring an additional communication module.

For maintenance engineers and procurement teams managing aging or active AC500 installations, securing a verified original spare of the PM554-TP-ETH is a critical risk-mitigation step. Unplanned CPU failures are among the most disruptive events in a production environment — they halt entire lines, trigger cascading alarms, and can result in hours or days of downtime if a replacement unit is not immediately available. Stocking this module as a cold standby spare is a proven strategy for reducing mean time to repair (MTTR) and protecting production continuity.

Critical Technical Specs

Preventive Maintenance Strategy

A structured preventive maintenance program for any AC500-based control cabinet should extend well beyond the CPU module itself. When scheduling a planned shutdown or responding to an unplanned fault on a system running the PM554-TP-ETH, experienced maintenance teams use the opportunity to inspect and, where necessary, replace a broader set of components that share the same operational lifecycle.

The AC500 power supply module (such as the PS501 or PS502 series) is the first component to evaluate alongside the CPU. Power supply degradation is a leading cause of intermittent CPU resets and communication dropouts — symptoms that are often misdiagnosed as CPU faults. Replacing an aging power supply module during the same maintenance window as a CPU swap eliminates a common source of recurring faults.

Next, inspect the SM560-S or SM500 series digital and analog I/O expansion modules connected to the backplane. These modules handle field signal conditioning and are subject to wear from electrical transients, vibration, and thermal cycling. A faulty I/O module can cause erratic process behavior that appears to originate from the CPU. Verifying module status LEDs and performing a channel-by-channel diagnostic during downtime is standard practice.

The TB511 or TB521 backplane terminal base should also be inspected for connector wear, corrosion on the bus contacts, and secure module seating. Loose backplane connections are a frequent source of intermittent communication errors between the CPU and I/O modules. If the backplane has been in service for more than five years in a high-vibration environment, proactive replacement is advisable.

For systems using the PM554-TP-ETH’s Ethernet port for SCADA or HMI connectivity, inspect the Ethernet communication cable routing and connector integrity within the cabinet. Industrial-grade shielded Cat5e or Cat6 cables should be used, and any cable showing jacket damage or tight bend radii near connectors should be replaced. Similarly, if the system uses RS-485 serial communication for Modbus RTU devices, inspect the serial communication cable and termination resistors at both ends of the bus.

The 24 V DC power distribution terminal blocks and fuse modules feeding the PLC rack deserve attention during every planned inspection. Blown or degraded fuse elements, loose terminal screws, and discolored insulation are early indicators of overload conditions that can damage the CPU or I/O modules over time. Replacing suspect fuse modules and re-torquing terminal connections is a low-cost, high-value maintenance action.

If the control system includes an HMI panel (such as an ABB CP600 or CP400 series operator panel) communicating with the PM554-TP-ETH over Ethernet, verify the HMI firmware version compatibility with the current CPU firmware. Mismatched firmware versions can cause communication timeouts and screen freezes that are difficult to diagnose without a known-good spare CPU for substitution testing.

For installations where the AC500 system manages motor drives or soft starters, inspect the signal isolator modules and relay output modules in the same cabinet. These components are often the first to fail in environments with high inductive switching loads, and their failure can produce false signals that stress the CPU’s input processing. Stocking a relay output module alongside the PM554-TP-ETH spare is a practical inventory strategy for sites with frequent motor start/stop cycles.

Finally, for older AC500 installations that have been in service for more than seven years, consider auditing the SD memory card used for program backup on the PM554-TP-ETH. SD cards have a finite write cycle life, and a corrupted backup card can significantly extend recovery time after a CPU replacement. Maintaining a current, verified program backup on a replacement SD card stored with the spare CPU is a simple but often overlooked element of a complete spare parts strategy.

Strategic Replacement Solutions

The PM554-TP-ETH 1SAP120600R0071 is a direct replacement for earlier AC500 CPU variants that lacked integrated Ethernet, including certain PM554-TP configurations. For facilities managing legacy AC500 V1 installations, upgrading to the PM554-TP-ETH provides a path to modernize network connectivity without replacing the entire PLC rack or rewiring field I/O — a significant cost and time advantage compared to a full system migration.

When a CPU failure occurs on a production line, the priority is to restore operation with minimum reconfiguration. Because the PM554-TP-ETH uses the standard AC500 backplane form factor, a pre-configured replacement unit can be installed and the program restored from SD card backup in under 30 minutes by a trained technician — provided the spare is on-site and the backup is current. This rapid replacement capability is the primary argument for maintaining at least one cold standby unit in the site spare parts inventory.

For OEMs and system integrators managing multiple customer sites running AC500-based machines, a small buffer stock of PM554-TP-ETH modules enables same-day field dispatch without waiting for distributor lead times, which can range from days to weeks depending on regional stock availability. The 12-month warranty on each unit supplied by TOPNLMS provides additional assurance for both end-users and integrators managing warranty obligations to their own customers.

All units are tested prior to shipment using functional verification procedures to confirm CPU boot, Ethernet port operation, and memory integrity. Units are shipped in anti-static packaging with appropriate cushioning to prevent transit damage. Worldwide shipping is supported, with tracking provided for all orders.

Support FAQ

Q1: Is this PM554-TP-ETH unit an original ABB product?
Yes. All units listed on TOPNLMS are original manufacturer parts sourced through verified industrial supply channels. Each unit carries the ABB catalog number 1SAP120600R0071 and is supplied with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q2: How do I verify compatibility with my existing AC500 installation?
The PM554-TP-ETH is compatible with AC500 V2 and V3 backplane terminal bases (TB511, TB521, TB541, TB561). Confirm your existing backplane model and firmware version using ABB Automation Builder. If you are upgrading from a non-Ethernet PM554-TP variant, the program can be transferred directly via SD card with no modification required in most cases. Contact our technical team at [email protected] for compatibility verification support.

Q3: What testing is performed before shipment?
Each unit undergoes functional testing including power-on verification, CPU boot sequence confirmation, Ethernet port connectivity check, and memory read/write validation. Units that do not pass all test criteria are not shipped. Test records are available upon request for quality-critical procurement processes.

Q4: What is the recommended spare parts inventory strategy for AC500 systems?
For production-critical AC500 installations, we recommend maintaining at minimum: one cold standby CPU module (PM554-TP-ETH), one power supply module, and one of each I/O module type used in the installation. For multi-site operations, a centralized spare parts pool with defined replenishment triggers (e.g., replace within 30 days of consuming a spare) is the most cost-effective approach. Our team can assist with spare parts planning based on your installed base — contact [email protected] for a consultation.
