ABB PCD232A 3BHE022293R0101 Replacement for Unitrol 5000

Product Overview

ABB PCD232A 3BHE022293R0101 Replacement/Upgrade Solution for Unitrol 5000: Smooth Transition from Legacy Excitation Systems

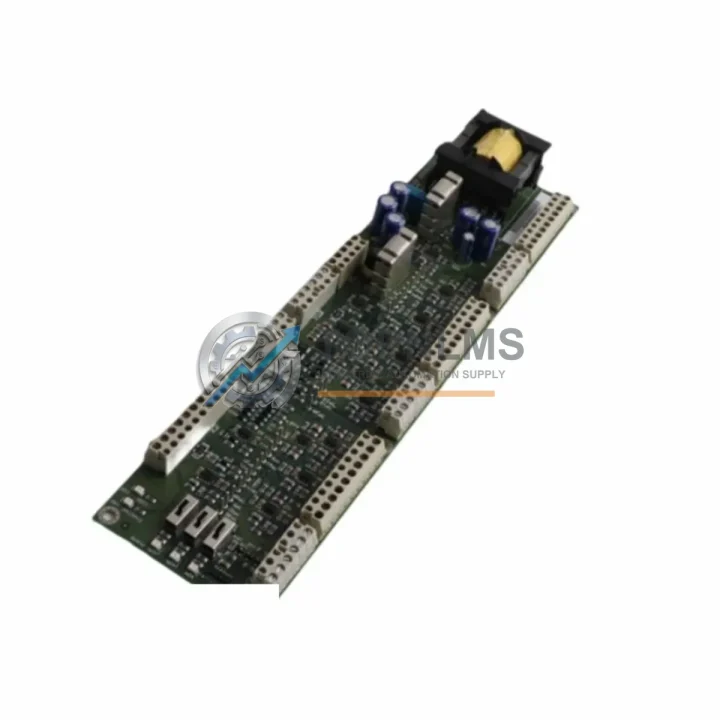

The ABB PCD232A (part number 3BHE022293R0101) is a precision excitation control board designed for the ABB Unitrol 5000 automatic voltage regulator (AVR) platform, widely deployed in hydro, thermal, and gas turbine generator sets across power utilities, petrochemical plants, and heavy industrial facilities. As ABB progressively phases out legacy excitation hardware, many operators face urgent replacement decisions — whether due to component failure, end-of-life notification, or a planned control system modernization program. This page provides a comprehensive migration guide for engineers and procurement teams sourcing a verified replacement or upgrade path for the PCD232A 3BHE022293R0101.

The PCD232A board functions as the core pulse control and firing circuit interface within the Unitrol 5000 excitation cubicle. It interfaces directly with the thyristor bridge assembly, receiving firing angle commands from the main AVR controller (such as the UNITROL 5000 UCB board or the SDCS-CON-2 control board in legacy SDCS-series drives) and translating them into precise gate pulses for the SCR stack. When this board fails or becomes unavailable, the entire excitation system is rendered inoperative, causing generator trips and unplanned outages. A verified drop-in replacement minimizes downtime and eliminates the need for costly rewiring or software reconfiguration.

Our replacement PCD232A 3BHE022293R0101 modules are sourced from authorized industrial surplus channels and undergo multi-stage functional testing prior to dispatch. Each unit is verified for correct gate pulse timing, analog signal integrity, and communication handshake compatibility with the Unitrol 5000 platform before shipment from our Xiamen warehouse.

Compatibility Comparison Table

Seamless Upgrade Solutions: Related Components for Unitrol 5000 Migration

A successful excitation system modernization rarely involves a single board replacement. During the migration from a legacy Unitrol 1000 or Unitrol 3000 platform to the Unitrol 5000 architecture — or when refurbishing an aging Unitrol 5000 cubicle — engineers typically need to address several interdependent subsystems simultaneously.

The ABB UCB (Unit Control Board) is the primary AVR controller that works in tandem with the PCD232A pulse control board. If the UCB has accumulated operating hours beyond its recommended service interval, replacing it alongside the PCD232A eliminates the risk of a secondary failure shortly after the initial repair. Similarly, the ABB SDCS-CON-2 control board, used in earlier DC drive-based excitation systems, is a common predecessor that the Unitrol 5000 platform replaces; customers migrating from SDCS-based excitation will need to verify backplane and wiring compatibility before installing the PCD232A.

On the power supply side, the ABB SDCS-POW-4 power supply module provides the regulated auxiliary voltages required by the excitation control electronics. A degraded or aging power supply is a frequent root cause of intermittent PCD232A faults, and proactive replacement during a planned outage prevents repeat failures. The ABB UFC760BE101 field excitation interface module is another component commonly found in the same cubicle, responsible for managing field current feedback signals that the PCD232A uses for closed-loop AVR control.

For communication and supervisory integration, many Unitrol 5000 installations use the ABB INSUM communication module or a Modbus RTU / PROFIBUS DP gateway card to interface the excitation system with the plant DCS or SCADA. Verifying that these communication modules are functioning correctly before and after the PCD232A replacement ensures that reactive power setpoints and AVR mode commands from the control room are correctly received. If the plant uses an ABB AC800M controller or a Symphony Plus DCS for generator management, the excitation system’s communication node address and I/O mapping should be confirmed unchanged after the board swap.

At the field wiring level, the ABB NTAI05 analog input termination unit and associated TB820 I/O modules are frequently part of the same generator control loop, handling voltage transformer (VT) and current transformer (CT) inputs that feed into the AVR algorithm. Inspecting these termination units for loose connections or insulation degradation during the PCD232A replacement is recommended practice. Additionally, if the excitation cubicle uses a signal isolator module between the CT/VT secondary circuits and the AVR input, verifying its calibration after board replacement prevents offset errors in the voltage regulation loop.

Finally, for sites performing a full excitation system retrofit — replacing the entire Unitrol 5000 cubicle rather than individual boards — the ABB Unitrol 6800 or Unitrol 6080 represents the current-generation replacement platform. The PCD232A 3BHE022293R0101 is not forward-compatible with the Unitrol 6000 series, but understanding the migration path helps procurement teams plan phased upgrades that balance capital expenditure with operational risk.

Retrofit Guidance FAQ

Q: Can I replace the PCD232A 3BHE022293R0101 without re-programming the AVR?
A: Yes. The PCD232A is a hardware pulse control board with no user-configurable firmware. Replacing it with an identical part number requires no software changes to the Unitrol 5000 UCB controller. AVR parameters (voltage setpoint, droop, PID gains) are stored in the UCB, not on the PCD232A board.

Q: Are the wiring connectors on the replacement board identical to the original?
A: Yes. Our replacement PCD232A 3BHE022293R0101 uses the same edge connector and ribbon cable interface as the original ABB production unit. No re-termination or adapter harness is required for standard Unitrol 5000 cubicle installations.

Q: What communication protocols does the Unitrol 5000 system support?
A: The Unitrol 5000 platform supports Modbus RTU, PROFIBUS DP, and ABB’s proprietary INSUM protocol for integration with plant DCS and SCADA systems. The PCD232A board itself operates on the internal Unitrol 5000 backplane bus and does not directly handle external communication protocols — those are managed by the UCB and optional communication gateway modules.

Q: Will the replacement board fit in the existing cubicle without panel modifications?
A: Yes. The PCD232A 3BHE022293R0101 conforms to the standard Unitrol 5000 PCB form factor and mounts directly into the existing card cage slot. No drilling, cutting, or panel modification is required.

Q: How do I verify the replacement board is functioning correctly after installation?
A: After installation, perform a no-load excitation test with the generator at rated speed. Monitor field current response, terminal voltage regulation, and AVR mode transitions (manual/auto) from the control panel or DCS. Confirm that gate pulse signals are present on all six thyristor channels using an oscilloscope if available. Normal AVR response within ±1% of voltage setpoint confirms successful replacement.

Q: What if my system uses an older Unitrol 1000 or Unitrol 3000 platform?
A: The PCD232A 3BHE022293R0101 is specific to the Unitrol 5000 platform and is not directly compatible with Unitrol 1000 or Unitrol 3000 hardware. If you are migrating from an older platform, a full cubicle upgrade to Unitrol 5000 or Unitrol 6000 series is recommended. Please contact our technical team for migration assessment support.

Warranty Assurance

Every ABB PCD232A 3BHE022293R0101 supplied by TOPNLMS is backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Our pre-shipment testing protocol includes:

• Visual inspection for physical damage, corrosion, and component integrity
• Functional power-on test verifying auxiliary power consumption within specification
• Gate pulse output verification across all firing channels
• Analog signal path continuity and isolation resistance check
• Final QC sign-off with test record documentation

Units are shipped in anti-static packaging with foam cushioning to prevent transit damage. Standard dispatch from our Xiamen warehouse is within 1–3 business days of order confirmation. Express DHL/FedEx international shipping is available for urgent requirements, with typical transit times of 3–7 business days to most global destinations.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales team responds to technical inquiries within 24 hours on business days. We maintain stock of common Unitrol 5000 series components to support rapid response for critical plant situations.
