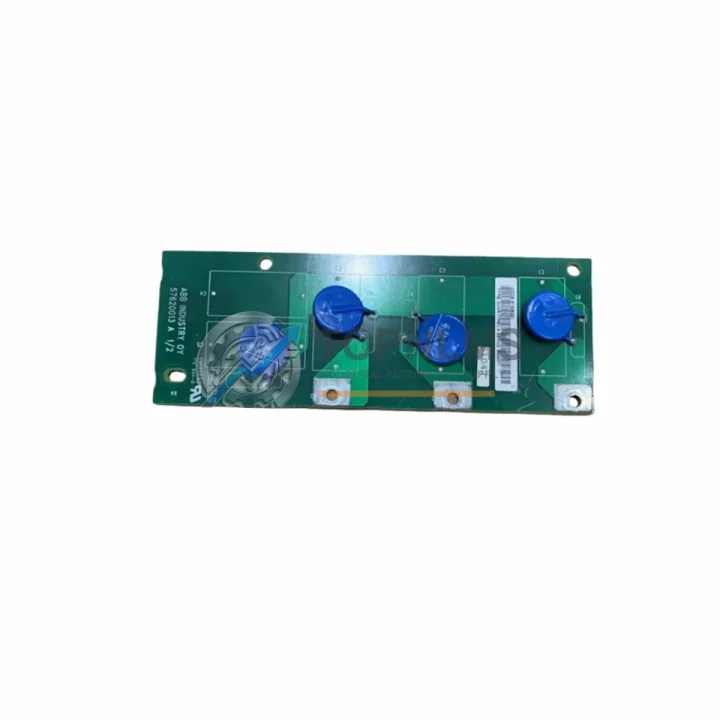

ABB NVAR-77 Replacement Upgrade Solution for NVAR Series

Product Overview

ABB NVAR-77 Replacement Upgrade Solution for NVAR Series: Smooth Transition from Legacy Drive Systems

Upgrading or replacing a failed ABB NVAR-77 Drive Control PC Board does not have to mean extended downtime or costly system redesigns. The NVAR-77 is a core control board used in ABB’s NVAR Series AC drives, responsible for managing PWM signal generation, fault diagnostics, speed reference processing, and communication interfacing between the drive’s power stage and the supervisory control layer. When this board fails or reaches end-of-service life, a like-for-like replacement or a carefully validated upgrade path is essential to restoring production continuity with minimal disruption to existing wiring, programming, and system architecture.

At TOPNLMS, we stock verified NVAR-77 boards sourced through qualified industrial supply channels. Each unit undergoes incoming inspection and functional verification before dispatch. Whether you are managing a single-drive failure on a packaging line or executing a planned fleet upgrade across multiple NVAR Series drives in a process plant, our inventory and technical support are structured to meet your timeline and specification requirements.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful NVAR-77 board replacement rarely involves the control board in isolation. In practice, field engineers replacing this board as part of a broader NVAR Series drive refurbishment or system modernization project will typically assess several adjacent components to ensure the restored drive performs reliably over the next service interval.

The NVAR Series drive’s power supply module is a common co-replacement item — if the NVAR-77 board has failed due to voltage irregularities or ripple from an aging internal SMPS, replacing the power supply board alongside the control board eliminates the root cause and prevents repeat failures. Similarly, the gate driver board within the same drive chassis should be inspected for thermal stress or IGBT gate signal degradation, particularly in high-cycle applications such as compressor or pump control.

On the I/O side, the NVAR Series typically interfaces with external terminal modules and signal conditioning components. If the site uses ABB NDIO or NAIO I/O extension modules connected to the drive’s option slot, these should be verified for firmware compatibility with the replacement NVAR-77 board revision. In applications where the drive communicates upstream to a Siemens S7-300 or S7-400 PLC via PROFIBUS DP, the PROFIBUS adapter module — such as an NPBA-12 — should be confirmed as compatible and its node address settings preserved during the board swap.

For sites running ABB drives integrated into a larger DCS environment via Modbus RTU or PROFINET, the communication adapter fitted to the NVAR drive option slot — whether an NMBА-01 Modbus adapter or an NPNA-01 PROFINET adapter — will retain its configuration independently of the control board replacement, provided the drive parameters are backed up and restored correctly using ABB DriveWindow Light or the ACS control panel. This is a critical step that field technicians should complete before powering down the drive for board extraction.

In control cabinet environments where the NVAR Series drive shares a backplane or DIN rail assembly with ABB ACS series drives, Siemens SINAMICS G120 modules, or Schneider Electric Altivar drives, the replacement procedure should account for inter-drive communication dependencies — particularly if the drives share a common DC bus or are coordinated by a master PLC such as an Allen-Bradley ControlLogix or a Mitsubishi MELSEC Q Series controller. Ensuring the replacement NVAR-77 board is correctly parameterized before reconnecting the drive to the network prevents nuisance faults on adjacent drives during commissioning.

Where the original installation includes an ABB ACS800 or ACS550 series drive in the same panel, spare NVAR-77 boards are often stocked alongside AINT-02 interface boards and RDCO-02 communication modules as part of a site-level critical spares strategy. TOPNLMS can supply these components individually or as part of a coordinated spares package to support planned maintenance shutdowns.

Retrofit Guidance FAQ

Q: Can I reuse the existing wiring harness when replacing the NVAR-77 board?
A: Yes. The NVAR-77 replacement board uses the same connector layout and pin assignment as the original. No rewiring is required. Inspect the harness for insulation damage or connector wear before reinstallation.

Q: Do I need to reprogram the drive after replacing the control board?
A: Drive parameters are stored in the drive’s memory unit or control panel, not on the NVAR-77 board itself. If a parameter backup was taken prior to the failure using DriveWindow or the ACS panel, parameters can be restored after board replacement without manual re-entry. If no backup exists, parameters must be re-entered from the commissioning record.

Q: Will the replacement board affect my PROFIBUS or Modbus communication setup?
A: No. The fieldbus adapter module (e.g., NPBA-12 for PROFIBUS, NMBA-01 for Modbus) is fitted to the drive’s option slot independently of the NVAR-77 control board. Communication settings are retained in the adapter module and are not affected by the board replacement.

Q: Is the NVAR-77 compatible with both older and newer NVAR Series drive chassis?
A: The NVAR-77 is designed for the NVAR Series platform. Compatibility across specific chassis revisions should be confirmed against the drive’s nameplate data and the board’s revision marking. Contact TOPNLMS with your drive serial number for confirmation before ordering if you are uncertain.

Q: How much physical space does the replacement require inside the control cabinet?
A: The NVAR-77 is a direct board-level replacement with the same PCB dimensions and mounting points as the original. No additional cabinet space, DIN rail modification, or enclosure alteration is required.

Q: What is the typical commissioning time after board replacement?
A: With a pre-existing parameter backup and an experienced field technician, board replacement and recommissioning typically takes 30–90 minutes. First-time replacements without a parameter backup may require 2–4 hours depending on the complexity of the drive application.

Warranty Assurance

Every ABB NVAR-77 Drive Control PC Board supplied by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. This warranty covers manufacturing defects, functional failures under normal operating conditions, and component-level faults identified during the warranty period.

Prior to dispatch, each NVAR-77 board undergoes a multi-point outgoing inspection that includes visual examination for physical damage, connector integrity verification, and where applicable, functional bench testing. Boards that do not meet our quality threshold are quarantined and not dispatched.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund based on the nature of the fault and the customer’s preference. Our after-sales response target is within 24 business hours of claim submission. Customers are required to return the faulty board in its original packaging with a brief fault description to initiate the warranty process.

For procurement teams managing critical spares budgets, TOPNLMS offers documented inspection reports and test certificates on request, supporting your internal quality assurance and asset management requirements. We ship from Xiamen, China, with DHL Express, FedEx International Priority, and sea freight options available depending on urgency and order volume.

To place an order, request a quotation, or confirm compatibility for your specific drive serial number, contact our technical sales team directly.
