ABB NDBU-95C 64008366D Ruggedized DDCS Fiber Branching Unit

Product Overview

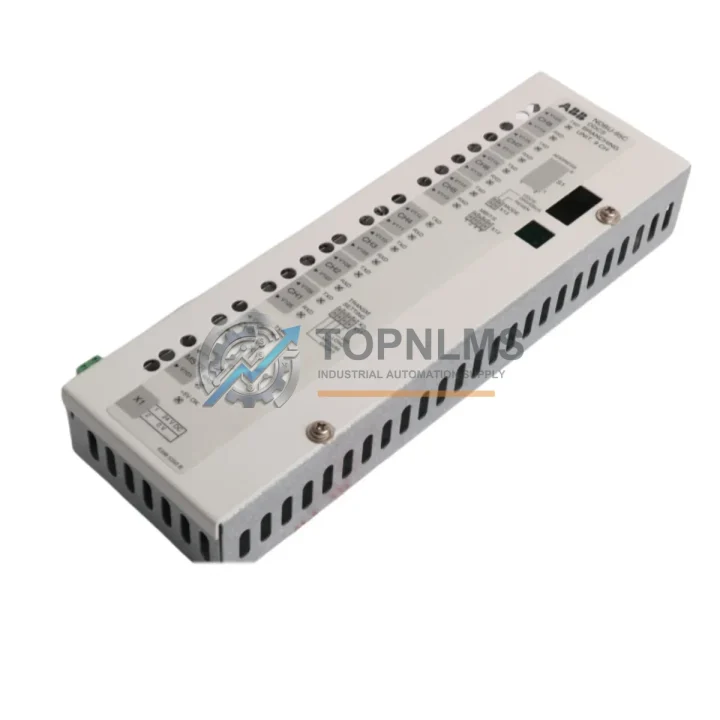

ABB NDBU-95C 64008366D Ruggedized DDCS Optical Fiber Branching Unit for Harsh Environments

The ABB NDBU-95C (Part No. 64008366D) is a ruggedized DDCS (Distributed Drive Control System) optical fiber branching unit engineered for mission-critical industrial automation environments. Designed as a core communication backbone component within ABB’s AC 800M DCS architecture, this module enables high-speed, noise-immune optical fiber data distribution across multi-drive and multi-axis control systems. Its fiber-optic signal path eliminates susceptibility to electromagnetic interference (EMI), ground loops, and high-voltage transients — making it the preferred choice for installations in steel mills, petrochemical plants, offshore platforms, and heavy manufacturing facilities where copper-based communication would be unreliable or unsafe.

In demanding industrial environments characterized by extreme temperatures, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic fields, the NDBU-95C 64008366D maintains deterministic, low-latency communication between the AC 800M controller and connected drive systems. Its optical isolation architecture ensures that fault events on the drive side — such as overcurrent trips, ground faults, or DC bus transients — do not propagate upstream to the control system, protecting both the PLC/DCS infrastructure and the broader automation network from cascading failures.

Within a typical ABB AC 800M control cabinet, the NDBU-95C serves as the fiber distribution hub connecting the PM861A or PM864A processor module to multiple ACS800, ACS880, or ACS580 variable frequency drives via DDCS fiber links. Each branching port supports point-to-point or ring topology configurations, enabling flexible system architecture for both centralized and distributed drive control. The module integrates seamlessly with RDCO-02C or RDCO-03C drive communication option boards, ensuring plug-and-play compatibility within established ABB drive ecosystems without requiring additional protocol converters or signal conditioners.

Beyond drive communication, the NDBU-95C 64008366D plays a critical role in coordinating I/O expansion across remote I/O clusters. In large-scale process automation — such as continuous casting lines, paper machine drives, or water treatment pump stations — the module links the central DCS to distributed S800 I/O modules, PROFIBUS DP gateways, and CI854A communication interfaces, maintaining synchronized data exchange at cycle times compatible with real-time process control requirements. This makes it an indispensable component in any multi-drive, multi-loop control architecture where communication latency or signal degradation could result in process upsets or safety incidents.

The module’s passive optical branching design means it introduces no active signal processing delay, preserving the deterministic timing characteristics that ABB’s DDCS protocol depends upon. This is particularly important in coordinated multi-drive applications — such as winder/unwinder tension control, crane hoist synchronization, or multi-motor conveyor systems — where microsecond-level timing consistency between drive commands is essential for product quality and equipment safety. The NDBU-95C supports both master-slave and peer-to-peer DDCS configurations, giving system integrators the flexibility to design control architectures that match the specific demands of their application.

Rugged Specifications Table

Comprehensive Protection Solutions

The NDBU-95C 64008366D is rarely deployed in isolation — it functions as the communication spine of a broader, integrated protection and control architecture. In a fully configured AC 800M control system, the branching unit works in concert with the PM864A processor module, which handles real-time process execution, and the CI854A PROFIBUS DP communication interface, which bridges the DCS to field instrumentation and third-party devices. On the drive side, the NDBU-95C connects to ACS880 industrial drives equipped with RDCO-03C DDCS communication option boards, enabling closed-loop speed and torque control with full diagnostic transparency back to the control room.

For power distribution and protection within the same control cabinet, the system typically incorporates ABB S200 series miniature circuit breakers and F200 series residual current devices (RCDs) to protect the 24 VDC auxiliary supply feeding the NDBU-95C and associated I/O modules. Upstream, ABB UNO-PS/1AC/24DC/100W SMPS power supplies provide stable, filtered DC power that meets the stringent ripple and transient immunity requirements of fiber communication hardware. In safety-critical zones, the control architecture may also include ABB Pluto safety PLCs or JOKAB TINA safety modules to enforce SIL 2/3 safety functions independently of the main DCS loop.

Remote I/O expansion is handled through ABB S800 I/O modules — including AI810 analog input, AO810 analog output, DI810 digital input, and DO810 digital output cards — connected to the AC 800M via CI810B FieldBus Communication Interface modules. These I/O clusters, distributed across the plant floor, rely on the NDBU-95C’s fiber backbone to maintain deterministic data exchange with the central controller. In high-availability configurations, redundant fiber ring topologies using dual NDBU-95C units ensure that a single fiber break does not interrupt process communication, a critical requirement in continuous production environments such as chemical reactors, power generation turbines, or offshore compressor trains.

Application in Critical Infrastructure

The ABB NDBU-95C 64008366D has established a proven track record across the most demanding sectors of global industrial infrastructure. In oil and gas processing facilities, the module enables reliable DDCS communication between the AC 800M DCS and variable speed drives controlling wellhead pumps, gas compressors, and pipeline booster stations — environments where explosive atmospheres, salt spray, and extreme temperature cycling would rapidly degrade conventional copper communication links. Its optical isolation ensures that high-voltage transients from motor switching events cannot propagate into the control system, protecting both the DCS hardware and the integrity of the safety instrumented system (SIS).

In metallurgical and steel production environments, the NDBU-95C supports coordinated multi-drive control of rolling mill stands, where precise speed synchronization between multiple ACS800 or DCS800 drives is essential for maintaining strip thickness tolerances and preventing cobble events. The module’s deterministic DDCS timing ensures that speed reference updates from the AC 800M reach all drives simultaneously, regardless of the number of branching hops in the fiber network. Similarly, in mining and mineral processing operations, the branching unit provides reliable communication in conveyor drive systems, crusher drives, and hoisting equipment — applications where mechanical vibration, coal dust, and high-power electrical equipment create a hostile environment for any communication hardware.

Water and wastewater treatment facilities rely on the NDBU-95C to maintain continuous communication between the AC 800M control system and pump station drives, blower drives, and centrifuge drives — often across geographically distributed installations connected by long fiber runs. In power generation and transmission applications, including hydroelectric plants and thermal power stations, the module’s EMI immunity is particularly valuable given the intense electromagnetic fields generated by large generators, transformers, and high-voltage switchgear. The NDBU-95C’s ability to maintain error-free communication in these environments directly contributes to plant availability, regulatory compliance, and personnel safety.

Security & Quality FAQ

Q1: What warranty does TOPNLMS provide for the ABB NDBU-95C 64008366D?
All ABB NDBU-95C 64008366D units supplied by TOPNLMS are covered by a 12-month warranty from the date of shipment. This warranty covers functional defects identified under normal operating conditions consistent with ABB’s published specifications. In the event of a warranty claim, TOPNLMS provides replacement or repair support with priority handling to minimize your downtime. Our warranty commitment reflects our confidence in the pre-shipment testing and quality verification process applied to every unit we ship.

Q2: How is each unit tested before shipment?
Every NDBU-95C 64008366D unit undergoes a structured pre-shipment inspection that includes visual examination for physical damage, verification of part number and revision markings against ABB documentation, functional power-on testing where applicable, and packaging inspection to ensure safe transit. Units sourced as tested surplus are additionally verified for correct firmware revision and optical port integrity. Our quality control process is designed to ensure that the module you receive is ready for immediate installation without requiring additional bench testing on your end.

Q3: Is the NDBU-95C 64008366D compatible with my existing ABB AC 800M system?
The NDBU-95C 64008366D is a standard ABB DDCS fiber branching unit compatible with all AC 800M controller generations using DDCS fiber communication, including systems built around PM861A, PM864A, and PM866A processor modules. It is also compatible with ABB drives equipped with RDCO-02C or RDCO-03C communication option boards, including ACS800, ACS880, ACS580, and DCS800 series. If you have a specific system configuration or firmware version requirement, please contact our technical team before ordering — we will confirm compatibility based on your exact application details.

Q4: Can TOPNLMS support long-term supply and emergency replacement needs?
Yes. TOPNLMS maintains dedicated inventory of ABB automation components including the NDBU-95C 64008366D to support both planned maintenance programs and emergency breakdown situations. We understand that unplanned downtime in continuous production environments carries significant financial and safety consequences. Our standard lead time for in-stock items is 3–7 business days for international shipments, with expedited options available for urgent requirements. We also offer procurement support for related ABB components — including I/O modules, processor cards, communication interfaces, and drive option boards — to serve as a single-source supplier for your AC 800M system spares.
