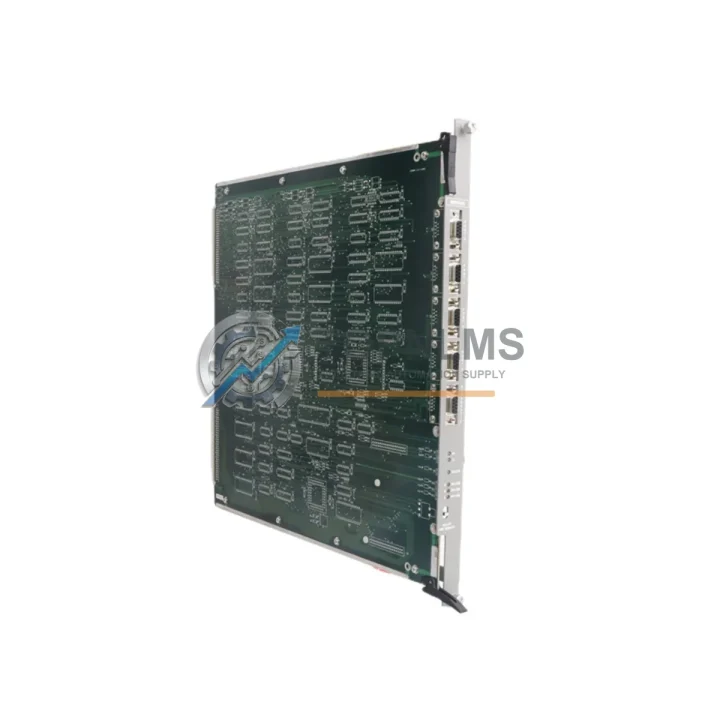

ABB MSR04XI Ruggedized Serial Comms Module for Harsh Environments

Product Overview

ABB MSR04XI Ruggedized Serial Communications Module: Industrial Resilience for Harsh Environments

The ABB MSR04XI is a ruggedized 4-channel serial communications module engineered for continuous, fault-tolerant operation within the ABB AC500 PLC platform and ABB Freelance DCS architecture. Designed to perform reliably under extreme thermal cycling, high-humidity atmospheres, persistent mechanical vibration, and dense electromagnetic interference (EMI), the MSR04XI delivers the signal integrity and protocol stability that mission-critical industrial environments demand.

In sectors where downtime is measured in millions of dollars per hour — oil and gas processing, mineral extraction, power generation, water treatment, and heavy metallurgy — the MSR04XI serves as the communications backbone connecting field instruments, remote I/O stations, and supervisory control layers. Its multi-channel serial architecture supports simultaneous RS-232, RS-422, and RS-485 communication, enabling seamless integration with legacy SCADA hosts, intelligent motor drives, and third-party field devices without protocol conversion overhead.

Unlike generic communications cards, the MSR04XI is factory-hardened to withstand the operational realities of industrial plant floors: ambient temperatures from -25 °C to +70 °C, relative humidity up to 95 % non-condensing, and vibration profiles consistent with IEC 60068-2-6 test standards. Its conformal-coated PCB resists corrosive airborne contaminants — sulfur compounds, chlorine vapors, and fine metallic dust — that routinely degrade unprotected electronics in foundry, chemical, and offshore environments.

Rugged Specifications Table

Comprehensive Protection Solutions

The MSR04XI does not operate in isolation — it is a precision component within a tightly integrated control architecture. In a typical AC500-based control cabinet, the module slots alongside the ABB PM573-ETH CPU module, which handles program execution and Ethernet supervisory communications, while the MSR04XI manages all serial field-device traffic independently, preventing protocol contention and ensuring deterministic scan cycles. Paired with ABB TB521-ETH terminal base units, the module achieves tool-free installation and hot-swap capability, reducing planned maintenance windows in continuous-process plants.

For distributed I/O expansion, the MSR04XI integrates seamlessly with ABB TU515 and TU516 I/O terminal units, extending the reach of the AC500 system to remote field junction boxes without additional gateways. In Freelance DCS configurations, it works in concert with ABB AC800F controller modules and ABB S800 I/O field units, providing the serial backbone for legacy transmitter networks and intelligent valve positioners that have not yet migrated to HART or PROFIBUS.

Power integrity is equally critical in harsh-environment deployments. The MSR04XI is typically powered through ABB CP-E 24VDC industrial power supply units, which provide regulated, filtered DC power with built-in surge protection — essential in environments where utility power quality is poor or where large motor starts introduce transient voltage spikes. Supplementary ABB SACE surge protective devices on the incoming AC rail further shield the communications module from lightning-induced transients in outdoor substations and remote pump stations.

Where functional safety is mandated — SIL 2 or SIL 3 rated loops in accordance with IEC 61511 — the MSR04XI is deployed alongside ABB Triguard SC300E safety controllers and dedicated ABB AI830A safety analog input modules, forming a layered architecture in which the MSR04XI handles non-safety serial traffic while the safety-rated modules manage protective shutdown logic. This separation of safety and standard control networks is a best practice in process industries and is fully supported by the AC500 / Freelance DCS platform topology.

For cabinet-level communications infrastructure, the MSR04XI is frequently installed with ABB EK500 communication couplers and PROFIBUS DP gateway modules, bridging legacy serial device networks to modern fieldbus backbones without replacing field instrumentation — a cost-effective modernization strategy widely adopted in brownfield refinery and power plant upgrades.

Application in Critical Infrastructure

Oil & Gas Processing: On offshore platforms and onshore gas compression stations, the MSR04XI manages serial communications between the AC500 PLC and wellhead pressure transmitters, flow computers, and emergency shutdown valve positioners. Its conformal-coated PCB and wide operating temperature range ensure uninterrupted data exchange in salt-laden, hydrocarbon-rich atmospheres where standard commercial modules fail within months.

Mining & Mineral Processing: In underground and open-cut mining operations, the module connects conveyor drive controllers, crusher automation panels, and ventilation fan drives via RS-485 Modbus networks. Vibration levels from blasting and heavy machinery are well within the module’s IEC 60068-2-6 rated tolerance, and its EMI immunity prevents false data frames from corrupting production telemetry.

Power Generation & Transmission: Thermal power stations and hydroelectric facilities rely on the MSR04XI to interface turbine governor controllers, excitation systems, and protection relays with the plant DCS. The module’s RS-422 differential signaling supports cable runs exceeding 1,200 meters — essential in large generating units where control rooms are physically distant from turbine hall equipment.

Water & Wastewater Treatment: Municipal water authorities deploy the MSR04XI in pump station automation, where it connects submersible pump drives, chlorination dosing systems, and flow metering equipment to the SCADA host. Its humidity tolerance and corrosion-resistant coating are critical in wet well environments where condensation and chemical vapors are constant.

Metallurgy & Steel Production: In electric arc furnace and continuous casting operations, the MSR04XI withstands radiated EMI levels that would saturate unshielded communications hardware. It maintains reliable serial links between the AC500 controller and pyrometers, ladle tracking systems, and hydraulic press controllers throughout the heat cycle.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the ABB MSR04XI?
Every ABB MSR04XI shipped by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. If the module fails within the warranty period, we provide a replacement or full refund — no lengthy RMA bureaucracy. Our warranty terms are documented and provided with every shipment.

Q2: How is the MSR04XI tested before shipment?
Each unit undergoes a multi-point pre-shipment inspection: visual inspection for physical damage, power-on functional verification, and communications port continuity testing. Modules sourced from ABB-authorized channels are cross-referenced against ABB’s genuine part markings and firmware revision records. A test report is available upon request for quality-critical procurement processes.

Q3: Is the MSR04XI compatible with both AC500 V2 and V3 CPU generations?
The MSR04XI is designed for the ABB AC500 platform and is compatible with AC500 V2 CPU modules (PM571, PM573, PM581, PM591 series) as well as Freelance DCS controller stations. Compatibility with AC500 V3 hardware should be verified against ABB’s current hardware compatibility matrix, which TOPNLMS technical support can assist with prior to order confirmation.

Q4: Can TOPNLMS support long-term or repeat supply of the MSR04XI for ongoing maintenance programs?
Yes. TOPNLMS maintains strategic stock of high-demand ABB AC500 and Freelance DCS components, including the MSR04XI, to support planned maintenance shutdowns, emergency spares programs, and multi-site rollouts. We offer volume pricing for standing orders and can provide lead-time commitments for scheduled procurement. Contact our team to discuss a supply agreement tailored to your plant’s maintenance cycle.
