ABB LEC01-R1D-ANR27900560 Replacement for LEC Series: Smooth Migration from Legacy Control Systems

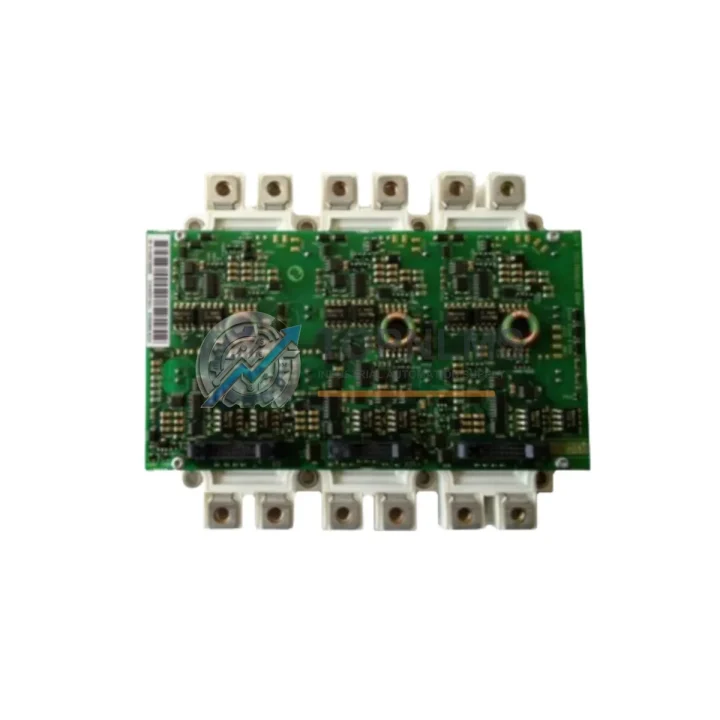

The ABB LEC01-R1D-ANR27900560 is a high-performance control board within ABB’s LEC Series platform, engineered for demanding industrial automation environments including drive control, motion coordination, and process regulation. As legacy ABB drive systems and earlier LEC-generation boards approach end-of-life or become increasingly difficult to source, the LEC01-R1D-ANR27900560 serves as the authoritative drop-in replacement and upgrade path — preserving existing wiring infrastructure, control cabinet space, and communication architecture while delivering improved reliability and extended service life.

TOPNLMS maintains verified stock of the LEC01-R1D-ANR27900560 sourced directly from ABB-authorized supply chains. Every unit undergoes pre-shipment functional inspection and ships with a 12-month replacement warranty. Whether you are executing a planned retrofit, responding to an unplanned failure, or building a critical spare inventory, our team can support same-day quotation and rapid international dispatch from Xiamen, China.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to the LEC01-R1D-ANR27900560 rarely involves the control board in isolation. In practice, field engineers undertaking an ABB drive retrofit will simultaneously evaluate the condition of adjacent components to minimize future downtime and ensure system-level reliability.

On the communication side, the LEC01-R1D-ANR27900560 interfaces directly with ABB’s RDCO-02 DDCS communication module, which is commonly retained from the existing drive when it remains serviceable. Where the legacy RDCO module has degraded, replacement is straightforward and does not require changes to the fiber-optic cabling already routed through the control cabinet. Similarly, sites running PROFIBUS DP integration will find the RPBA-01 PROFIBUS adapter fully compatible with the LEC board’s option slot architecture.

Power integrity is equally critical during a control board swap. Engineers should inspect the drive’s internal SMPS power supply board — often designated APOW or similar within the ACS/DCS drive family — since a marginal power supply can cause erratic behavior on a newly installed control board and complicate fault diagnosis. Where the drive is an older ACS600 or ACS800 platform being migrated toward a newer control architecture, the AINT interface board and AINP measurement board are frequently replaced as a set alongside the main control board to eliminate latent failure points.

For I/O expansion, the LEC01-R1D-ANR27900560 supports standard ABB I/O extension modules. Sites with existing AIMA-01 analog I/O modules or AIDL digital I/O extension boards can retain these without modification, preserving the existing field wiring to sensors, transmitters, and actuators. This is a significant advantage in brownfield retrofits where re-terminating hundreds of signal cables would represent unacceptable downtime.

On the HMI and operator interface layer, the control board replacement is transparent to panel-mounted ABB ACS control panels (CDP312R or equivalent) connected via the drive’s panel bus. No panel reconfiguration is required. For sites integrating with a supervisory SCADA or DCS layer via Modbus RTU or EtherNet/IP, the fieldbus adapter configuration stored in the drive’s parameter memory is preserved when parameters are backed up prior to the swap and restored afterward using Drive Composer Pro.

Finally, where the retrofit is part of a broader control cabinet modernization — for example, replacing an aging ABB AC500 PLC rack or upgrading a Freelance DCS node — the LEC01-R1D-ANR27900560 integrates cleanly into the updated system architecture without requiring changes to the drive’s external signal conditioning or signal isolator modules already installed on the DIN rail.

Retrofit Guidance FAQ

Q: Can I reuse my existing wiring harness when replacing the control board?
A: Yes. The LEC01-R1D-ANR27900560 uses the same connector positions and pinout as predecessor LEC Series boards. In standard retrofit scenarios, the existing harness is disconnected from the old board and reconnected to the new board without modification. Always verify connector seating and inspect for damaged pins before powering up.

Q: Do I need to reprogram the drive after installing the new control board?
A: Not from scratch. Back up your existing parameter set using ABB Drive Composer or DriveWindow before removing the old board. After installing the LEC01-R1D-ANR27900560, restore the parameter backup. Verify critical parameters — motor data, speed references, protection limits — against your commissioning records before running the drive under load.

Q: Is the LEC01-R1D-ANR27900560 compatible with my existing PROFIBUS or DDCS communication setup?
A: Yes. The board retains the same option slot architecture as the LEC Series platform, supporting RDCO DDCS modules and RPBA/RETA/RDNA fieldbus adapters. Your existing network configuration and node addressing are preserved through the parameter restore process.

Q: Will the new board fit in my existing control cabinet without mechanical modification?
A: The LEC01-R1D-ANR27900560 shares the same physical envelope and mounting pattern as the LEC Series predecessor boards. No cabinet cutouts, bracket modifications, or DIN rail changes are required in standard applications.

Q: What is the recommended commissioning procedure after installation?
A: (1) Restore parameter backup. (2) Verify motor nameplate data parameters. (3) Run the drive in local control at low speed with no load. (4) Check all I/O signals against the I/O list. (5) Verify fieldbus communication status. (6) Perform a full-load test run and confirm fault-free operation before returning to automatic/remote control.

Q: What if my legacy board has a different firmware revision?
A: Consult the ABB service bulletin for the LEC01-R1D-ANR27900560 to confirm firmware compatibility with your drive platform. TOPNLMS technical support can assist with revision verification prior to order confirmation.

Warranty Assurance

Every ABB LEC01-R1D-ANR27900560 shipped by TOPNLMS is covered by a 12-month replacement warranty from the date of delivery. Our pre-shipment inspection process includes visual examination, connector integrity verification, and functional checks where applicable. Units are packed in anti-static protective packaging with foam cushioning to prevent transit damage.

In the event of a warranty claim, TOPNLMS provides a straightforward replacement process: contact our team at [email protected] or +86 18359293191 with your order reference and a description of the fault. We will arrange priority dispatch of a replacement unit and coordinate return logistics for the defective board. Our target response time for warranty inquiries is within one business day.

For procurement teams managing critical spare inventories, TOPNLMS offers volume pricing, lead-time commitments, and documentation packages (test reports, country-of-origin certificates, packing lists) to support your internal approval and compliance workflows. We ship internationally via DHL, FedEx, and UPS with full tracking and export documentation from Xiamen, China.

For urgent replacement requirements, same-day quotation is available. Contact us directly to confirm stock availability, lead time, and shipping options for your specific project timeline.
