ABB LDSTA-01 63940143 Replacement for LDSTA Series: Seamless Transition & Legacy System Compatibility

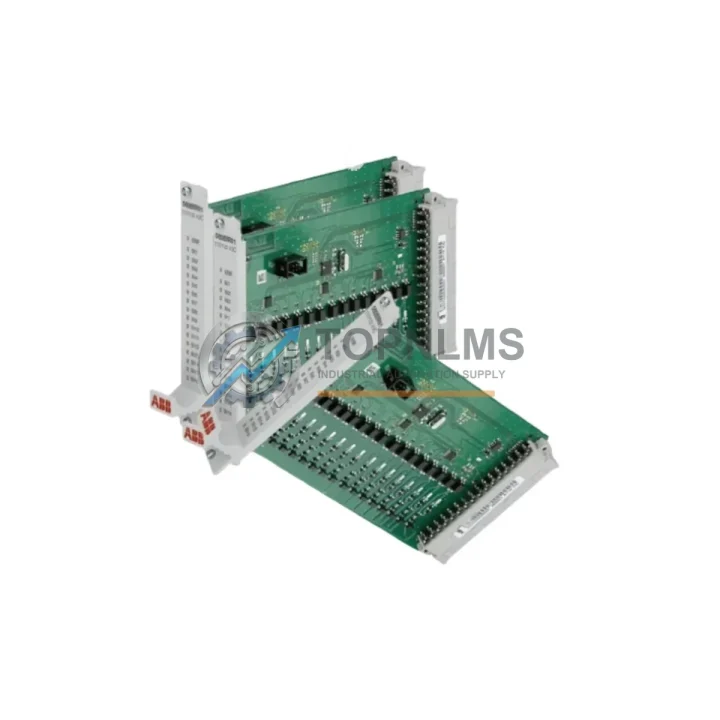

The ABB LDSTA-01 (part number 63940143) is a dedicated control board within ABB’s LDSTA Series, widely deployed in industrial drive systems, motor control centers, and process automation architectures. As ABB progressively phases out legacy LDSTA-series hardware, facilities running aging drive control panels face increasing pressure to source reliable replacement boards before critical spares become unavailable. This page provides a complete migration and replacement guide for engineers and procurement teams managing the transition from discontinued or end-of-life LDSTA control hardware to a verified, in-stock LDSTA-01 63940143 unit.

Whether your plant is operating ABB ACS series variable frequency drives, legacy NDCU or RMIO control units, or older SAMI or Masterdrives platforms, the LDSTA-01 63940143 board is engineered to restore full drive functionality with minimal rewiring and zero firmware re-architecture in compatible configurations. The board interfaces directly with the existing LDSTA backplane and retains the original I/O terminal mapping, allowing maintenance teams to execute a board-swap replacement during a planned shutdown window — typically within two to four hours — without modifying the surrounding control cabinet layout.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful LDSTA-01 63940143 board replacement rarely occurs in isolation. In most industrial retrofit projects, the control board swap is one element of a broader drive system restoration or upgrade. During the replacement process, maintenance engineers commonly address adjacent components that have reached the same service life threshold.

For ABB ACS800 and ACS600 series drives where the LDSTA-01 is installed, the RMIO-11C or RMIO-02C control units often require simultaneous inspection or replacement, as these boards share the same internal communication bus and power distribution architecture. If the drive’s DDCS fiber-optic communication link is involved, the NDCU-12C or NDCU-21C node distance control units may also need to be evaluated for compatibility with the replacement board’s firmware revision.

In cabinet-level retrofits, the AINT-02C or AINT-11C analog interface boards are frequently replaced alongside the LDSTA-01 to restore full analog I/O signal integrity. Similarly, the DINT-01C digital input board and DOUT-01C digital output board are common co-replacement items when the original control board failure has caused cascading signal faults across the I/O layer.

For facilities upgrading communication protocols as part of the migration — for example, transitioning from legacy serial DDCS to PROFIBUS DP or Modbus RTU — the RPBA-01 PROFIBUS adapter or RMBA-01 Modbus adapter modules can be integrated into the same drive chassis alongside the new LDSTA-01 board without requiring cabinet expansion. Power supply modules such as the APOW-01C are also commonly inspected and replaced during the same maintenance window to ensure stable 24 VDC supply to the new control board.

Where the drive system interfaces with an ABB Panel Builder or AC500 PLC controller upstream, the CP600 HMI operator panel or CP400 series touch panel may require a firmware update to maintain full communication compatibility with the restored drive. These co-replacement and co-upgrade components are all available through TOPNLMS, allowing procurement teams to consolidate sourcing and reduce lead time across the entire retrofit bill of materials.

Retrofit Guidance FAQ

Q: Does replacing the LDSTA-01 63940143 require rewiring the control cabinet?
A: No. The LDSTA-01 uses the same terminal block layout and backplane connector as earlier LDSTA-series revisions. In a direct board replacement, no rewiring is required. Technicians should verify terminal torque specifications per the ABB installation manual after seating the new board.

Q: Will the existing drive program need to be re-uploaded after the board swap?
A: In most direct replacement scenarios, the drive firmware and parameter set remain stored in the drive’s non-volatile memory or on the external parameter backup module (if fitted). The LDSTA-01 replacement does not erase drive parameters. However, ABB recommends performing a full parameter backup before any board replacement as a precautionary measure.

Q: Is the LDSTA-01 63940143 compatible with PROFIBUS DP and Modbus RTU fieldbus protocols?
A: The LDSTA-01 control board itself manages internal drive control logic. Fieldbus communication is handled by the separately mounted fieldbus adapter modules (e.g., RPBA-01 for PROFIBUS, RMBA-01 for Modbus). Replacing the LDSTA-01 does not affect the fieldbus adapter configuration, provided the adapter module is retained and undisturbed during the swap.

Q: What are the physical space requirements for installing the LDSTA-01 in an existing cabinet?
A: The LDSTA-01 63940143 has an identical board footprint to the original LDSTA-series control boards. No additional cabinet space, DIN rail modification, or mounting bracket change is required. The board slots directly into the existing LDSTA backplane position.

Q: How should the replacement board be tested before returning the drive to production?
A: After installation, perform a no-load power-up test with the motor disconnected. Verify all status LEDs on the LDSTA-01 board indicate normal operation per the ABB LDSTA hardware manual. Confirm I/O signal integrity using the drive’s diagnostic menu before reconnecting the motor load and resuming production.

Q: Can the LDSTA-01 63940143 be used as a spare board for multiple drives of the same series?
A: Yes. The LDSTA-01 is a universal replacement board within compatible LDSTA-series drive configurations. Procurement teams managing multi-drive installations are advised to maintain at least one spare LDSTA-01 board per production line to minimize unplanned downtime exposure.

Warranty Assurance

Every ABB LDSTA-01 63940143 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each board undergoes a pre-shipment functional inspection to verify board integrity, connector condition, and component-level visual quality. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides direct replacement support. Customers are not required to return the defective unit before a replacement is dispatched in qualifying cases — our after-sales team will assess each claim individually and prioritize rapid resolution to minimize your production downtime. Warranty claims are handled within 24–48 business hours of initial contact.

For procurement teams requiring documentation, TOPNLMS can provide a shipment inspection report, packing list, and commercial invoice with each order. Express shipping options are available for urgent replacement requirements, with dispatch from Xiamen typically within 1–2 business days of order confirmation.

To place an order, request a quotation, or discuss bulk procurement pricing for LDSTA-01 63940143 or related ABB LDSTA-series components, contact our technical sales team directly.
