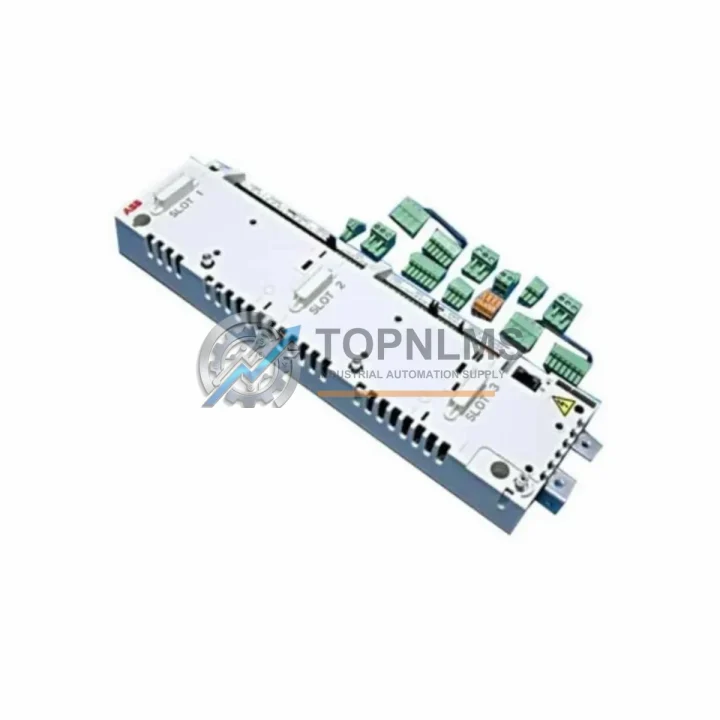

ABB JCU-11 Replacement Upgrade Solution for ACS880 ACS580

Product Overview

ABB JCU-11 Replacement Upgrade Solution for ACS880 ACS580: Smooth Transition from Legacy Drive Control Systems

The ABB JCU-11 is the dedicated control unit for ABB’s ACS880 and ACS580 series variable frequency drives (VFDs). For facilities running aging ACS800, ACS600, or third-party drive platforms, migrating to the JCU-11 represents a proven, low-risk path to modernizing motor control infrastructure without full drive replacement. Whether your existing system relies on a RDCO-02 communication adapter, an RMIO-11 I/O extension board, or a legacy NAMC-11 control board, the JCU-11 is engineered to integrate into your existing cabinet footprint with minimal rewiring and zero PLC program recompilation in most configurations.

Industrial facilities across power generation, water treatment, material handling, and process manufacturing have standardized on the ACS880 platform precisely because of the JCU-11’s flexibility. Its support for multiple fieldbus protocols—including PROFIBUS-DP via the RPBA-01 adapter, PROFINET via RETA-02, EtherNet/IP via RETA-01, and Modbus RTU natively—means that existing PLC communication architectures built around Siemens S7-300, Allen-Bradley ControlLogix, or Schneider Modicon M340 controllers can be preserved without gateway hardware or protocol conversion layers.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful JCU-11 migration rarely involves the control unit alone. In most retrofit projects, the JCU-11 is deployed alongside a suite of complementary ABB components that together ensure the upgraded drive system matches or exceeds the performance of the legacy installation.

For facilities transitioning from ACS800 drives with RDCO-02 PROFIBUS adapters, the equivalent RPBA-01 PROFIBUS-DP adapter slots directly into the JCU-11’s option slot 1 or 2, preserving the existing GSD file and PLC address mapping. No changes to the Siemens S7 hardware configuration are required in most cases. Similarly, sites running EtherNet/IP networks can deploy the RETA-01 EtherNet/IP adapter to maintain seamless communication with Allen-Bradley PLCs without any gateway or protocol bridge.

On the I/O side, the AIMA-01 analog I/O extension module and DIMA-01 digital I/O extension module expand the JCU-11’s native I/O capacity for complex process applications requiring additional feedback loops or interlock signals. These modules mount directly to the JCU-11 and are recognized automatically by Drive Composer Pro during commissioning.

For encoder-based closed-loop speed control applications—common in winding, hoisting, and precision conveyor systems—the FEN-01 TTL/HTL encoder interface module or FEN-11 absolute encoder interface provides the feedback path previously handled by the RTAC-01 in ACS800 installations. Wiring from existing encoder cables can typically be reused with minor terminal adaptation.

Power supply integrity is critical during migration. The SPSU-01 auxiliary power supply unit ensures the JCU-11 remains powered and retains parameter memory during main power interruptions—an essential feature for applications with frequent power cycling or emergency stop sequences. In multi-drive cabinet installations, the BAMU-01 battery module provides additional backup for parameter retention.

For panel-level HMI integration, the ACS-AP-I assistant control panel mounts to the drive door or remote panel and provides full parameter access, fault history, and real-time monitoring without a PC connection. This is particularly valuable during initial commissioning and field troubleshooting. The panel communicates via the JCU-11’s integrated panel bus, requiring no additional wiring beyond the panel cable.

Finally, for sites requiring galvanic isolation between the JCU-11’s analog outputs and field instrumentation—common in chemical processing and oil & gas environments—a signal isolator module (such as the Phoenix Contact MINI MCR-SL series or equivalent) is recommended at the terminal strip level to protect the JCU-11’s analog circuitry from ground loop interference.

Retrofit Guidance FAQ

Q: Can I reuse existing ACS800 wiring when installing the JCU-11 in an ACS880 drive?
A: In most cases, yes. The JCU-11’s terminal block layout for digital and analog I/O follows the same signal conventions as the RMIO-11 board used in ACS800 drives. Terminal-by-terminal mapping is provided in ABB Technical Guide No. 4 (Firmware Manual for ACS880). Minor rewiring may be required for relay output terminals, which have been repositioned in the ACS880 control section.

Q: Will my existing PROFIBUS GSD file work with the RPBA-01 on the JCU-11?
A: Yes. The RPBA-01 uses the same GSD file as the RDCO-02 for standard PPO message types (PPO1–PPO5). If your PLC program uses ABB’s standard drive profile (CiA 402 or ABB Drives profile), no changes to the PLC hardware configuration or function block library are required.

Q: How do I transfer parameters from the old ACS800 to the new ACS880/JCU-11?
A: Parameter migration is performed using Drive Composer Pro. While direct parameter file import from DriveWindow 2 is not supported, ABB provides a parameter mapping table in the ACS880 Firmware Manual (Appendix: Parameter Mapping from ACS800). Key parameters—speed references, acceleration/deceleration ramps, current limits, and PID setpoints—map directly with minor scaling adjustments.

Q: Does the JCU-11 fit in the same cabinet space as the ACS800 control section?
A: The JCU-11 is a plug-in module for the ACS880/ACS580 drive frame and does not occupy independent cabinet DIN rail space. If you are replacing an ACS800 drive with an ACS880, the overall drive frame dimensions should be verified against your cabinet cutout. ACS880-01 (wall-mount) and ACS880-07 (cabinet-mount) frames are available to match most existing installation footprints.

Q: What communication protocols does the JCU-11 support natively?
A: The JCU-11 supports Modbus RTU natively via its RS-485 port. All other fieldbus protocols (PROFIBUS-DP, PROFINET, EtherNet/IP, DeviceNet, CANopen) require the corresponding option module installed in the JCU-11’s option slots 1 or 2.

Q: Can the JCU-11 be used as a spare/replacement for a failed control unit without full drive replacement?
A: Yes. The JCU-11 is designed as a field-replaceable module. Parameters stored on the MFDT-01 memory unit can be transferred to a new JCU-11 in under 10 minutes, minimizing production downtime. TOPNLMS maintains stock of JCU-11 units for immediate dispatch to support emergency replacement scenarios.

Warranty Assurance

Every ABB JCU-11 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including power-on self-test, I/O continuity check, and firmware version confirmation. Units are shipped in original or equivalent anti-static packaging with full documentation.

In the event of a warranty claim, TOPNLMS provides a direct replacement or repair service with a target response time of 2 business days for standard cases. Emergency replacement stock is maintained for critical applications. Our technical team is available to support installation, commissioning, and fault diagnosis remotely via email or phone.

For bulk procurement, OEM integration projects, or system integrator partnerships, TOPNLMS offers volume pricing, consignment stock arrangements, and extended warranty options. All units are sourced through verified supply channels and are accompanied by traceability documentation upon request.
