ABB IMCIS22 Replacement Upgrade Solution for AC500

Product Overview

ABB IMCIS22 Replacement Upgrade Solution for AC500: Seamless Transition from Legacy Control Systems

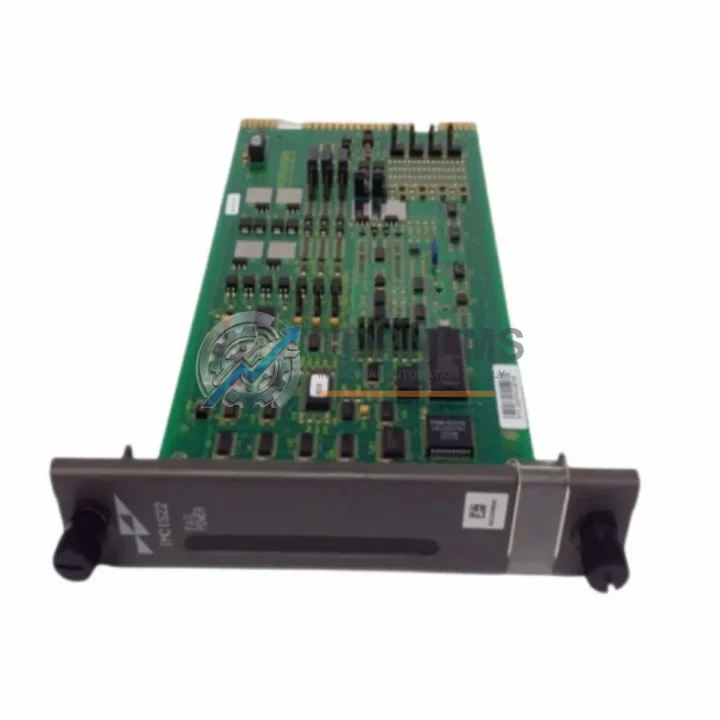

The ABB IMCIS22 is a high-performance communication and control I/O module designed for the ABB AC500 PLC platform — one of the most widely deployed programmable logic controller families in industrial automation, process control, and infrastructure applications worldwide. As legacy AC500 installations age and original ABB IMCIS22 units reach end-of-service or become increasingly difficult to source through standard distribution channels, plant engineers and procurement teams face mounting pressure to identify reliable, drop-in replacement solutions that preserve existing wiring infrastructure, control logic, and system architecture without triggering a full-scale control system overhaul.

TOPNLMS specializes in sourcing, testing, and supplying hard-to-find ABB AC500 series modules — including the IMCIS22 — to support exactly this kind of targeted, cost-effective modernization. Whether you are replacing a failed unit on an active production line, building a critical spare inventory, or executing a phased migration away from an aging AC500 rack, the IMCIS22 units we supply are fully tested, original ABB hardware, shipped from our Xiamen facility with a 12-month replacement warranty.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful AC500 system migration or emergency replacement rarely involves a single module in isolation. In practice, restoring or upgrading an AC500-based control system requires coordinated attention to the surrounding hardware ecosystem. When replacing the IMCIS22, engineers typically also evaluate the condition and availability of the AC500 CPU module — such as the PM573 or PM583 — which serves as the central processing unit governing all I/O communication across the rack. If the CPU firmware has been updated or the hardware generation has changed, confirming IMCIS22 compatibility with the installed CPU variant is a critical first step before commissioning.

The AC500 rack or backplane itself — including variants like the TB521 or TB541 — must be inspected for slot integrity and backplane bus continuity, particularly in installations where thermal cycling or vibration has been a factor over years of operation. Alongside the IMCIS22, digital input modules such as the DI524 or DI581 and digital output modules like the DO524 are frequently replaced as part of the same maintenance window, since I/O modules in the same rack often share similar operational age and failure patterns.

For installations that rely on analog signal processing, analog input modules such as the AI523 or AI531 may also require attention, especially where sensor drift or signal degradation has been attributed to aging module hardware rather than field instrumentation. Communication continuity is another key consideration: if the AC500 system interfaces with a PROFIBUS DP network, the CM572-DP communication module must remain operational and correctly configured to ensure that the replaced IMCIS22 is recognized by the master controller without requiring a full GSD re-import or network reconfiguration.

In control cabinet environments where space is constrained, the physical dimensions and mounting orientation of replacement modules must be verified against the existing cabinet layout. Terminal blocks and signal isolators — particularly where 24VDC field signals interface with the AC500 I/O bus — should be inspected and replaced if contact resistance has increased due to age or environmental exposure. Power supply modules, including the CP502 or CP504, should be load-tested after any module replacement to confirm that the rack’s power budget remains within specification with the new IMCIS22 installed.

For sites executing a phased migration from an older AC500 generation to a newer AC500-S or AC500-eCo platform, the IMCIS22 can serve as a bridging component during the transition period, maintaining operational continuity on legacy rack segments while new hardware is commissioned in parallel. This approach minimizes production downtime and allows engineering teams to validate new control logic against live process data before completing the cutover.

Retrofit Guidance FAQ

Q: Can I replace the IMCIS22 without modifying existing field wiring?
A: Yes. The IMCIS22 uses the same terminal and slot interface as the original AC500 I/O module it replaces. Field wiring connected to the terminal block assembly can remain in place. Simply remove the failed module, insert the replacement IMCIS22 into the same rack slot, and restore power. No rewiring is required for a direct 1:1 replacement.

Q: Will my existing CoDeSys or PS501 control program need to be modified?
A: For a direct replacement of the same IMCIS22 model, no program modification is required. The replacement module will be recognized by the AC500 CPU using the existing hardware configuration. If you are migrating from a different I/O module type or changing the rack slot assignment, a hardware configuration update in the PS501 programming environment will be necessary before downloading to the CPU.

Q: Is the IMCIS22 compatible with both CS31 bus and the AC500 internal backplane bus?
A: The IMCIS22 communicates via the AC500 internal I/O bus through the rack backplane. Compatibility with CS31 remote I/O expansion depends on the specific system configuration and CPU variant. Please confirm your system’s communication architecture with your engineering team or contact TOPNLMS with your full system configuration for pre-sale compatibility verification.

Q: What physical space does the IMCIS22 require in the control cabinet?
A: The IMCIS22 occupies a standard AC500 rack slot. No additional cabinet space or mounting hardware is required beyond the existing rack installation. Ensure the rack slot is clean and the backplane connector is undamaged before inserting the replacement module.

Q: How do I verify the replacement IMCIS22 is functioning correctly after installation?
A: After installation, power up the AC500 rack and observe the module status LEDs. Use the PS501 Control Builder or ABB Automation Builder software to go online with the CPU and verify that the IMCIS22 appears in the hardware configuration with a healthy status. Check I/O channel diagnostics to confirm signal integrity across all connected field devices before returning the system to automatic operation.

Q: Can TOPNLMS supply the IMCIS22 for urgent or emergency replacement requirements?
A: Yes. TOPNLMS maintains stock of the IMCIS22 and other AC500 series modules at our Xiamen facility. Emergency orders are processed with priority dispatch. Contact us at [email protected] or +86 18359293191 to confirm availability and arrange expedited shipping to your site.

Warranty Assurance

Every ABB IMCIS22 module supplied by TOPNLMS is covered by a 12-Month Replacement Warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional test protocol to verify module initialization, backplane communication, and I/O channel integrity. Units that do not pass our outgoing quality inspection are not shipped.

In the event of a warranty claim, TOPNLMS will arrange replacement dispatch upon receipt and inspection of the returned unit. Our after-sales response target is 24–48 hours for warranty case acknowledgment. Replacement units are shipped from Xiamen with full tracking and insurance coverage.

For procurement teams requiring documentation, TOPNLMS can provide a test report, packing list, and commercial invoice with each shipment. We support standard B2B procurement workflows including purchase order processing, proforma invoice issuance, and TT/wire transfer payment terms.
