ABB HITE303018R1 IDB550A Replacement for DP800 Series

Product Overview

ABB HITE303018R1 IDB550A Replacement for DP800 Series: Seamless Migration & Upgrade Solution

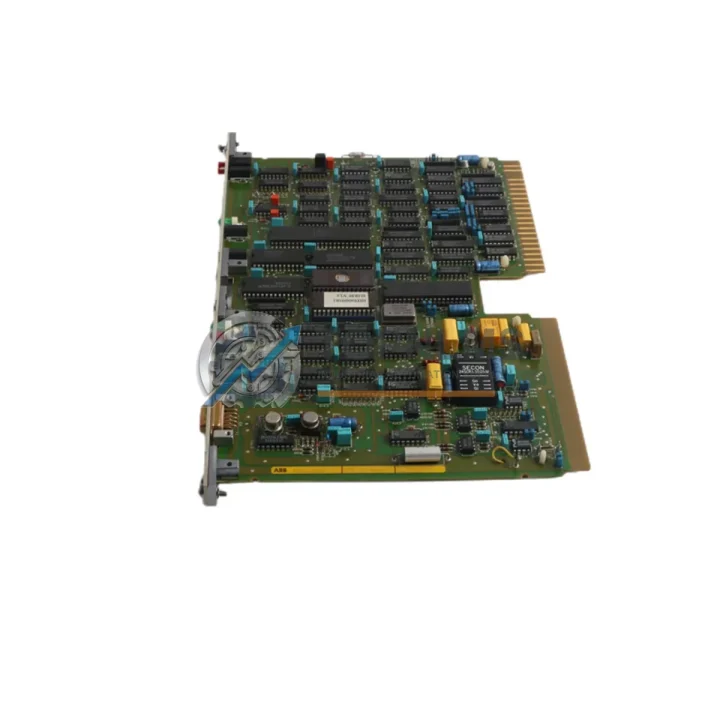

The ABB HITE303018R1 IDB550A is a PROFIBUS DP interface module designed for the ABB DP800 series drive and control platform. As legacy DP800 installations age and original modules reach end-of-life or become increasingly difficult to source, plant engineers and procurement teams face mounting pressure to maintain system uptime without triggering a full drive replacement. TOPNLMS supplies verified HITE303018R1 IDB550A units from stock, enabling a direct drop-in replacement that preserves your existing wiring infrastructure, PROFIBUS DP network topology, and drive parameter configuration — minimizing both engineering hours and production downtime.

Whether you are managing a single-drive retrofit in a pump or fan application, or coordinating a phased migration across a multi-drive conveyor or compressor system, the HITE303018R1 IDB550A delivers the same PROFIBUS DP slave functionality as the original factory-fitted module. The module slots directly into the DP800 drive’s option slot, requiring no modification to the existing fieldbus cable, DB9 connector, or network termination resistors. PROFIBUS DP baud rates up to 12 Mbit/s are supported, ensuring full compatibility with Siemens S7-300, S7-400, and S7-1500 PLC masters, as well as ABB AC500 controllers and third-party PROFIBUS masters commonly found in legacy DCS environments.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DP800 PROFIBUS migration rarely involves a single component. In practice, field engineers replacing the HITE303018R1 IDB550A often simultaneously address adjacent system elements to ensure long-term reliability. The DP800 drive’s internal control board — typically the SDCS-CON-4 or equivalent ABB drive control unit — should be inspected for firmware currency before the new interface module is commissioned, as outdated firmware can cause unexpected PROFIBUS timeout faults after module replacement.

On the network side, the PROFIBUS DP cable segment connected to the DP800 drive should be verified for correct termination. If the drive sits at the end of the PROFIBUS segment, the DB9 termination plug (a passive resistor network) must be active; failure to terminate correctly is a common cause of intermittent communication errors that are mistakenly attributed to the interface module itself. Where the existing PROFIBUS cable is aged or shows high capacitance, replacing the segment with a new Type A PROFIBUS cable — shielded, twisted pair, 150 Ω impedance — eliminates a significant source of latent faults.

For installations where the DP800 drive is controlled via an ABB AC500 PLC, the AC500’s PROFIBUS master module (such as the CM572-DP) should be confirmed as compatible with the GSD file version used by the HITE303018R1 IDB550A. In multi-drive systems, the PROFIBUS master’s cycle time configuration may need adjustment if additional slave nodes have been added since the original commissioning. Similarly, if the control cabinet houses an ABB Panel Builder 600 or CP600 HMI, the drive’s PROFIBUS node address and process data mapping should be verified against the HMI project before the replacement module is powered up.

Where the DP800 drive is integrated into a larger ABB System 800xA DCS environment, the PROFIBUS segment may pass through an ABB CI854 PROFIBUS DP interface module mounted in an S800 I/O station. In these architectures, the CI854 acts as the PROFIBUS master, and the HITE303018R1 IDB550A replacement requires no changes to the CI854 configuration or the 800xA control application — provided the drive’s PROFIBUS node address is preserved during the swap. For plants running ABB Freelance DCS with AC700F or AC900F controllers, the same principle applies: the replacement module is transparent to the DCS layer as long as the node address and GSD-defined process data structure remain unchanged.

In retrofit projects where the DP800 drive itself is being replaced by a newer ABB ACS880 or ACS580 drive, the HITE303018R1 IDB550A can serve as a bridging solution — keeping the existing DP800 operational on the PROFIBUS network while the new drive is commissioned in parallel on a separate network segment, reducing the risk of a hard cutover. Once the ACS880 is validated, the PROFIBUS master configuration is updated to point to the new drive’s FENA-21 Ethernet adapter or FPBA-01 PROFIBUS adapter, and the DP800 is decommissioned in a controlled sequence.

Retrofit Guidance FAQ

Q: Do I need to modify the PROFIBUS wiring when replacing the HITE303018R1 IDB550A?
No. The replacement module uses the same DB9 female connector and the same PROFIBUS DP physical layer as the original. Disconnect the existing PROFIBUS cable from the old module, remove the old module from the option slot, insert the new HITE303018R1 IDB550A, and reconnect the cable. No rewiring is required.

Q: Will I need to modify my PLC program after the replacement?
No. The HITE303018R1 IDB550A uses the same GSD file and the same PROFIBUS DP process data structure as the original module. Your Siemens S7, ABB AC500, or other PROFIBUS master will recognize the replacement module without any changes to the hardware configuration or the control program.

Q: What PROFIBUS baud rates are supported?
The module supports all standard PROFIBUS DP baud rates from 9.6 kbit/s up to 12 Mbit/s. The baud rate is auto-detected from the PROFIBUS master — no manual configuration is required on the module itself.

Q: Can the replacement be performed while the drive is in the control cabinet without removing the drive from the panel?
Yes, provided the drive is safely de-energized and locked out in accordance with your site’s LOTO procedure. The option slot is accessible from the front of the DP800 drive without removing the drive from the cabinet. Typical swap time is under 15 minutes for a trained technician.

Q: What if the drive loses its parameters after the module swap?
Drive parameters are stored in the DP800’s internal non-volatile memory, not in the PROFIBUS interface module. Replacing the HITE303018R1 IDB550A does not affect drive parameters. However, TOPNLMS recommends backing up the drive parameter set using ABB DriveStudio or the drive’s keypad before any maintenance intervention.

Q: Is the module compatible with PROFIBUS PA or only PROFIBUS DP?
The HITE303018R1 IDB550A supports PROFIBUS DP only. PROFIBUS PA is a separate physical layer used primarily in process instrumentation and is not applicable to DP800 drive communication.

Q: What if my DP800 drive is installed in a hazardous area or marine environment?
The standard HITE303018R1 IDB550A is rated for industrial environments per the DP800 drive’s environmental specification. For ATEX, IECEx, or marine classification requirements, please contact TOPNLMS at [email protected] to confirm the applicable certification status before ordering.

Warranty Assurance

Every HITE303018R1 IDB550A unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each module undergoes a pre-shipment functional inspection to verify physical integrity, connector condition, and identification label accuracy. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund, subject to inspection of the returned module. Our after-sales response target is within 24 hours on business days. Warranty coverage includes manufacturing defects and functional failures under normal operating conditions; it does not cover damage resulting from incorrect installation, overvoltage, or unauthorized modification.

TOPNLMS maintains stock of HITE303018R1 IDB550A and related DP800 series components to support rapid dispatch. Standard shipping from our Xiamen warehouse reaches most destinations in Asia within 3–5 business days, and international destinations within 5–10 business days depending on customs clearance. Express courier options are available on request.

For volume procurement, project-based quotations, or technical pre-sales consultation, contact our industrial automation team directly.
