ABB HIEE401238R1 XVB363AE Symphony Plus DCS Upgrade

Product Overview

ABB HIEE401238R1 XVB363AE Symphony Plus DCS Upgrade: Seamless Migration & Legacy System Compatibility

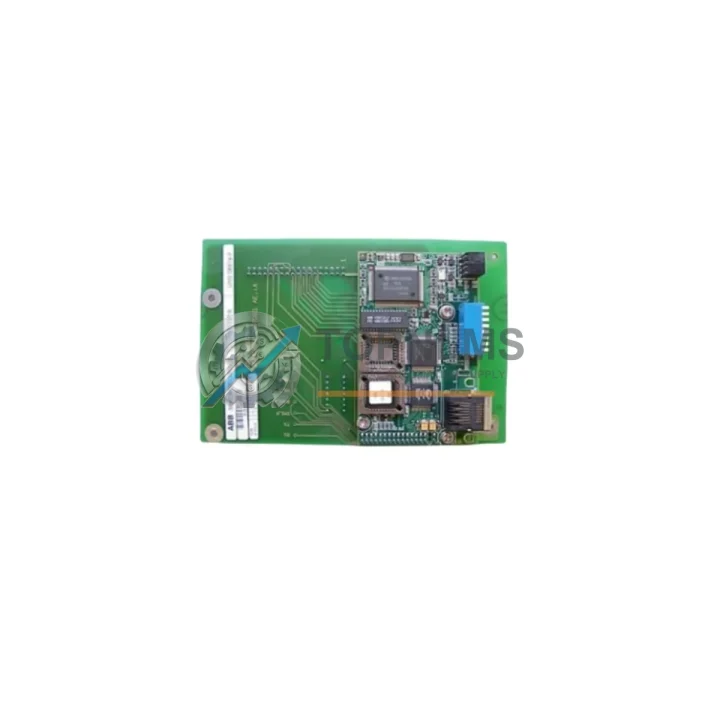

The ABB HIEE401238R1 XVB363AE is a high-performance communication interface board designed for the ABB Symphony Plus Distributed Control System (DCS) platform. As legacy Symphony Harmony and Melody series installations approach end-of-life, plant engineers and procurement teams are actively seeking verified replacement and upgrade paths that minimize engineering rework, reduce downtime, and preserve existing field wiring investments. This module serves as the primary communication bridge between the Symphony Plus controller backplane and the plant-wide process network, supporting PROFIBUS DP, INFI-NET, and Ethernet-based supervisory architectures.

For facilities migrating from earlier ABB Harmony DCS hardware — including boards such as the DSCS110, DSCS130, or DSMB127 — the HIEE401238R1 XVB363AE provides a structured upgrade path within the same Symphony Plus rack infrastructure. The module slots directly into the Symphony Plus S+ Operations controller chassis, eliminating the need for new cabinet fabrication or major I/O rewiring in most retrofit scenarios. Existing field termination assemblies and marshalling panels can typically be retained, significantly reducing installation labor and commissioning time.

When replacing a failed or obsolete communication board in a running Symphony Plus system, the HIEE401238R1 XVB363AE supports hot-swap procedures under controlled conditions, allowing maintenance teams to restore communication links without a full system shutdown. This is particularly valuable in continuous-process industries such as petrochemical, power generation, pulp and paper, and water treatment, where unplanned downtime carries significant operational cost.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Symphony Plus DCS migration involves more than swapping a single communication board. During the upgrade process, engineers typically evaluate and source several interdependent components to ensure system integrity. The HIEE401238R1 XVB363AE is most commonly deployed alongside the HIEE401239R1 XVB363AF redundant communication module, which pairs with this board to provide controller-level communication redundancy — a critical requirement in safety-instrumented and high-availability process environments.

On the I/O side, migration projects frequently involve the HIEE300900R1 and HIEE300901R1 analog input/output modules, which interface with the same Symphony Plus backplane and share the PROFIBUS DP communication segment managed by the XVB363AE board. Ensuring these I/O modules are at compatible firmware revisions is a standard commissioning step before bringing the upgraded communication board online.

For facilities that retain legacy INFI-NET field devices or remote I/O drops, the INNIS21 INFI-NET interface module and associated NTAI09 termination units are commonly sourced as part of the same upgrade kit, allowing the new communication board to maintain backward compatibility with installed field infrastructure without requiring a full I/O replacement campaign.

Power supply integrity is equally important during a DCS communication board replacement. The HIEE300936R1 power supply module, which feeds the Symphony Plus controller rack, should be inspected and replaced if it shows signs of aging — particularly in installations where the original Harmony hardware has been in service for more than ten years. A stable 24 VDC backplane supply is a prerequisite for reliable operation of the HIEE401238R1 XVB363AE.

Programming and configuration of the replacement board is performed using ABB’s Control Builder Plus engineering workstation software, connected via the TK212A USB-to-serial programming cable or Ethernet engineering port. For sites still using older Symphony Composer toolsets, a software migration step is typically required before the new communication module can be fully parameterized. The NTCL01 communication link terminator and NKTU01 bus termination resistor pack are also commonly required when reconfiguring the PROFIBUS DP segment topology after board replacement.

Finally, for projects that include HMI modernization alongside the DCS communication upgrade, the ABB CP635 or CP651 operator panel series integrates natively with Symphony Plus via the same Ethernet supervisory network, providing a straightforward path to modernize the operator interface without disrupting the underlying control strategy.

Retrofit Guidance FAQ

Q: Can the HIEE401238R1 XVB363AE directly replace a DSCS110 or DSCS130 from a Harmony DCS system?
A: Not as a direct plug-in swap. The Harmony and Symphony Plus platforms use different backplane architectures. A migration project will require a Symphony Plus controller chassis and appropriate FTA (Field Termination Assembly) adapters. However, existing field wiring from the marshalling cabinet to the FTAs can typically be retained, minimizing rewiring scope.

Q: What communication protocols does this board support, and are they backward compatible with legacy INFI-NET devices?
A: The XVB363AE supports PROFIBUS DP (IEC 61158), INFI-NET, and Ethernet. INFI-NET backward compatibility allows legacy remote I/O and field devices to remain on the network during a phased migration, reducing the need for a full cutover.

Q: Does replacing this board require a full DCS shutdown?
A: Under standard procedures, replacing the communication board requires taking the affected controller offline. In redundant configurations (paired with HIEE401239R1 XVB363AF), the redundant controller can maintain process control while the primary board is replaced, significantly reducing process impact.

Q: What programming changes are needed after installing the replacement board?
A: In most cases, the existing control application loaded in the Symphony Plus controller does not require modification. The communication board parameters (node address, baud rate, protocol settings) must be re-entered using Control Builder Plus. A full I/O force test and loop check is recommended before returning the system to automatic control.

Q: Is the physical footprint and mounting compatible with the existing control cabinet?
A: Yes. The HIEE401238R1 XVB363AE is a standard single-slot Symphony Plus module. It fits the same 19″ rack positions as other Symphony Plus controller and communication modules, requiring no cabinet modification in a like-for-like replacement scenario.

Q: What is the lead time and shipping arrangement?
A: Units are stocked and dispatched from Xiamen, China. Standard international express delivery (DHL / FedEx) typically reaches most destinations within 3–7 business days. Expedited same-day dispatch is available for orders confirmed before 14:00 CST.

Warranty Assurance

Every HIEE401238R1 XVB363AE unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a multi-point outgoing inspection that includes visual examination, connector integrity verification, and functional power-on testing where applicable. Units are packed in anti-static ESD shielding bags, placed in foam-lined cartons, and sealed with tamper-evident tape to ensure safe transit.

In the event of a warranty claim, TOPNLMS provides a replacement-first policy: a verified replacement unit is dispatched promptly upon confirmation of the defect, minimizing the impact on your production schedule. Return shipping of the defective unit is coordinated by our after-sales team. Our technical support team is available via email and phone to assist with installation questions, compatibility verification, and commissioning guidance throughout the warranty period and beyond.

For procurement teams requiring documentation, we can provide a certificate of conformity, packing list, and commercial invoice with each shipment. Bulk orders and long-term supply agreements are supported with priority allocation and preferential lead times.
