ABB HIEE305120R0002 Ruggedized DC Power Supply Module

Product Overview

ABB HIEE305120R0002 Ruggedized DC Power Supply Module: Industrial Resilience for Harsh Environments

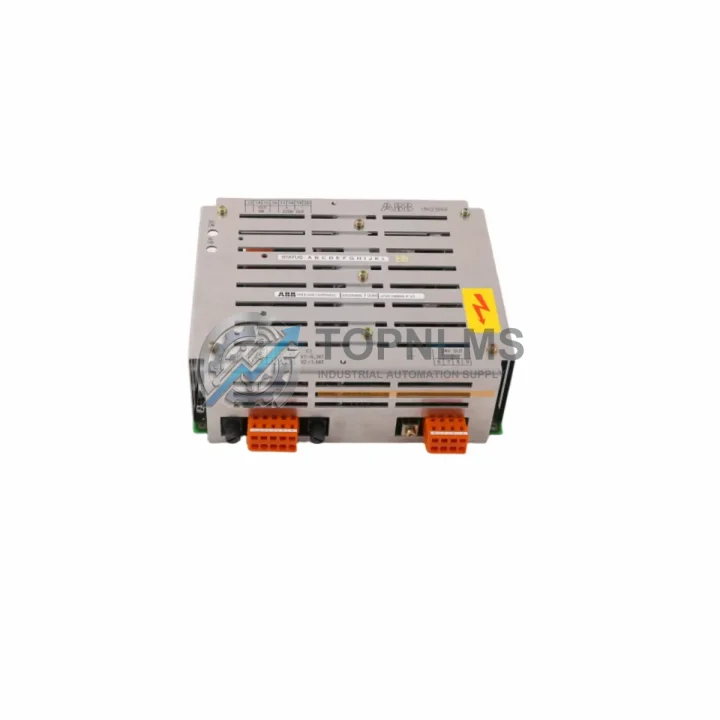

The ABB UNS 0861A-P HIEE305120R0002 is a regulated DC power supply module engineered for continuous, fault-tolerant operation within the ABB ADVANT Master distributed control system (DCS) architecture. Designed to deliver stable, conditioned DC power to mission-critical control loops, this module maintains output integrity under the demanding conditions found in heavy industry — including high ambient temperatures, elevated humidity, airborne particulate contamination, mechanical vibration, and broadband electromagnetic interference (EMI). Whether installed in a sealed control cabinet on an offshore platform or a dusty substation in a metallurgical plant, the HIEE305120R0002 provides the power backbone that keeps your automation infrastructure running without interruption.

As a direct replacement and spare part for the ADVANT Master series, this module slots into existing rack assemblies without hardware modification, preserving your installed base investment and minimizing planned maintenance downtime. Its ruggedized internal design — featuring conformal-coated PCBs, wide-range input tolerance, and over-voltage/over-current protection circuitry — makes it a preferred choice for facilities where unplanned shutdowns carry significant safety and financial consequences.

Rugged Specifications Table

Comprehensive Protection Solutions

The HIEE305120R0002 does not operate in isolation — it is the power foundation upon which an entire ADVANT Master control node depends. In a fully configured DCS cabinet, this module supplies conditioned DC power to the ABB DSPC 172 processor module, which executes the real-time control algorithms governing your process. Alongside it, ABB DSDP 150 digital I/O modules and DSAI 130 analog input modules rely on stable rail voltage to maintain accurate signal acquisition from field transmitters and sensors. Any ripple or dropout in the supply directly compromises measurement fidelity and control response.

In plants where process continuity is non-negotiable, the power supply module works in conjunction with ABB DSTA 131 communication modules to sustain MASTERBUS or MODULEBUS network integrity — ensuring that supervisory SCADA systems and operator workstations maintain live data exchange with the field. Redundant power configurations, where a second HIEE305120R0002 unit operates in hot-standby, are common in high-availability installations such as power generation turbine control and refinery distillation column management.

Beyond the DCS backplane, the broader control cabinet ecosystem depends on complementary protection hardware. Phoenix Contact QUINT-series 24 VDC industrial power supplies often serve as upstream AC/DC converters feeding the ADVANT rack, while Weidmüller or Phoenix Contact surge protection terminal blocks guard against transient overvoltages induced by nearby motor starts or lightning events. Schneider Electric Zelio or ABB CR-series safety relays provide hardwired emergency stop and safety interlock functions that operate independently of the DCS software layer, ensuring personnel protection even during a controller fault. Moxa or Hirschmann industrial Ethernet switches with DIN-rail mounting handle plant network segmentation, isolating the DCS control network from the corporate IT domain to prevent cybersecurity exposure.

For facilities running mixed-vendor automation architectures, the HIEE305120R0002 can coexist in the same control room as Siemens SIMATIC S7-400 or S7-300 PLC racks, Honeywell Experion PKS C300 controllers, or Emerson DeltaV M-series I/O cards — each system drawing from its own dedicated power supply while sharing a common field instrument loop. This interoperability makes the ABB module a practical spare-parts investment for multi-vendor plant environments where a single procurement source for critical components reduces administrative overhead.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities — wellhead control panels, gas compression stations, and pipeline SCADA nodes — the HIEE305120R0002 must perform reliably in environments where ambient temperatures fluctuate widely between day and night cycles, and where hydrogen sulfide (H₂S) and hydrocarbon vapors demand that all electrical equipment meet stringent enclosure and material standards. The module’s conformal-coated PCB and robust connector design resist corrosive atmospheric attack, making it suitable for installation in Zone 2 classified areas when housed within appropriately rated enclosures.

In coal-fired and combined-cycle power generation plants, the ADVANT Master DCS governs boiler combustion control, turbine speed regulation, and balance-of-plant systems. The HIEE305120R0002 sustains the processor and I/O subsystems through load-following transients, grid disturbances, and the high-EMI environment created by large generator excitation systems and high-voltage switchgear. Continuous operation over multi-year maintenance intervals — common in baseload generation — demands a power supply module with proven long-term reliability, and the HIEE305120R0002’s heritage in ABB’s ADVANT platform, which has accumulated decades of field hours globally, provides that assurance.

In mining and mineral processing operations — from underground ore extraction to surface concentrator plants — vibration from blasting, crushing, and conveyor systems subjects control cabinet components to constant mechanical stress. The HIEE305120R0002’s rack-mount form factor and secure connector engagement resist vibration-induced contact failures that can cause intermittent faults far more difficult to diagnose than outright failures. Metallurgical facilities processing aluminum, copper, or steel operate continuous casting and rolling lines where a DCS power supply failure can result in product loss, equipment damage, and significant safety hazards to personnel working near molten metal.

In municipal and industrial water and wastewater treatment plants, the DCS manages dosing pumps, aeration blowers, clarifier drives, and UV disinfection systems around the clock. The high-humidity environment of pump stations and wet wells, combined with the chemical vapors from chlorination and pH adjustment processes, creates a corrosive atmosphere that challenges unprotected electronics. The HIEE305120R0002’s environmental tolerance makes it a dependable choice for these installations, where regulatory compliance and public health obligations make system uptime a legal as well as operational requirement.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures occurring under normal operating conditions as specified in the ABB ADVANT Master documentation. If a module fails within the warranty period, contact TOPNLMS at [email protected] with your order reference and a description of the fault. We will arrange return shipping, perform functional verification, and provide a replacement or repair at no additional cost. Warranty does not cover damage resulting from incorrect installation, overvoltage events beyond rated limits, or physical mishandling.

Q2: How is each unit tested before shipment?
Every HIEE305120R0002 unit undergoes pre-shipment functional verification including DC output voltage measurement under load, protection circuit activation testing (over-voltage and over-current trip), and visual inspection for connector integrity and PCB condition. Units sourced as surplus new are inspected for original factory seals and date codes. Refurbished units are fully reconditioned and tested to the same functional standard. A test report is available upon request for critical infrastructure procurement.

Q3: Is this module compatible with all ADVANT Master rack configurations, and can it replace other HIEE305120 variants?
The HIEE305120R0002 is designed for the ABB ADVANT Master DCS platform and is form-fit-function compatible with standard ADVANT rack assemblies. It is the R0002 revision of the HIEE305120 base part number. Compatibility with specific rack types and adjacent modules should be verified against your system’s hardware configuration documentation. TOPNLMS technical staff can assist with cross-referencing your existing hardware to confirm suitability before purchase — contact us with your system’s hardware list for a compatibility review.

Q4: Can you guarantee long-term supply, and what are the lead times for repeat orders?
TOPNLMS maintains dedicated inventory of ADVANT Master series components, including the HIEE305120R0002, to support customers with long-term maintenance contracts and planned outage schedules. For in-stock units, standard lead time is 1–3 business days for international express shipment. For larger quantity requirements or scheduled blanket orders, contact [email protected] to discuss reserved stock arrangements. We actively source from verified global surplus channels to maintain availability for legacy DCS platforms that are no longer in active production.
