ABB HIEE300698R0001 KUC321 AE01 Original Industrial Spare AC800M Compatible

Product Overview

ABB HIEE300698R0001 KUC321 AE01 Original Industrial Spare AC800M Compatible: System Stability and Industrial Spare Parts Maintenance Value

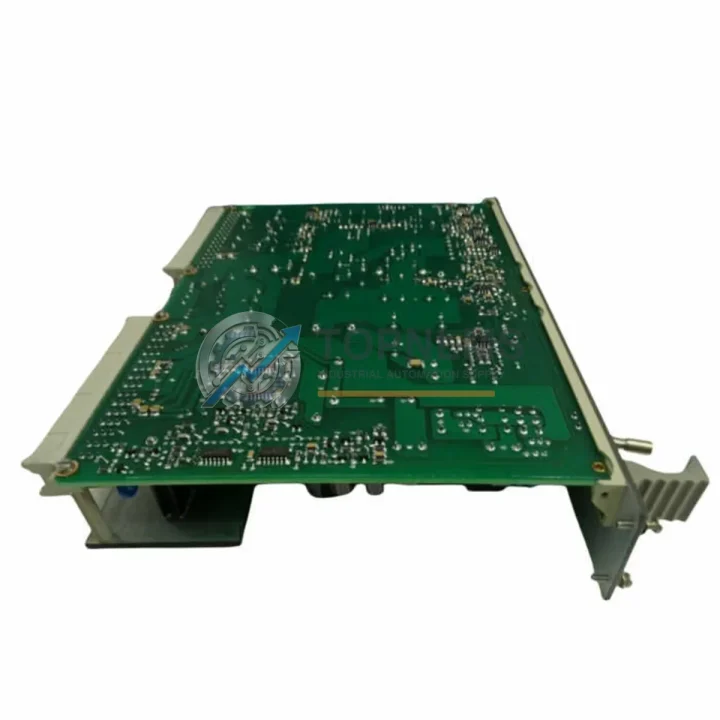

The ABB HIEE300698R0001 KUC321 AE01 is an original DCS power supply board engineered for the ABB AC800M and Advant Series distributed control systems. In process-critical environments — petrochemical plants, power generation facilities, pulp and paper mills, and large-scale manufacturing lines — the power supply board is the backbone of controller stability. A degraded or failed KUC321 AE01 can cascade into a full controller shutdown, triggering unplanned downtime that costs far more than the component itself.

Sourced directly from ABB’s original manufacturing supply chain and verified against factory specifications, this unit is a genuine replacement that preserves the electrical integrity and communication reliability of your existing AC800M or Advant controller cabinet. Whether you are executing a scheduled turnaround, responding to an emergency fault, or building a strategic spare parts inventory, the HIEE300698R0001 KUC321 AE01 is the correct, compatible, and immediately deployable solution.

Critical Technical Specs

Preventive Maintenance Strategy

A power supply board failure rarely occurs in isolation. In the ABB AC800M and Advant controller architecture, the HIEE300698R0001 KUC321 AE01 works in close electrical dependency with several other modules. During any scheduled inspection or corrective maintenance event involving this board, experienced maintenance engineers routinely extend their scope to verify the condition of adjacent components — a practice that significantly reduces the probability of repeat callouts and unplanned production stoppages.

When replacing or inspecting the KUC321 AE01, it is best practice to simultaneously check the HIEE300698R0002 KUC321 AE02 redundant power supply module if your system runs in a redundant power configuration, as both units share the same backplane load. The HIEE401876R0001 DSQC508 communication interface board and the HIEE300024R0001 DSMB176 memory backup module should also be inspected, since power transients during a supply board failure can corrupt volatile memory and communication state — issues that may not surface immediately but will manifest as intermittent faults during the next production cycle.

At the I/O level, verify the integrity of your AI810 analog input modules and DI810 digital input modules — these are the first components to exhibit erratic behavior when backplane power quality degrades. Similarly, inspect the AO810 analog output modules for calibration drift that may have occurred during the fault period. The CI854 PROFIBUS communication module and CI801 FOUNDATION Fieldbus interface should be checked for communication error logs, as power instability is a leading cause of fieldbus segment faults that can affect entire process loops.

Do not overlook the physical infrastructure: terminal blocks, cable connectors, and the 24 VDC external power feed to the controller cabinet. Loose terminal connections and aged cable insulation are common root causes of intermittent power supply board faults. A thorough inspection of the cabinet’s DSBC176 battery backup unit and associated fuse modules will complete a comprehensive preventive maintenance cycle and restore full system confidence before the next scheduled production run.

Strategic Replacement Solutions

The ABB AC800M and Advant Series represent a generation of DCS infrastructure that remains deeply embedded in global process industries. Many facilities operate these systems well beyond their original design lifecycle — not because of negligence, but because the control logic, loop tuning, and process integration represent years of engineering investment that cannot be easily migrated. The HIEE300698R0001 KUC321 AE01 is a direct, pin-compatible replacement for the original factory-installed unit, requiring no firmware changes, no reconfiguration, and no recalibration of connected I/O.

For facilities managing aging Advant OCS or AC800M systems, maintaining a strategic stock of this power supply board eliminates the most common single point of failure in the controller cabinet. Unlike third-party alternatives that may introduce voltage tolerance deviations or backplane compatibility issues, the original ABB KUC321 AE01 guarantees full electrical compatibility with the existing rack, backplane bus, and redundancy switchover logic. This is particularly critical in redundant controller configurations where a non-compliant replacement can disable the automatic failover function — converting a manageable maintenance event into a full process shutdown.

Procurement teams managing multi-site operations or long-term service contracts will find that stocking one or two units of the HIEE300698R0001 per controller cluster reduces mean time to repair (MTTR) from days — the typical lead time for emergency procurement — to hours. This translates directly into reduced production loss exposure and lower total cost of ownership over the system’s extended service life. Combined with a structured inspection schedule covering the AI810, DI810, CI854, and associated terminal infrastructure, a proactive spare parts strategy built around the KUC321 AE01 delivers measurable improvements in plant availability and maintenance budget predictability.

Support FAQ

Q1: Is the HIEE300698R0001 KUC321 AE01 compatible with both AC800M and Advant Series controllers?
Yes. The KUC321 AE01 is designed for use across the ABB AC800M controller family and the Advant Series DCS platform. It is a direct drop-in replacement for the original factory-installed power supply board with no hardware or software modifications required. Compatibility extends to both simplex and redundant controller configurations.

Q2: What testing is performed before shipment?
Every unit undergoes 100% functional testing prior to dispatch, including power output verification, backplane interface continuity checks, and thermal cycling validation. A test report is available upon request. All units are shipped with anti-static packaging and appropriate mechanical protection to ensure safe arrival.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with a replacement unit dispatched upon fault confirmation, minimizing your downtime exposure.

Q4: How should I verify compatibility before installation?
Confirm the existing board’s part number label matches HIEE300698R0001 and the module designation KUC321 AE01. Cross-reference with your AC800M or Advant system documentation (controller hardware manual) to verify the slot assignment and power rail specification. If you require pre-purchase compatibility verification, contact our technical team with your controller model and firmware version.
