ABB HESG330184R1 ES1844C Upgrade for Advant MOD 300 – Seamless DCS Migration

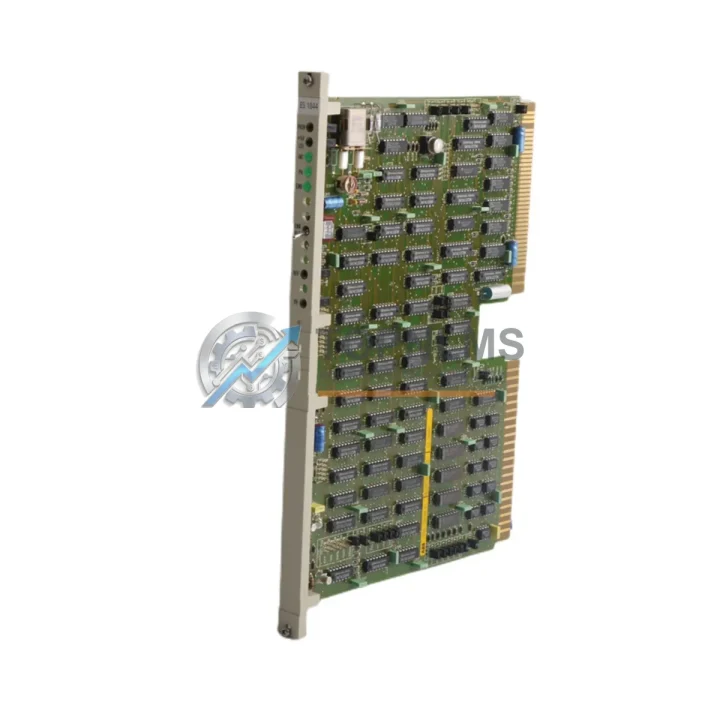

The ABB HESG330184R1 ES1844C is a DCS PC board module originally designed for the ABB Advant MOD 300 distributed control system — one of the most widely deployed process automation platforms in the oil & gas, power generation, pulp & paper, and chemical processing industries. As the MOD 300 platform ages and original spare parts become increasingly scarce, plant engineers and procurement teams face mounting pressure to source reliable replacement boards that maintain system integrity without triggering costly full-system migrations.

TOPNLMS maintains verified stock of the HESG330184R1 ES1844C, fully tested and ready for immediate dispatch. Each unit undergoes functional verification prior to shipment and is backed by a 12-month warranty, giving your maintenance team the confidence to proceed with planned or emergency replacements without compromising uptime.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing the HESG330184R1 ES1844C is rarely an isolated action — it typically occurs within a broader context of MOD 300 system maintenance or phased modernization. During the replacement process, engineers frequently need to address adjacent components to ensure the entire control loop remains stable.

The MOD 300 rack infrastructure relies on a healthy power supply module to deliver clean 24 VDC to all installed cards. If the HESG330184R1 ES1844C failure was preceded by power anomalies, inspecting and potentially replacing the rack power supply unit (PSU) is strongly recommended before commissioning the new board. Similarly, the HESG324101R1 and HESG324102R1 I/O interface boards — which handle analog and digital signal conditioning within the same rack — should be verified for integrity, as a faulty I/O board can mask or mimic controller board failures.

Communication continuity is equally critical. The MOD 300 MasterBus 300 network relies on DSCS110 and DSCS111 communication supervisory modules to coordinate data exchange between controllers and operator stations. If the replacement board is being installed in a redundant controller configuration, the HESG330184R2 or equivalent redundancy module should be checked for firmware compatibility. Termination panels such as the HESG441290R1 provide the physical interface between field wiring and the rack backplane — these should be inspected for corrosion or loose connections during any board swap.

For plants running ABB’s Advant Station 500 series operator workstations, the replacement procedure should include verifying that the OPC server or DDE interface remains synchronized after the board is restored. In parallel DCS architectures, the DSMB175 MasterBus modem board and associated coaxial or fiber trunk cables should be tested to confirm network integrity post-replacement. Where the MOD 300 system interfaces with field instruments via HART or 4–20 mA loops, signal isolators and marshalling terminal blocks in the control cabinet should also be checked to rule out ground loop issues that could affect the new board’s analog input accuracy.

TOPNLMS stocks a broad range of ABB Advant MOD 300 compatible spare parts, enabling customers to consolidate procurement and reduce lead times across multiple line items in a single order.

Retrofit Guidance FAQ

Q1: Can I install the HESG330184R1 ES1844C without modifying existing field wiring?
Yes. The HESG330184R1 ES1844C uses the same backplane connector and termination panel interface as the original board. Field wiring connected to the termination panel does not need to be disturbed. Simply remove the failed card, insert the replacement, restore the configuration from your engineering backup, and perform a loop check before returning the loop to automatic.

Q2: Is the replacement board compatible with my existing MOD 300 engineering software and control programs?
Yes. The HESG330184R1 ES1844C is fully compatible with ABB’s MOD 300 engineering environment. Your existing control application, function block diagrams, and parameter settings can be downloaded directly to the replacement board without modification. No re-engineering or re-licensing is required.

Q3: What communication protocols does this board support, and will it integrate with my existing MasterBus 300 network?
The board supports MasterBus 300 and RCOM protocols native to the Advant MOD 300 architecture. It will integrate transparently into your existing network topology. Node addressing and network configuration are retained from your backup, so the replacement board will appear on the network with the same identity as the failed unit.

Q4: How do I handle a replacement in a redundant controller configuration to avoid process interruption?
In redundant MOD 300 configurations, the standby controller can be brought to active status before the failed board is removed, allowing the process to continue running without interruption. The replacement board is then installed in the standby slot, configured, and synchronized with the active controller before redundancy is re-established. TOPNLMS technical support can provide step-by-step guidance for your specific system revision.

Warranty Assurance

Every HESG330184R1 ES1844C unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each board undergoes a structured functional test protocol that verifies power-up behavior, communication interface integrity, and I/O signal response. Units that do not pass all test criteria are quarantined and not offered for sale.

Should a warranty claim arise, TOPNLMS provides a straightforward replacement process: contact our technical team with the order reference and a description of the fault, and a replacement unit will be dispatched within 3–5 business days subject to stock availability. We do not require the customer to return the failed unit before dispatching the replacement in urgent cases, minimizing additional downtime.

Our procurement guarantee includes accurate part number verification before shipment, photographic documentation of the unit and label upon request, and full traceability of the supply chain. For customers requiring long-term supply agreements or blanket orders to support multi-year maintenance contracts, TOPNLMS offers reserved stock arrangements. Contact our team to discuss your specific requirements.

Fast international shipping is available from our Xiamen warehouse, with DHL Express, FedEx, and UPS options supporting delivery to most industrial regions within 3–7 business days. Export documentation, commercial invoices, and packing lists are provided as standard.
