ABB HESG330029R1 ED1630A Replacement for HIEE/HESG Series

Product Overview

ABB HESG330029R1 ED1630A Replacement for HIEE/HESG Series: Seamless DCS Migration & Upgrade

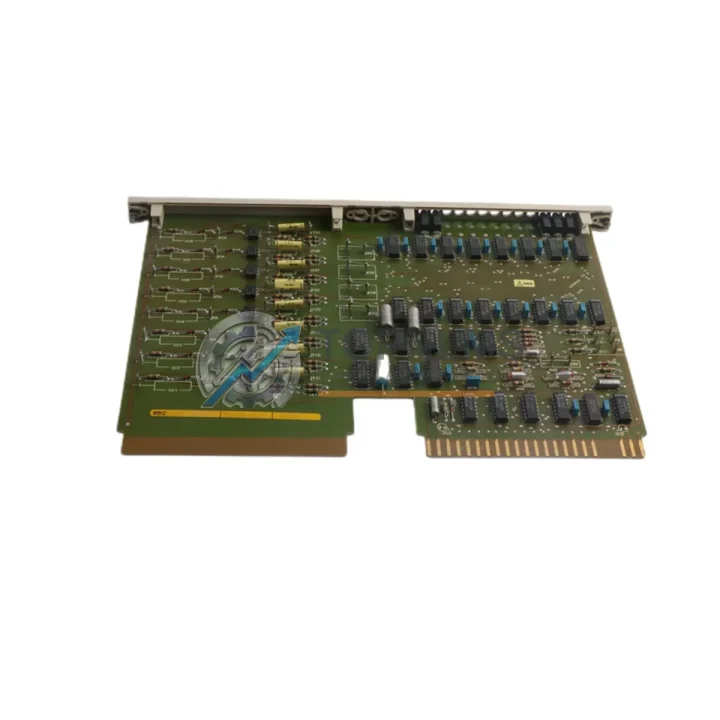

The ABB HESG330029R1 ED1630A is a critical PC board module within ABB’s HIEE/HESG DCS platform, widely deployed in power generation, petrochemical, pulp & paper, and heavy industrial process control systems. As ABB progressively phases out legacy HIEE-series hardware, plant engineers and procurement teams face increasing pressure to source verified replacement boards before unplanned shutdowns occur. TOPNLMS maintains ready stock of the HESG330029R1 ED1630A to support both emergency replacement and planned system modernization projects — ensuring your control architecture remains operational with minimal disruption.

Whether you are replacing a failed board on a live system or executing a phased migration from an aging ABB Advant, Master, or Symphony DCS platform, the HESG330029R1 ED1630A integrates directly into existing HESG-series racks and backplanes without requiring structural modifications to the control cabinet. The board’s edge connector pinout, power rail requirements (+5 VDC / ±15 VDC), and slot addressing are fully compatible with the original HESG rack architecture, allowing field engineers to complete a hot-swap or cold-swap replacement within a standard maintenance window.

From a wiring perspective, all field termination connections remain unchanged. The HESG330029R1 ED1630A interfaces with the same HESG terminal boards and marshalling panels already installed in your cabinet, eliminating the need to re-label, re-route, or re-terminate field cables. This is particularly valuable in brownfield retrofit scenarios where cable documentation may be incomplete or where minimizing cabinet intrusion is a safety requirement.

On the communications side, the board operates within ABB’s proprietary INSUM and MasterBus/300 communication architecture. If your system also includes HESG440237R1 or HESG440237R2 communication interface modules, these continue to function without firmware or configuration changes after the board replacement. Similarly, HESG330029R1 ED1630A is compatible with ABB’s INIOC I/O controller modules and HESG441548R1 power supply boards that are commonly co-installed in the same rack assembly.

For sites running ABB’s Master software environment or using the Control Builder engineering tool, no re-compilation of the application program is required when performing a like-for-like board swap. The hardware address and I/O mapping remain identical, which means your existing ladder logic, function block diagrams, and process variable assignments are preserved. This dramatically reduces commissioning time compared to migrating to a completely different PLC or DCS platform.

In upgrade scenarios — for example, migrating from an older HESG330029R0 revision to the ED1630A revision — the improved board offers enhanced signal processing stability and reduced susceptibility to EMI, which is critical in high-voltage switchgear environments or facilities with significant variable frequency drive (VFD) interference. Plants that have previously experienced intermittent board faults or diagnostic alarms on older HESG revisions frequently report improved system stability after upgrading to the ED1630A variant.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful HESG330029R1 ED1630A replacement or system migration typically involves coordinating several interdependent components within the same rack or control cabinet. The HESG441548R1 power supply module provides the regulated DC rails that the PC board depends on; verifying its output voltage stability before and after the swap is a standard commissioning step. In systems where the rack also houses HESG440237R1 or HESG440237R2 communication interface modules, these should be inspected for firmware version compatibility to ensure uninterrupted MasterBus/300 communication after the board is replaced.

For I/O-intensive applications, the HESG330029R1 ED1630A often operates alongside HESG330030R1 analog I/O boards and HESG330031R1 digital I/O modules within the same rack assembly. If your migration scope includes refreshing aging I/O capacity, sourcing these modules simultaneously reduces the number of separate maintenance windows required. Similarly, INIOC I/O controller modules that manage the I/O bus between the PC board and field devices should be confirmed as compatible with the ED1630A revision before go-live.

In control cabinets where the DCS system interfaces with motor control centers or drives, ABB ACS series variable frequency drives connected via the INSUM protocol may require a communication parameter review following the board swap to confirm that drive status and setpoint signals are correctly mapped. For sites that also operate ABB AC500 or AC800M controllers in a hybrid architecture alongside the legacy HESG DCS, ensuring that the gateway or OPC server configuration reflects the updated hardware is an important post-commissioning verification step.

Finally, for engineers performing the replacement without on-site ABB support, a MasterView 800 or compatible HMI terminal connected to the system provides real-time diagnostic feedback during the board initialization sequence, allowing rapid confirmation that the replacement HESG330029R1 ED1630A has been recognized correctly by the DCS controller and that all I/O channels are reporting expected values before returning the process to automatic control.

Retrofit Guidance FAQ

Q: Can I replace HESG330029R1 ED1630A without shutting down the entire DCS system?
A: In many HESG rack configurations, individual board slots can be swapped during a partial shutdown of the affected control loop while the remainder of the system remains in service. However, this depends on your specific system architecture and safety requirements. Always consult your site’s MOC (Management of Change) procedure before performing any live-system board replacement.

Q: Do I need to re-configure the board after installation?
A: For a like-for-like replacement (same revision), no re-configuration is typically required. The board reads its operating parameters from the system database held in the DCS controller. For a revision upgrade (e.g., R0 to R1 ED1630A), a brief diagnostic check via the engineering workstation is recommended to confirm all parameters have been correctly inherited.

Q: Is the field wiring compatible without modification?
A: Yes. The HESG330029R1 ED1630A uses the same terminal board interface as previous revisions. All existing field cable terminations, marshalling connections, and signal assignments remain valid without re-labeling or re-routing.

Q: What communication protocols does this board support?
A: The board operates within ABB’s MasterBus/300 and INSUM communication architecture. It does not natively support Profibus, PROFINET, or Modbus TCP — if protocol conversion is required for integration with newer systems, an external gateway module should be used.

Q: How do I verify the board is functioning correctly after installation?
A: Use the ABB Master engineering software or Control Builder to perform a hardware scan and confirm the board is recognized at its configured rack address. Check all I/O channel diagnostics for fault-free status and verify that process variable readings match expected field values before releasing the loop to automatic control.

Q: Can this board be used in a different rack or cabinet than the original?
A: The HESG330029R1 ED1630A is designed for use in HESG-series racks. It is not directly interchangeable with racks from other ABB DCS families (e.g., Freelance or 800xA hardware racks) without additional engineering evaluation.

Warranty Assurance

Every ABB HESG330029R1 ED1630A unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each board undergoes a functional verification process including visual inspection, power-on testing, and communication interface checks to confirm the unit meets operational specifications. Units that fail any stage of pre-shipment testing are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund depending on the nature of the fault and the customer’s operational requirements. Our after-sales response target is within 24 hours of a warranty claim submission. For urgent plant situations, expedited replacement dispatch is available — please contact our sales team directly to arrange priority handling.

We maintain bonded stock of HESG330029R1 ED1630A and related HESG-series components to support both planned procurement and emergency breakdown orders. Standard lead time for in-stock units is 3–7 business days for international shipments, with express options available for critical plant situations. All units are shipped with full documentation including test records and a certificate of conformity upon request.

For procurement inquiries, technical pre-sales questions, or warranty support, contact our industrial automation team directly.
