ABB HESG324526R11/M Original Industrial Spare AC316 Compatible

Product Overview

ABB HESG324526R11/M Original Industrial Spare AC316 Compatible: System Stability and Maintenance Value

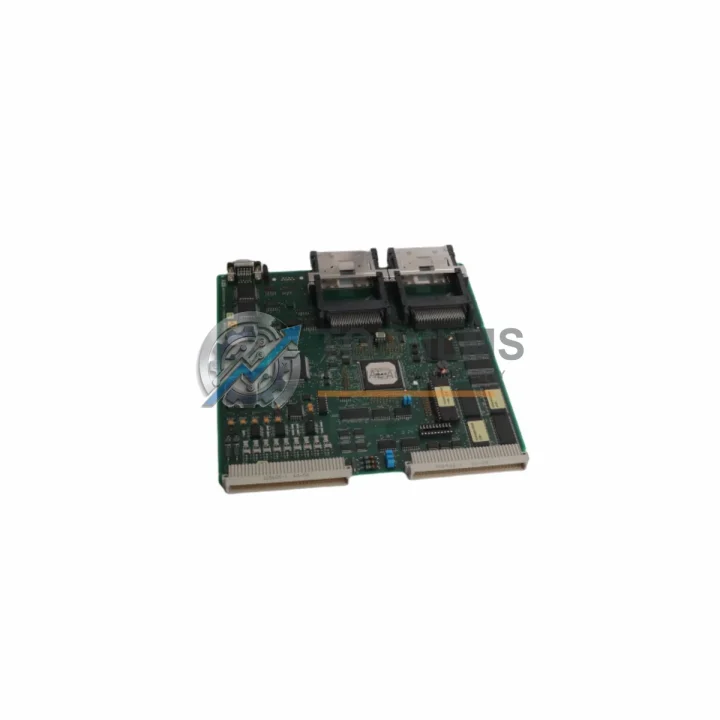

The ABB HESG324526R11/M (316VC61b) is a genuine control interface board engineered for the Advant Controller 316 (AC316) platform — one of ABB’s most widely deployed distributed control system architectures in process industries including power generation, oil & gas, pulp & paper, and chemical manufacturing. As aging AC316 installations continue to operate well beyond their original design life, maintaining a verified stock of original spare boards such as the HESG324526R11/M is a critical pillar of any plant’s uptime strategy. This board serves as the primary communication and control interface layer within the AC316 controller cabinet, coordinating signal exchange between the processor module, I/O subsystems, and the supervisory network. Its failure directly impacts controller availability, making rapid replacement capability non-negotiable for maintenance teams managing continuous or semi-continuous processes.

Critical Technical Specs

Preventive Maintenance Strategy

When a control interface board such as the HESG324526R11/M is flagged for replacement during a scheduled shutdown or emergency repair, experienced maintenance engineers know that the board itself is rarely the only component that warrants attention. The AC316 controller cabinet is an integrated system, and the reliability of the entire control loop depends on the health of every module within it.

During the same maintenance window, it is strongly advisable to inspect and — where service hours indicate — proactively replace the HESG330690R1 processor module, which works in direct coordination with the control interface board to execute control logic. A worn or intermittently failing processor can cause symptoms that are easily misattributed to the interface board, leading to repeat failures after replacement. Similarly, the HESG216045R1 power supply module should be load-tested: an aging power supply delivering marginal voltage under peak I/O load is a common root cause of board-level faults in AC316 systems.

I/O integrity is equally critical. The HESG441290R1 digital input module and HESG441291R1 digital output module share the same backplane bus as the control interface board; connector oxidation or loose seating on these modules can introduce intermittent faults that are difficult to diagnose remotely. While the cabinet is open, technicians should also verify the condition of the HESG216046R1 communication module, which handles MASTERBUS or INSUM network connectivity — a degraded communication module can cause the controller to appear unresponsive even when the control interface board is functioning correctly.

Terminal blocks and field wiring connections deserve equal attention. Loose or corroded terminals on HESG441292R1 analog input modules can introduce signal drift that accumulates undetected over months, eventually triggering process alarms or spurious shutdowns. Replacing terminal block inserts and re-torquing field connections during the same outage eliminates a common source of latent faults. For plants running the AC316 alongside an HMI workstation, verifying the integrity of the HESG216047R1 serial interface module and its associated communication cables ensures that operator visibility is maintained throughout the repair cycle. Finally, fuse modules protecting individual I/O circuits should be inspected and any discolored or thermally stressed fuses replaced as a matter of course — a blown fuse discovered during a live production run is a far more costly event than a proactive replacement during planned maintenance.

Strategic Replacement Solutions

The HESG324526R11/M 316VC61b is a direct original replacement for the control interface board position in all standard AC316 controller configurations. Plants that have been operating legacy ABB Advant systems for 15–25 years frequently encounter the challenge of sourcing genuine boards as OEM production has long since ended. Counterfeit and refurbished boards circulating in the secondary market present a significant risk: they may pass initial power-on tests but fail under thermal cycling or sustained load, causing unplanned outages that far exceed the cost of sourcing a verified original spare.

By stocking a verified HESG324526R11/M, maintenance teams can execute a like-for-like swap in under two hours — preserving all existing I/O wiring, rack mounting, and software configuration without requiring any re-engineering. This is particularly valuable for facilities where the AC316 controls safety-critical loops such as burner management, compressor protection, or turbine speed control, where extended downtime carries both financial and regulatory consequences. The 316VC61b firmware variant ensures full backward compatibility with existing AC316 application programs, eliminating the risk of software migration errors that can accompany cross-version substitutions. For plants managing a fleet of AC316 controllers across multiple units or buildings, maintaining a minimum of one spare HESG324526R11/M per controller cluster is a widely adopted best practice that significantly reduces mean time to repair (MTTR) and supports ISO 55001-aligned asset management objectives.

Support FAQ

Q1: Is the HESG324526R11/M compatible with all AC316 controller variants?
The HESG324526R11/M 316VC61b is designed for the Advant Controller 316 platform. Compatibility with specific sub-variants depends on the rack configuration and firmware revision of the installed system. We recommend providing your existing board’s full part number and revision marking when ordering to allow our technical team to confirm a direct match before shipment.

Q2: What testing is performed before shipment?
Every HESG324526R11/M unit undergoes functional power-on verification and visual inspection for PCB damage, connector integrity, and component condition prior to dispatch. Units are packed with ESD-protective materials and shipped in rigid anti-static packaging to prevent transit damage.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with a target response time of 3 business days from receipt of the returned unit.

Q4: How should I manage spare board inventory for a multi-unit AC316 installation?
For facilities operating three or more AC316 controllers, a minimum stock of one control interface board per three controllers is a commonly recommended ratio. For critical single-controller applications, a dedicated hot spare is advisable. We can support blanket purchase orders and staged delivery schedules to help align spare parts procurement with your annual maintenance budget cycle.
