ABB GJR5137200R0005 Original Industrial Spare AC500 Compatible: System Stability & Maintenance Value

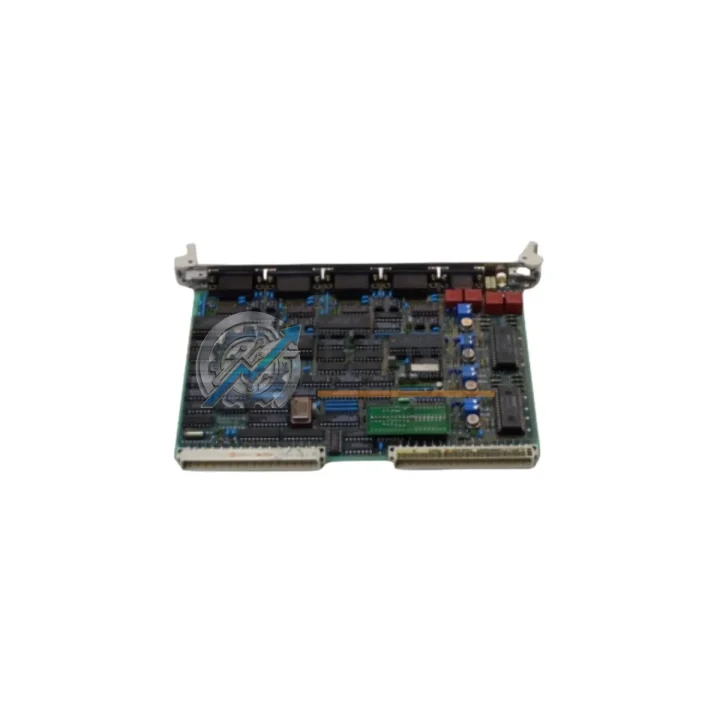

The ABB GJR5137200R0005 (catalog reference 35AE92) is an original Bus Coupler Unit designed for the ABB AC500 PLC platform and its distributed I/O architecture. In industrial environments where continuous uptime is non-negotiable — from automotive assembly lines and water treatment facilities to chemical processing plants and power distribution substations — this component serves as the critical communication bridge between the AC500 CPU and remote I/O stations deployed across the field. Sourced directly from verified supply channels, each unit shipped by TOPNLMS undergoes pre-shipment functional verification, ensuring it arrives ready for immediate installation.

When a Bus Coupler Unit fails or degrades, the consequences extend far beyond a single I/O rack. The entire distributed I/O segment loses communication with the controller, triggering fault states across multiple process loops simultaneously. Maintenance teams that carry the GJR5137200R0005 as a stocked spare can restore full system communication within minutes rather than waiting days or weeks for emergency procurement. This single stocking decision directly translates into reduced mean time to repair (MTTR) and measurable improvements in overall equipment effectiveness (OEE).

Critical Technical Specs

Preventive Maintenance Strategy

A Bus Coupler Unit does not operate in isolation. It is the keystone of an entire distributed I/O segment, and its health is directly tied to the reliability of every module connected downstream. During scheduled maintenance windows or annual control cabinet inspections, experienced maintenance engineers treat the GJR5137200R0005 replacement as part of a broader system health review rather than a standalone task.

When replacing or inspecting the AC500 Bus Coupler, it is best practice to simultaneously audit the ABB S500 digital input modules (DI524, DI581-S) and digital output modules (DO524, DO581-S) mounted on the same I/O rack. These modules share the same backplane bus and are subject to identical thermal and electrical stress cycles. If the coupler has reached end-of-life, adjacent I/O modules may be approaching the same threshold.

The AC500 CPU module — typically a PM554, PM564, or PM583 — should also be checked for firmware currency and battery backup status during the same maintenance event. A coupler replacement that reveals communication instability may indicate the CPU’s PROFIBUS master configuration requires re-parameterization, making it efficient to address both components in a single planned outage.

Power integrity is another critical dimension. The ABB CP-E 24/5.0 or CP-E 24/10.0 power supply modules feeding the I/O bus should be load-tested during the inspection. Voltage ripple or marginal output capacity is a common root cause of intermittent bus coupler communication faults that are frequently misdiagnosed as coupler hardware failure. Stocking a spare power supply module alongside the GJR5137200R0005 eliminates ambiguity during fault diagnosis.

For installations using PROFIBUS-DP fieldbus topology, the bus termination resistors, PROFIBUS connectors (such as the ABB RPBA-01 or third-party 9-pin D-sub connectors), and the fieldbus cable itself should be inspected for impedance continuity. A degraded cable segment or missing termination can cause the bus coupler to report communication errors even when the coupler hardware is fully functional. Carrying spare PROFIBUS termination plugs and bus cables as part of the maintenance kit prevents unnecessary module replacements.

Analog signal integrity should not be overlooked. ABB S500 analog input modules (AI531, AI561) and analog output modules (AO523, AO561) connected through the bus coupler are sensitive to ground loops and shielding discontinuities. During a coupler replacement, verifying shield grounding at the terminal units and checking for signal drift on critical process loops adds minimal time but significantly reduces the risk of post-maintenance process upsets.

Finally, for facilities running mixed automation architectures, the ABB CI501-PNIO or CI502-PNIO PROFINET I/O adapter modules — used to integrate AC500 I/O into PROFINET networks — should be included in the inspection scope. These communication adapters interact directly with the bus coupler layer and are a common source of network topology faults in modernized legacy systems.

Strategic Replacement Solutions

The GJR5137200R0005 is a direct original replacement for aging or failed Bus Coupler Units in AC500 distributed I/O installations. Unlike third-party alternatives that may require firmware adjustments or parameter remapping, the original ABB part maintains full plug-and-play compatibility with existing AC500 hardware configurations. This means maintenance teams can execute a hot-swap replacement — power down the I/O segment, remove the failed coupler, install the GJR5137200R0005, restore power — and return the system to operational status without any controller reprogramming.

For facilities managing aging AC500 systems originally commissioned in the 2000s or early 2010s, the GJR5137200R0005 provides a cost-effective path to system life extension without the capital expenditure of a full PLC migration. By maintaining original hardware compatibility, engineering teams avoid the risk and cost of rewriting control logic, revalidating safety functions, or retraining operators on new HMI interfaces. A single stocked spare can extend the productive life of an entire distributed I/O segment by five to ten years.

TOPNLMS maintains verified stock of the GJR5137200R0005 with pre-shipment electrical testing, ensuring that every unit shipped is confirmed functional before it leaves our facility. Express international shipping via DHL, FedEx, or UPS is available for emergency procurement scenarios, with most orders reaching major industrial hubs in Asia, Europe, and the Americas within 3–7 business days.
