ABB FS450R17KE3/AGDR-71C Replacement for HiPak Series: Smooth Transition & Legacy Drive Compatibility

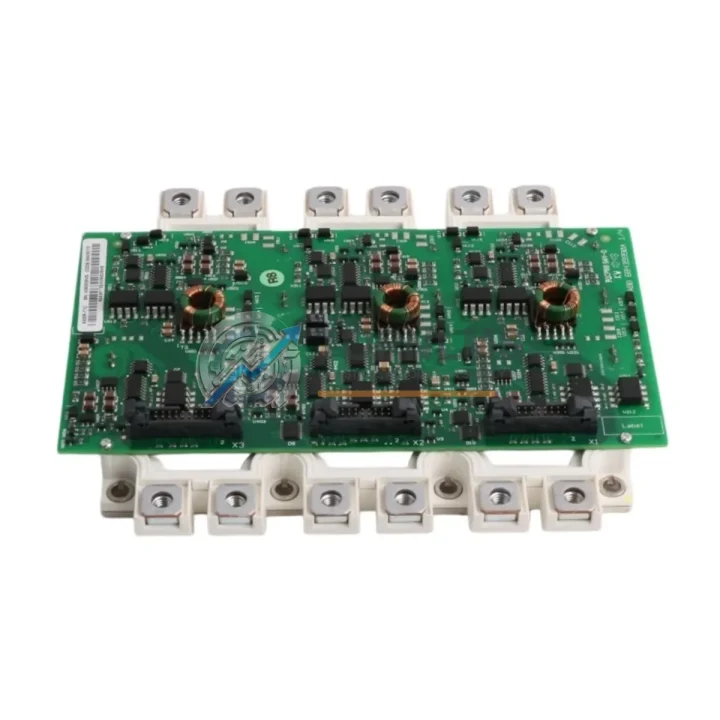

The ABB FS450R17KE3/AGDR-71C is a 1700V / 450A IHM B-type Six-Pack IGBT power module engineered for high-power industrial drive and converter applications. As legacy ABB ACS800, ACS6000, and ACS2000 drive systems age out of their service cycles, plant engineers and procurement teams increasingly require a verified, drop-in replacement that preserves existing wiring harnesses, gate driver interfaces, and control cabinet layouts without forcing a full drive redesign. This module — paired with the AGDR-71C gate driver board — delivers exactly that: a factory-specification upgrade path that minimises commissioning time and eliminates the need for new cabinet fabrication.

Whether you are replacing a failed power stage in an ABB ACS800-17 medium-voltage drive, retrofitting an aging converter rack in a steel mill, or building a spare-parts buffer for a wind-turbine pitch or main converter system, the FS450R17KE3/AGDR-71C ships pre-tested and ready for immediate installation. Each unit undergoes full static and dynamic electrical verification before dispatch, and is backed by a 12-month replacement warranty.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful FS450R17KE3/AGDR-71C retrofit rarely involves the IGBT module alone. In practice, the migration from an aging ABB drive power stage touches several interdependent components that must be evaluated and, where necessary, replaced or upgraded in parallel.

The AGDR-71C gate driver board is the direct companion to this module and is included or available as a matched set. If your existing installation uses the older AGDR-61C or AGDR-66C gate driver, a driver board swap is required alongside the IGBT module replacement — the fibre-optic signal conditioning and fault-feedback logic differ between generations. Verify the gate driver revision before ordering to avoid a second site visit.

On the DC bus side, aging ABB ACS800 DC link capacitor banks and pre-charge resistor assemblies are frequently found in degraded condition when a power module fails. Replacing the IGBT stack without inspecting the capacitor bank ESR and the pre-charge circuit risks an immediate repeat failure. We recommend sourcing a matched capacitor module or at minimum performing a capacitance and ESR check before energising the new IGBT.

The RINT-5611C or RINT-5514C inverter control board (depending on ACS800 variant) interfaces directly with the AGDR-71C via fibre-optic links. If the control board has accumulated fault logs related to overcurrent or short-circuit events that caused the original IGBT failure, the control board’s gate-signal output stage should be verified before commissioning the replacement module. A faulty control board output can destroy a new IGBT within seconds of first power-up.

For installations where the drive feeds a high-inertia load — such as a large pump, compressor, or rolling mill — the ABB ACS800 brake chopper module (NBRA-6xx series) and associated braking resistor assembly should be inspected as part of the same maintenance window. Overvoltage events during regenerative braking are a common root cause of IGBT Six-Pack failures in this power class.

If the retrofit extends to the control cabinet level, ABB RDCO-03 or RDCO-04 DDCS communication adapter boards are often required to re-establish DriveWindow or DriveBus communication after a control board or firmware update. These adapters are compact, DIN-rail-mountable, and can be sourced alongside the power module to complete the upgrade in a single procurement cycle.

Finally, for sites migrating from older discrete IGBT stacks to the IHM B-type platform, thermal interface pads or phase-change thermal compound sheets rated for the IHM B baseplate geometry are essential. Improper thermal interface preparation is the single most common cause of premature failure in otherwise correctly installed IGBT modules. Torque the mounting bolts to the ABB-specified value (typically 6–8 Nm for M6 studs on the IHM B baseplate) and apply thermal compound uniformly before final assembly.

Retrofit Guidance FAQ

Q: Can I reuse the existing wiring harness from the old IGBT module?
A: In most ACS800-17 and ACS6000 installations, the gate driver signal cables (fibre-optic) and DC bus busbars are compatible with the IHM B footprint. However, always verify busbar hole spacing and stud diameter (M8 vs M6) against the new module datasheet before final assembly. AC output phase connections are typically compatible without modification.

Q: Do I need to re-flash or modify the drive firmware after replacing the IGBT module?
A: No firmware changes are required for a like-for-like FS450R17KE3/AGDR-71C replacement in an ACS800 or ACS6000 drive. The AGDR-71C gate driver communicates via the same fibre-optic protocol as the predecessor. If you are upgrading from an A-type module with a different gate driver generation, verify the AGDR firmware revision matches the inverter control board’s expected interface.

Q: What communication protocols does this module support?
A: The AGDR-71C gate driver uses ABB’s proprietary fibre-optic PWM interface, compatible with the RINT-5611C and RINT-5514C inverter control boards. It does not natively support PROFIBUS, PROFINET, or Modbus — those protocols are handled at the drive control unit level, not the power module level. No changes to fieldbus configuration are required.

Q: Will this module fit in the existing control cabinet without mechanical modification?
A: The IHM B baseplate uses a standardised bolt pattern. In most ACS800-17 cabinets, the module drops into the existing heatsink or liquid-cooled cold plate without modification. If upgrading from an IHM A-type module, a heatsink adapter plate may be required — contact us with your cabinet drawing for confirmation before ordering.

Q: How do I verify the module is functioning correctly after installation?
A: After mechanical and electrical installation, perform a static gate-emitter resistance check on all six IGBT positions before applying DC bus voltage. Then perform a low-voltage functional test using the drive’s built-in IGBT test routine (available in ACS800 DriveWindow). Only after passing both checks should full DC bus voltage be applied and a no-load motor run test performed.

Warranty Assurance

Every ABB FS450R17KE3/AGDR-71C unit shipped from TOPNLMS is covered by a 12-month replacement warranty from the date of shipment. Our pre-shipment testing protocol includes:

• Static V_CE(sat) and V_GE(th) measurement on all six IGBT positions
• Freewheeling diode forward voltage verification
• Isolation voltage test (V_isol) between baseplate and terminals
• Visual inspection for mechanical damage, delamination, or contamination
• AGDR-71C gate driver power-on self-test and fibre-optic link verification

If a unit fails within the warranty period under normal operating conditions, we will ship a replacement unit at no additional cost. Our after-sales response target is within 24 hours of a warranty claim submission. Replacement units are dispatched from our Xiamen warehouse with DHL Express or FedEx International Priority, with typical transit times of 3–7 business days to most industrial regions worldwide.

For procurement teams requiring documentation, we provide a test report, packing list, and commercial invoice with each shipment. Letter of Conformance and country-of-origin certificates (Germany) are available on request.
