ABB FS300R12KE3 AGDR-72C Replacement for IGBT Drive Series

Product Overview

ABB FS300R12KE3 AGDR-72C Replacement for IGBT Drive Series: Seamless Transition from Legacy Gate Driver Systems

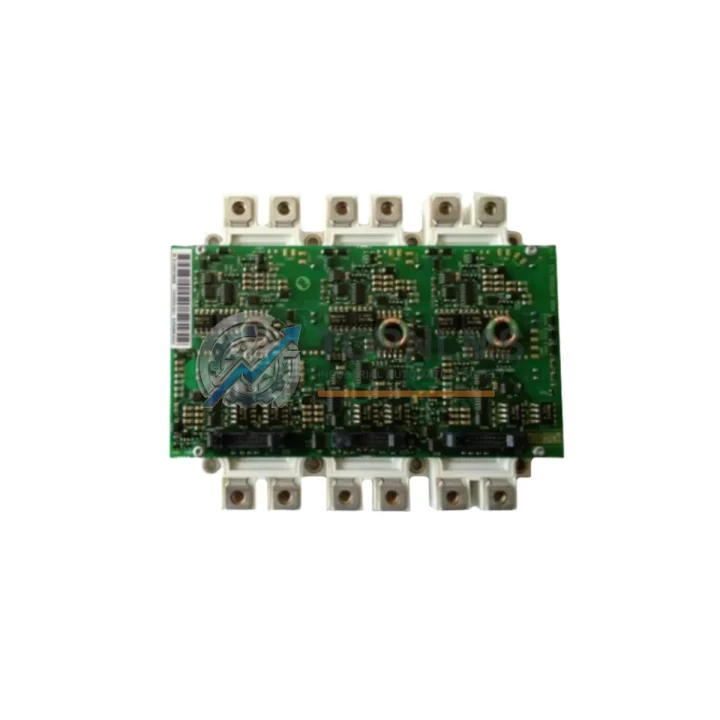

The ABB FS300R12KE3 AGDR-72C is a high-performance IGBT gate driver module rated at 1200V / 300A, designed for demanding industrial drive and power conversion applications. As legacy ABB drive platforms age and original gate driver boards become increasingly difficult to source, the AGDR-72C serves as the authoritative replacement and upgrade solution for engineers managing medium-voltage drive systems, traction inverters, and industrial power electronics cabinets.

This module is engineered to interface directly with the FS300R12KE3 IGBT power module — a 1200V, 300A six-pack IGBT commonly deployed in ABB ACS800, ACS880, and ACS6000 series variable frequency drives. When the original gate driver board fails or reaches end-of-life, the AGDR-72C provides a pin-compatible, electrically equivalent replacement that eliminates the need for control board redesign, firmware re-flashing, or drive cabinet modification.

Compatibility Comparison Table

Seamless Upgrade Solutions: Migration from Legacy ABB Drive Systems

Upgrading from a failed or end-of-life gate driver in an ABB ACS800 or ACS880 drive system involves more than simply swapping the AGDR-72C board. A complete and reliable retrofit typically requires coordinated replacement of several interdependent components within the same drive cabinet or power stack.

In most field retrofit scenarios, the AGDR-72C is installed alongside the FS300R12KE3 IGBT power module itself — the six-pack Infineon module that the gate driver is designed to control. If the IGBT module has experienced a desaturation fault or thermal overstress event, both the power module and the gate driver board should be replaced simultaneously to prevent recurrent failure. Engineers working on ACS800 series drives will also frequently need to address the AINT-02C or AINT-14C interface boards, which handle the fiber optic signal routing between the drive control unit and the gate driver layer.

For drives operating in regenerative or active front-end configurations — common in crane, hoist, and winder applications — the AGDR-72C replacement is often performed in conjunction with servicing the APBU-44C or APBU-12C pulse distribution units, which fan out the PWM gate signals from the main control board to multiple IGBT stacks. Ensuring that the fiber optic cables connecting these units are undamaged and properly seated is a critical step in commissioning after gate driver replacement.

In cabinet-level retrofits involving the ACS6000 medium-voltage drive platform, the AGDR-72C may be part of a broader power cell replacement that also includes the DCF803 DC capacitor bank module and the BAMU-01C board measurement unit. These components share the same 24V DC auxiliary bus and must be verified for correct voltage levels before the gate driver is energized. The NDBU-95C or NDBU-85C branching units used in multi-drive configurations should also be inspected for fiber optic continuity during any gate driver service event.

For applications where the drive system interfaces with a Siemens S7-300 or S7-400 PLC via PROFIBUS-DP, or with an Allen-Bradley ControlLogix system via EtherNet/IP, the gate driver replacement itself does not affect the communication layer — the AGDR-72C operates transparently below the drive’s control firmware. However, after replacement, a full drive parameter backup and restore using the ABB Drive Composer or DriveWindow software is recommended to confirm that all motor control parameters, protection thresholds, and I/O mappings remain intact.

Field engineers should also verify the condition of the SNAT 601 CNT or SNAT 607 TAI I/O extension boards in older ACS800 installations, as these boards are often located in the same cabinet section as the gate driver stack and may have been exposed to the same thermal or electrical stress event that caused the original AGDR-72C failure. Replacing the gate driver without inspecting adjacent I/O modules is a common cause of repeat service calls.

Retrofit Guidance FAQ

Q: Can the AGDR-72C replace the AGDR-61C or AGDR-71C directly without wiring changes?
A: Yes. The AGDR-72C is a direct mechanical and electrical replacement for earlier AGDR series revisions. The connector pinout, fiber optic interface, and 24V auxiliary supply requirements are identical. No wiring modifications are required in the drive cabinet.

Q: What communication protocol does the AGDR-72C use for gate signal transmission?
A: The AGDR-72C uses fiber optic signal transmission (HFBR-series connectors) for PWM gate commands and fault feedback. This is fully compatible with the fiber optic outputs of the ABB AINT and APBU pulse distribution boards used in ACS800 and ACS880 drive systems.

Q: Does replacing the AGDR-72C require re-parameterization of the drive?
A: The gate driver itself does not store drive parameters. However, it is best practice to perform a full parameter backup before any power electronics service and to verify all protection settings — particularly the desaturation threshold and short-circuit response time — after installation.

Q: Is the AGDR-72C compatible with IGBT modules other than the FS300R12KE3?
A: The AGDR-72C is specifically matched to the FS300R12KE3 (1200V/300A) Infineon six-pack module. Use with other IGBT modules of different voltage or current ratings is not recommended without engineering review, as gate resistor values and protection thresholds are optimized for this specific device.

Q: What physical space is required for installation?
A: The AGDR-72C mounts directly to the FS300R12KE3 module baseplate using the standard ABB mounting pattern. No additional cabinet space or bracket modification is required. The module dimensions are identical to the AGDR-61C and AGDR-71C predecessors.

Q: How do I verify the AGDR-72C is functioning correctly after installation?
A: After installation, power up the auxiliary 24V supply and verify that the fault LED is not illuminated. Apply a low-frequency test PWM signal via the fiber optic input and confirm gate voltage output at ±15V using an isolated oscilloscope probe. Then perform a full drive start-up sequence with the motor uncoupled before returning to normal operation.

Warranty Assurance

Every ABB FS300R12KE3 AGDR-72C unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes functional verification including auxiliary power-up testing, gate drive output voltage measurement, fiber optic signal integrity check, and fault feedback circuit validation. Units that do not meet ABB’s original performance specifications are not shipped.

In the event of a warranty claim, TOPNLMS provides direct replacement support with a target response time of 1–2 business days. Replacement units are dispatched from our Xiamen warehouse via DHL Express or FedEx International Priority, with typical delivery times of 3–7 business days to most industrial regions globally.

Our procurement team maintains dedicated stock of high-demand ABB drive components to support emergency replacement scenarios where drive downtime directly impacts production output. Same-day dispatch is available for orders confirmed before 14:00 CST on business days.

For volume procurement, OEM integration projects, or long-term supply agreements, please contact our industrial components team directly. We support NET30 payment terms for qualified accounts and can provide material traceability documentation, including country of origin certificates and test reports, upon request.
