ABB FMBT-21 Replacement Solution for FDPI-02 Series

Product Overview

ABB FMBT-21 Replacement Solution for FDPI-02 Series: Seamless Modbus/TCP Migration for ACS Drive Systems

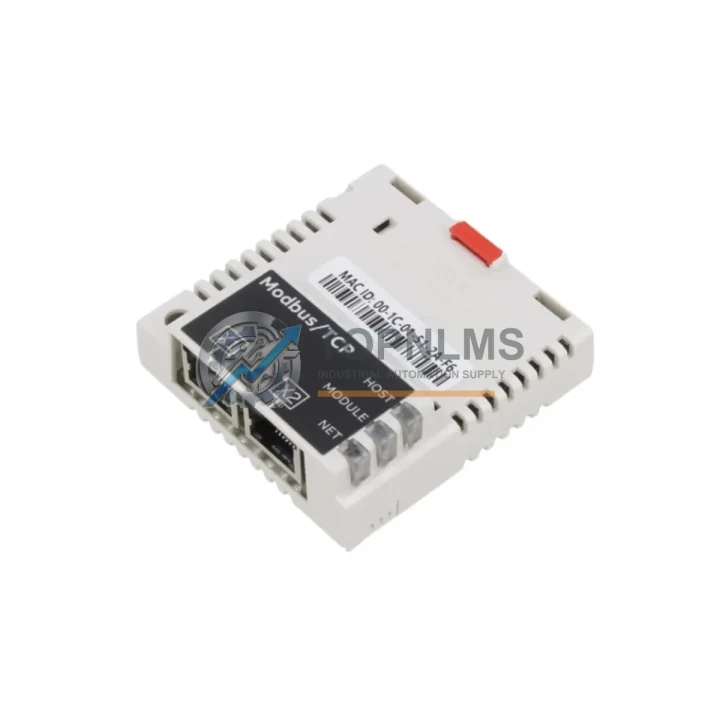

The ABB FMBT-21 is a Modbus/TCP fieldbus adapter module designed for integration with ABB’s FDPI-02 drive bus interface, enabling Ethernet-based communication between ABB ACS series variable frequency drives and supervisory control systems. As industrial facilities transition away from legacy fieldbus architectures or replace discontinued communication modules, the FMBT-21 serves as a direct, validated replacement and upgrade path for existing FDPI-02-compatible drive installations.

Whether your facility is retiring an older ABB FMBT-11 PROFIBUS adapter, migrating from a serial Modbus RTU topology to Modbus/TCP over Ethernet, or simply replacing a failed communication module in a running ACS800 or ACS880 drive cabinet, the FMBT-21 provides a plug-compatible, firmware-supported solution that minimizes engineering rework and commissioning time.

TOPNLMS maintains verified stock of the FMBT-21 with full pre-shipment functional testing, 12-month warranty coverage, and expedited dispatch from Xiamen, China to industrial customers worldwide.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to the FMBT-21 typically involves coordinating several interconnected components within the drive cabinet and control architecture. During the upgrade process, engineers commonly address the following system elements:

The ABB ACS880 primary control unit (PCU) or ACS800 control board (RMIO) must be confirmed compatible with the FDPI-02 slot assignment before installing the FMBT-21. In multi-drive installations, the ABB RDCO-03 or RDCO-04 optical communication module may also be present on the drive bus, and its slot assignment must not conflict with the FMBT-21’s FDPI-02 position.

On the network side, the FMBT-21 connects via standard RJ-45 to the facility’s industrial Ethernet switch. If the existing network infrastructure uses unmanaged switches without VLAN segmentation, upgrading to a managed industrial Ethernet switch (such as those from the Hirschmann or Moxa product families) is advisable to ensure deterministic Modbus/TCP polling cycles, particularly in multi-axis or multi-drive topologies.

For installations where the legacy system used an ABB FPBA-01 PROFIBUS adapter or an ABB FCAN-01 CANopen adapter in the same drive option slot, the FMBT-21 replaces these modules physically and logically, though the PLC program’s communication function blocks must be updated from PROFIBUS DPV1 or CANopen SDO/PDO to Modbus/TCP register mapping. This typically involves remapping drive control word (CW) and status word (SW) registers in the SCADA or PLC program — a process that ABB’s DriveStudio or Drive Composer Pro software can assist with via parameter export and comparison.

In cabinet-level retrofits, the ABB AIMA-01 analog I/O extension module and AITC-01 or AITC-02 I/O terminal modules are frequently encountered alongside the communication adapter. These modules remain in place during an FMBT-21 swap, as they connect to the drive’s internal I/O bus independently of the fieldbus adapter slot. Similarly, the ABB MPOW-01 auxiliary power module or external 24 VDC power supply feeding the drive’s control section does not require modification during the adapter replacement.

For facilities running ABB’s AC500 PLC series as the Modbus/TCP master, the FMBT-21 integrates directly using standard Modbus function codes (FC03 Read Holding Registers, FC06 Write Single Register, FC16 Write Multiple Registers), with no proprietary driver or GSD file required — a significant simplification over PROFIBUS-based predecessors.

Where the drive is installed in a MNS or UniGear switchgear panel with limited front-access depth, the FMBT-21’s compact form factor and rear-facing RJ-45 port allow installation without panel door modification, preserving the original cabinet IP rating.

Retrofit Guidance FAQ

Q: Can the FMBT-21 replace an FMBT-11 (PROFIBUS) without hardware modification to the drive?
A: Yes. Both modules use the FDPI-02 drive bus slot and share the same physical connector. No drive hardware modification is required. The PLC program must be updated to use Modbus/TCP instead of PROFIBUS-DP communication.

Q: Does the FMBT-21 support both ACS800 and ACS880 drives?
A: Yes. The FMBT-21 is compatible with ACS800 (with RMIO board) and ACS880 (with ZCU or BCU control unit) drives that feature an FDPI-02 option slot. Confirm the drive’s option slot designation (D2D or equivalent) before installation.

Q: What IP address configuration is required?
A: The FMBT-21 supports both static IP assignment via drive parameters and DHCP. For industrial environments, static IP assignment is recommended to ensure consistent Modbus/TCP polling from the PLC or SCADA master.

Q: Is any special wiring required compared to the legacy PROFIBUS adapter?
A: The FMBT-21 uses a standard RJ-45 Ethernet cable (Cat5e or Cat6) instead of the shielded DB9 or terminal-block PROFIBUS cable. Existing cable trays and conduit can typically accommodate the Ethernet cable without modification.

Q: How long does commissioning take after swapping the module?
A: For experienced drive engineers, physical installation takes under 30 minutes. Parameter configuration (IP address, Modbus node settings, drive control word mapping) typically requires 1–2 hours. Full system validation including PLC communication testing should be scheduled for a planned maintenance window.

Q: Can the FMBT-21 operate in a multi-master Modbus/TCP environment?
A: The FMBT-21 supports a single Modbus/TCP master connection. If multiple SCADA or PLC systems require simultaneous access to drive parameters, a Modbus/TCP gateway or data concentrator should be placed upstream of the drive network.

Warranty Assurance

Every ABB FMBT-21 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each module undergoes a pre-shipment functional inspection including visual examination, connector integrity check, and where applicable, power-on verification to confirm the module initializes correctly.

In the event of a confirmed defect within the warranty period, TOPNLMS provides replacement unit dispatch or full refund processing within agreed lead times. Our after-sales response team is reachable via email and phone to support fault diagnosis, parameter configuration questions, and compatibility verification before and after purchase.

For procurement teams managing planned maintenance schedules or emergency replacement stock, TOPNLMS offers quantity reservation, advance shipping documentation (packing list, commercial invoice, certificate of origin), and DDP/DAP Incoterms options to simplify customs clearance for international shipments.

All units are sourced through verified supply channels. Authenticity documentation is available upon request for quality-controlled procurement processes.
