ABB FF900R12IP4 Upgrade Solution for IP4 Series: Seamless Transition for Legacy Drive Systems

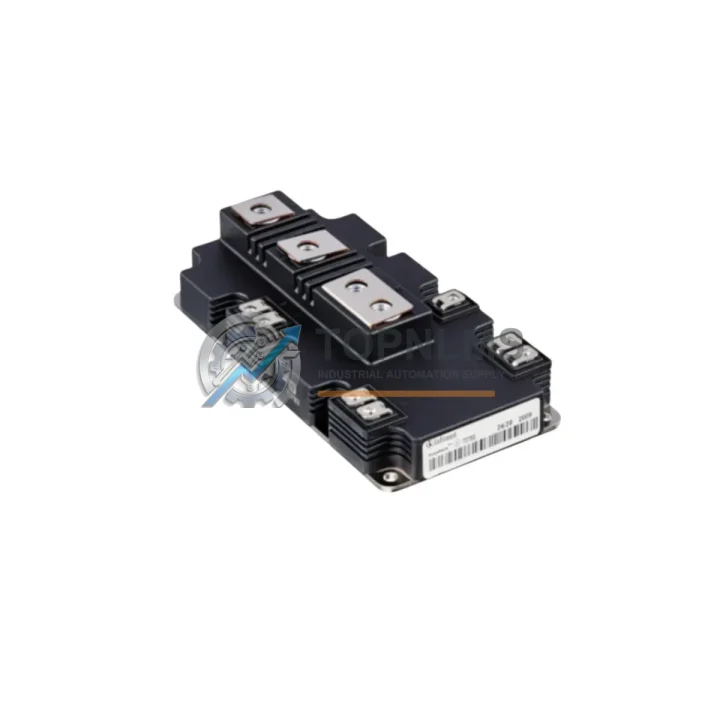

The ABB FF900R12IP4 is a high-power IGBT module rated at 1200V / 900A, engineered for demanding industrial drive and power conversion applications. As part of ABB’s proven IP4 Series power semiconductor platform, this module is the preferred replacement and upgrade solution for aging or discontinued IGBT assemblies found in medium-voltage drives, regenerative converters, traction inverters, and industrial UPS systems. Whether you are retrofitting a legacy ABB ACS800 drive, upgrading a third-party inverter stack, or replacing a failed power stage in a critical production line, the FF900R12IP4 delivers the electrical compatibility, thermal performance, and mechanical fit required for a smooth, low-downtime transition.

Industrial facilities operating continuous production lines — including steel mills, paper plants, cement factories, chemical processing units, and offshore platforms — cannot afford extended downtime caused by obsolete or unavailable power modules. The FF900R12IP4 addresses this challenge directly: it is stocked, pre-tested, and ready to ship, with a 12-month warranty covering both electrical performance and mechanical integrity.

Compatibility Comparison Table

Seamless Upgrade Solutions: Integrated Components for a Complete Drive Retrofit

A successful IGBT module replacement rarely involves the power semiconductor alone. When upgrading from a legacy drive stack to the FF900R12IP4, engineers typically evaluate the surrounding power and control architecture to ensure full system compatibility and long-term reliability.

On the DC bus side, the existing ABB ACS800 drive capacitor bank and DC link choke should be inspected for capacitance degradation and ESR drift before commissioning the new module. In many retrofit projects, the ABB RINT-5611C gate driver board — or its equivalent in the ACS800 inverter bridge — can be reused without modification, as the FF900R12IP4 maintains the same gate threshold voltage and auxiliary emitter pin layout as its predecessor.

For the control layer, the ABB RDCU-02C drive control unit communicates with the inverter bridge via the DDCS fiber-optic protocol, which remains fully supported in retrofitted configurations. If the existing fiber-optic interface board — such as the ABB RDIO-01 digital I/O extension — is retained, no firmware changes are required for the drive’s current and voltage feedback loops.

Thermal management is equally critical. When reusing the original heatsink assembly, engineers should replace the thermal interface material between the FF900R12IP4 baseplate and the heatsink surface. ABB-recommended thermal compounds with conductivity above 3 W/m·K are standard practice. In high-ambient-temperature environments — such as steel plant motor control centers or outdoor converter cabinets — supplementary cooling via the existing ABB drive cooling fan module (typically a 48V DC axial fan assembly) should be verified for airflow capacity against the new module’s thermal resistance specifications.

On the AC output side, the existing du/dt output filter and motor cable shielding remain compatible, as the FF900R12IP4 switching characteristics (rise time, fall time) are within the same range as the replaced module. This eliminates the need to recalibrate the drive’s PWM frequency or dead-time compensation parameters in most standard retrofit scenarios.

For facilities managing multiple drive cabinets, the ABB ACS880 multidrives cabinet platform — which uses a modular IGBT inverter bridge architecture — can also benefit from FF900R12IP4 integration as a high-current phase leg replacement, particularly in parallel inverter configurations where matched module characteristics are essential for current sharing.

Finally, if the retrofit involves upgrading the control system alongside the power stage, the ABB AC500 PLC with PROFIBUS DP or PROFINET communication modules provides a modern supervisory layer that integrates cleanly with the ACS800 or ACS880 drive family, enabling coordinated speed and torque control without requiring a full system redesign.

Retrofit Guidance FAQ

Q1: Is the FF900R12IP4 a direct drop-in replacement for earlier IP4 Series modules in ABB ACS800 drives?
In the vast majority of ACS800 inverter bridge configurations, yes. The FF900R12IP4 shares the same 190×140mm baseplate footprint, identical gate drive voltage requirements (±15V), and the same auxiliary emitter and NTC thermistor pin layout as earlier IP4 generation modules. No modifications to the gate driver PCB or heatsink mounting hardware are required in standard replacement scenarios. Engineers should verify the specific drive variant’s power stage BOM against the FF900R12IP4 datasheet before installation.

Q2: Can the existing wiring and bus bar connections be reused during the replacement?
Yes. The FF900R12IP4 uses standard M6 power terminal bolts for the collector (C) and emitter (E) connections, consistent with the IP4 Series mechanical specification. Existing copper bus bars and flexible power cables can be reused provided they are inspected for thermal fatigue and contact surface oxidation. Torque specifications should be followed per ABB’s installation guidelines (typically 6–8 Nm for M6 terminals).

Q3: Does replacing the IGBT module require re-parameterization of the drive software?
For like-for-like IP4 Series replacements within the same current rating, drive re-parameterization is generally not required. The ACS800 drive firmware identifies the inverter bridge characteristics through hardware configuration switches and gate driver feedback, not through module-specific software parameters. However, if the replacement involves a current rating change or a different IP Series generation, a full drive commissioning check — including current limit settings, overcurrent trip thresholds, and thermal model parameters — is recommended.

Q4: What physical space and cabinet modifications are needed for the retrofit?
The FF900R12IP4 is designed for direct mechanical substitution within existing ABB drive cabinet frames. No cabinet cutouts, additional mounting brackets, or bus bar extensions are required for standard ACS800 inverter bridge replacements. In custom or third-party cabinet installations, engineers should verify the available clearance for the module’s 34mm height profile and confirm that the heatsink mounting surface flatness meets ABB’s specification (typically ≤50 µm Ra) to ensure optimal thermal contact.

Warranty Assurance

Every ABB FF900R12IP4 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment testing protocol includes static gate-emitter threshold voltage measurement, collector-emitter leakage current verification, NTC thermistor resistance check, and visual inspection of the baseplate, bond wires, and terminal surfaces. Modules that do not meet ABB’s published electrical specifications are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement module or full refund within the warranty period, subject to inspection of the returned unit. Our technical team is available to support installation verification, failure analysis, and retrofit guidance throughout the warranty period. For time-critical production environments, expedited replacement shipping is available upon request.

Long-term supply continuity is a core commitment at TOPNLMS. We maintain buffer stock of high-demand IP4 Series modules — including the FF900R12IP4 and related variants — to support customers with ongoing maintenance contracts, multi-site retrofit programs, and emergency spare requirements. Procurement teams are encouraged to contact us for volume pricing, lead time commitments, and approved vendor documentation.
