ABB EB143887SPER 1C1-AA Original Industrial Spare REF Series Compatible: Ensuring System Stability in Protection Relay Circuits

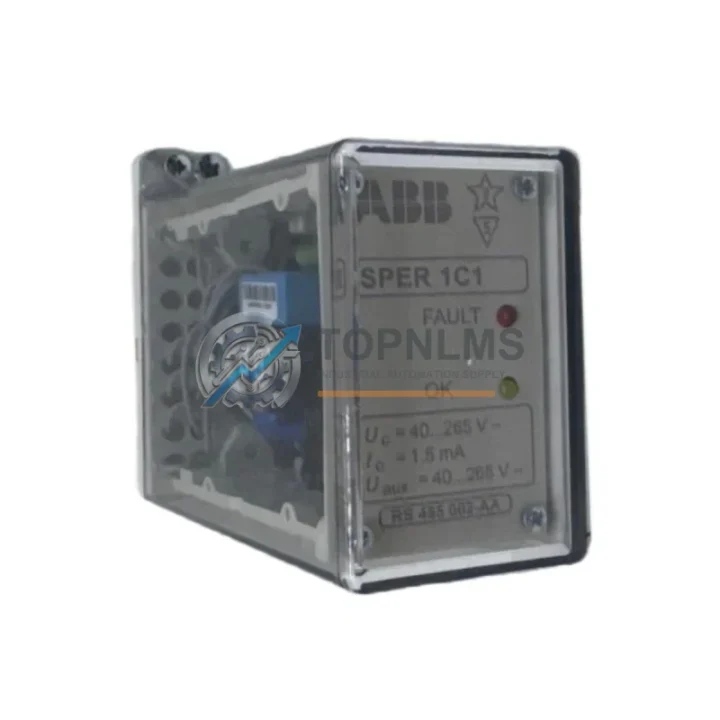

The ABB EB143887SPER 1C1-AA is an original trip circuit supervision relay belonging to ABB’s REF Series — a product line engineered for continuous monitoring of trip coil circuits in high-voltage switchgear, protection panels, and substation automation systems. In industrial power distribution environments, the integrity of the trip circuit is non-negotiable. A failed or degraded trip coil circuit can prevent a circuit breaker from operating during a fault, leading to catastrophic equipment damage, extended outages, and serious safety risks. The EB143887SPER 1C1-AA addresses this vulnerability by providing real-time supervision of the trip circuit, issuing an alarm or initiating a lockout before a failure becomes a crisis.

For maintenance engineers managing aging protection panels, this relay is a critical spare. Whether you are performing scheduled outage maintenance, responding to an unexpected alarm, or building a strategic spare parts inventory for a substation or industrial facility, having a verified original ABB EB143887SPER 1C1-AA on hand eliminates the risk of extended downtime caused by sourcing delays. Every unit supplied by TOPNLMS is tested prior to shipment and backed by a 12-month warranty, giving procurement and maintenance teams the confidence they need when making replacement decisions.

Critical Technical Specs Table

Preventive Maintenance Strategy

Trip circuit supervision relays like the EB143887SPER 1C1-AA do not operate in isolation. They are one component within a broader protection and control architecture, and a comprehensive preventive maintenance program must account for the entire system. When scheduling a planned outage to inspect or replace the EB143887SPER 1C1-AA, maintenance teams should simultaneously audit the condition of the ABB REF615 or REF630 protection relay units that the trip supervision module supports — these relays govern overcurrent, earth fault, and differential protection functions and are subject to firmware aging and contact wear over time.

The trip coil itself, typically a 24 V DC or 110 V DC coil mounted within the circuit breaker mechanism, should be resistance-tested during the same maintenance window. A coil showing elevated resistance or intermittent continuity is a leading indicator of imminent failure and should be replaced alongside the supervision relay. Similarly, the auxiliary power supply module feeding the protection panel — often an ABB SDCS or equivalent DC/DC converter — should be checked for output voltage stability and ripple, as voltage fluctuations can cause nuisance alarms from the trip supervision circuit.

Wiring terminations at the relay’s input and output terminals deserve close attention. Loose or corroded connections on the terminal blocks — particularly on the trip circuit loop — are a common root cause of false supervision alarms. Inspecting and re-torquing the terminal block connections, and replacing any discolored or brittle wiring insulation, is a low-cost step that significantly extends the reliable service life of the supervision relay. If the panel uses plug-in relay sockets, the socket contacts should be cleaned and inspected for fretting corrosion.

For facilities running ABB’s substation automation platform, the communication module linking the REF Series relay to the SCADA or DCS system — such as an IEC 61850 GOOSE messaging interface card — should be verified for firmware compatibility and communication health. A supervision relay that correctly detects a trip circuit fault but fails to communicate the alarm to the control room due to a degraded communication module defeats the purpose of the supervision function entirely.

Maintenance planners building a comprehensive spare parts kit for a protection panel housing the EB143887SPER 1C1-AA should also consider stocking: auxiliary relay modules for output expansion, miniature circuit breakers (MCBs) protecting the DC auxiliary supply circuits, signal isolators on analog input channels feeding the protection relay, fuse modules on the trip and close coil supply circuits, and surge protection devices on the panel’s DC bus. These components share the same maintenance cycle and failure modes as the trip supervision relay, and having them available on-site eliminates the multi-day sourcing delays that turn a minor fault into a major production loss.

Strategic Replacement Solutions

The ABB EB143887SPER 1C1-AA is designed as a direct replacement for earlier ABB trip circuit supervision modules used in REF Series panels. For facilities that have been operating legacy protection panels for 10–20 years, the original supervision relay may no longer be available through standard distribution channels, making verified surplus stock from specialist suppliers like TOPNLMS the most practical sourcing path. Unlike generic aftermarket alternatives, an original ABB unit maintains full compatibility with the relay’s internal logic, contact ratings, and auxiliary voltage range — eliminating the risk of mismatched specifications that can cause nuisance tripping or, worse, failure to detect a genuine trip circuit fault.

Replacing the EB143887SPER 1C1-AA does not require panel redesign or rewiring in most installations. The relay mounts in the existing housing, connects to the existing terminal block layout, and is recognized by the protection relay’s self-monitoring functions without parameter changes. This plug-and-play compatibility is a significant advantage in time-critical maintenance scenarios where the panel must be returned to service quickly. Maintenance teams can complete the replacement, perform a functional test of the trip circuit supervision loop, and restore the panel to normal operation within a single shift.

For facilities managing multiple protection panels across a site, a strategic approach is to standardize on a small buffer stock of EB143887SPER 1C1-AA units — typically two to four pieces per site — held in a climate-controlled spare parts store. This eliminates the lead time risk entirely and supports a condition-based maintenance model where relays are replaced on a defined service interval rather than run-to-failure. The 12-month warranty provided on every unit from TOPNLMS means that even buffer stock held for several months retains full warranty coverage at the time of installation.
