ABB DSQC658 3HAC025779-001 Replacement Solution for IRC5

Product Overview

ABB DSQC658 3HAC025779-001 Replacement Solution for IRC5: Seamless Migration & Upgrade

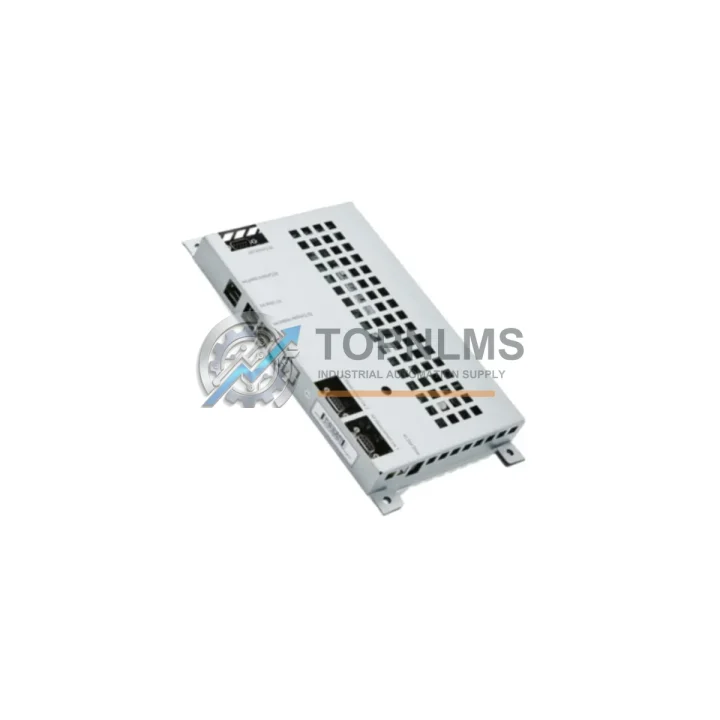

The ABB DSQC658 (Part No. 3HAC025779-001) is the DeviceNet Communication Board designed for ABB IRC5 robot controllers. As ABB progressively phases out legacy IRC5 communication hardware, many facilities running S4C+, S4Cplus, or early IRC5 installations face urgent decisions: continue sourcing scarce spare parts or execute a structured migration to a verified replacement. TOPNLMS supplies tested, ready-to-ship DSQC658 units that allow your engineering team to restore full DeviceNet network communication with minimal downtime and zero software re-engineering.

The DSQC658 board slots directly into the IRC5 controller’s communication bay, restoring the CAN-based DeviceNet master/slave topology that your existing robot program relies on. Whether you are replacing a failed board in a single-cabinet IRC5 or standardizing spare parts across a multi-robot cell, this module maintains full compatibility with ABB’s RobotWare 5.x and 6.x software stacks, preserving all existing I/O signal mappings, device addresses, and scan-list configurations without modification.

For facilities migrating from older S4C+ controllers equipped with the DSQC572 (3HAC023242-001/04) DeviceNet board, the DSQC658 represents the direct IRC5-generation successor. The physical connector layout, DeviceNet MAC ID addressing scheme, and RobotStudio configuration workflow are architecturally consistent, allowing experienced integrators to complete the board swap and re-commission the DeviceNet network within a single maintenance window. The IRC5 controller’s DSQC639 computer unit and DSQC643 power distribution board remain fully compatible, so no rack or backplane modifications are required.

In multi-robot workcells where the IRC5 controller communicates with external PLCs—such as Siemens S7-300/S7-400 series or Allen-Bradley ControlLogix platforms—via a DeviceNet scanner card, the DSQC658 maintains the established network topology. Field engineers report that after board replacement, the DeviceNet scanner on the PLC side detects the IRC5 node at the same MAC ID without requiring a re-scan or EDS file update, provided the replacement board is configured identically to the original. This is critical for minimizing PLC program changes and avoiding unplanned production stoppages.

Wiring compatibility is a primary concern during any communication board replacement. The DSQC658 uses the standard 5-pin open-style DeviceNet connector (V+, CAN_H, Shield, CAN_L, V−) consistent with the DeviceNet specification. Existing trunk-line and drop-cable terminations, including the 121-ohm termination resistors at each end of the DeviceNet trunk, require no modification. Power supply requirements remain at 24 VDC drawn from the IRC5 controller’s internal DSQC643 power distribution board, eliminating any need for external power conditioning or additional DIN-rail power supplies in the control cabinet.

For facilities operating mixed fleets that include both IRC5 Single Cabinet Controllers and IRC5 Compact Controllers, the DSQC658 is compatible across both form factors. The IRC5 Compact’s tighter cabinet geometry does not require a different board variant; the same 3HAC025779-001 part number is applicable. This simplifies spare-parts inventory management significantly, allowing maintenance teams to stock a single board type that covers multiple robot models including the IRB 1600, IRB 2600, IRB 4600, and IRB 6640 series.

During system commissioning after board replacement, the ABB FlexPendant’s I/O configuration panel will display the DeviceNet network status. Engineers should verify that the DSQC658’s rotary MAC ID switches are set to match the original board’s address before powering the controller. The RobotWare DeviceNet Master/Slave option (option 709-1 or 709-2) must be active in the controller’s software license. No additional license purchase is required when replacing a board of the same type—the existing RobotWare license remains valid.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DSQC658 replacement rarely occurs in isolation. In practice, the DeviceNet communication board works in concert with several other IRC5 subsystems and field devices. The DSQC639 computer unit is the IRC5’s main processing board and must be confirmed operational before a communication board fault is attributed solely to the DSQC658—a failed DSQC639 can produce identical DeviceNet error codes. Similarly, the DSQC643 power distribution board supplies the regulated 24 VDC rail that powers the DSQC658; any instability on this rail will cause intermittent DeviceNet communication faults that a board replacement alone will not resolve.

On the network side, the DeviceNet trunk cable and drop cables should be inspected for impedance continuity and proper termination. Facilities that simultaneously upgrade their field I/O—for example, replacing legacy Turck or Pepperl+Fuchs DeviceNet I/O blocks with newer DeviceNet-compatible remote I/O modules—should update the DeviceNet scan list in RobotStudio to reflect the new device EDS profiles before commissioning. If the upgrade path involves transitioning from DeviceNet to EtherNet/IP, the DSQC688 EtherNet/IP communication board is the IRC5-compatible successor and can coexist with the DSQC658 in a dual-network configuration during a phased migration.

For robot cells that include an ABB IRC5 Panel Board Computer (DSQC679) for operator interface functions, or an IRC5 axis computer (DSQC668) managing additional servo drives, these components are unaffected by the DSQC658 replacement and continue operating normally. Facilities running ABB SafeMove safety modules should verify that the safety configuration backup is current before any controller board work, as a precautionary measure consistent with standard functional safety practices. The DSQC648 safety board and its associated safety I/O wiring remain independent of the DeviceNet communication layer.

In control cabinets where the IRC5 controller shares a DIN-rail section with external signal conditioning equipment—such as Phoenix Contact or Weidmüller signal isolators bridging the DeviceNet I/O to legacy 4–20 mA analog instrumentation—no changes to the signal isolator wiring or calibration are required following the DSQC658 replacement. The DeviceNet protocol layer is fully transparent to the analog signal chain downstream of the I/O modules.

Retrofit Guidance FAQ

Q: Will my existing RAPID program require modification after replacing the DSQC658?
A: No. The RAPID program references I/O signal names defined in the system configuration, not the physical board. As long as the replacement DSQC658 is configured with the same MAC ID and the DeviceNet scan list is unchanged, all signal references in the RAPID program remain valid.

Q: Do I need to re-teach robot positions after the board replacement?
A: No. The DSQC658 is a communication board only and has no influence on the robot’s motion system, calibration data, or position registers. All taught positions are stored in the DSQC639 computer unit’s memory and are unaffected.

Q: What DeviceNet baud rates does the DSQC658 support?
A: The DSQC658 supports 125 kbps, 250 kbps, and 500 kbps, consistent with the DeviceNet specification. The baud rate is configured in RobotWare’s I/O system settings and must match the baud rate of all other devices on the DeviceNet trunk.

Q: Can the DSQC658 operate as both a DeviceNet master and a slave?
A: Yes, depending on the RobotWare option installed. Option 709-1 configures the board as a DeviceNet master (scanner), while option 709-2 configures it as a slave (adapter). The physical board is identical in both configurations; only the software option differs.

Q: What physical space does the DSQC658 require inside the IRC5 cabinet?
A: The DSQC658 occupies a single communication board slot in the IRC5 controller’s communication bay. No additional DIN-rail space or external mounting hardware is required. The board dimensions and mounting holes are identical to other IRC5 communication boards, ensuring a direct mechanical fit.

Q: Is the DSQC658 compatible with IRC5 controllers running RobotWare 6.x?
A: Yes. ABB’s RobotWare 6.x continues to support the DSQC658 DeviceNet board. The DeviceNet configuration interface in RobotStudio 6.x is functionally identical to earlier versions for this board type.

Warranty Assurance

Every DSQC658 3HAC025779-001 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each board undergoes a functional verification process that includes power-on self-test confirmation, DeviceNet transceiver integrity check, and visual inspection for component-level defects. Units that do not pass this outgoing quality check are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is one business day for initial fault assessment. Customers are requested to provide a brief fault description and, where possible, the IRC5 event log entries associated with the failure. This information allows our technical team to determine whether the fault is board-related or attributable to an external cause such as a wiring fault or power supply issue.

Shipping from our Xiamen warehouse is available via DHL Express, FedEx International Priority, and UPS Worldwide Expedited, with typical transit times of 3–7 business days to most destinations. For urgent replacement requirements, same-day dispatch is available for orders confirmed before 14:00 CST. Export documentation including commercial invoice, packing list, and certificate of origin is provided with every shipment to facilitate customs clearance.

TOPNLMS maintains a standing inventory of DSQC658 units to support both planned maintenance programs and emergency replacement scenarios. Bulk pricing is available for facilities standardizing their spare-parts inventory across multiple IRC5 controllers. Contact our sales team to discuss volume pricing, consignment stock arrangements, or scheduled delivery programs tailored to your maintenance calendar.
