ABB DSQC633A 3HAC031851-001 Original Industrial Spare IRC5 Compatible: Ensuring System Stability in Robot-Driven Production Environments

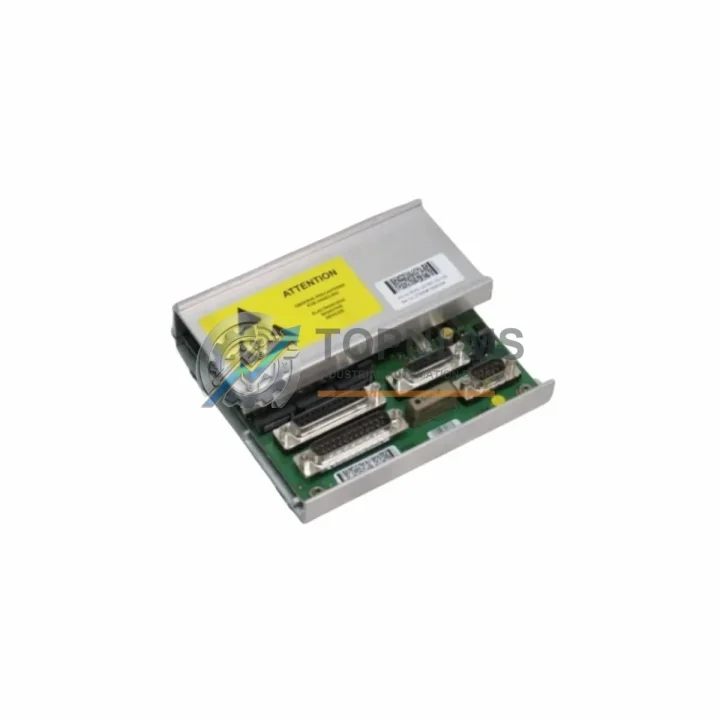

In high-throughput manufacturing facilities where ABB IRC5 robot controllers govern welding, assembly, painting, and material handling operations, the Serial Measurement Board (SMB) — part number DSQC633A / 3HAC031851-001 / 3HAC031977-001 — is a mission-critical component that directly governs axis position feedback, resolver signal conditioning, and battery-backed encoder data retention. When this board degrades or fails, the robot loses positional memory, triggering immediate E-stop faults, calibration loss, and unplanned production downtime that can cost thousands of dollars per hour in a modern automated line.

TOPNLMS stocks the ABB DSQC633A 3HAC031851-001 as a verified original spare, sourced from authorized supply channels, pre-tested before dispatch, and backed by a 12-month warranty. Whether you are managing a planned shutdown, responding to an emergency fault, or building a strategic spare parts inventory for your robot fleet, this SMB module ships promptly to minimize your exposure to unplanned downtime.

Critical Technical Specs

Preventive Maintenance Strategy for ABB IRC5 Robot Controllers

Experienced maintenance engineers know that the SMB board rarely fails in isolation. The DSQC633A interfaces with multiple subsystems across the IRC5 controller cabinet, and a thorough preventive maintenance inspection should treat the SMB replacement as an opportunity to audit the entire control architecture. During a planned shutdown or corrective maintenance event involving the DSQC633A, the following components warrant simultaneous inspection or proactive replacement.

The IRC5 main computer board (DSQC639 or DSQC1000) communicates directly with the SMB via the serial measurement bus. If the SMB has shown intermittent faults, the main computer’s communication ports and firmware version should be verified to rule out upstream signal integrity issues. Similarly, the axis computer board (DSQC668) manages drive coordination and should be inspected for capacitor aging and connector corrosion, particularly in high-humidity or high-vibration environments.

The IRC5 drive unit modules — including the rectifier unit and drive modules for each axis — are subject to thermal cycling stress and should have their DC bus capacitors and cooling fans checked during any extended shutdown. Alongside the drive system, the power supply unit (DSQC661 or DSQC662) provides regulated 24VDC to the SMB and logic boards; a degraded PSU can cause erratic SMB behavior that mimics board failure, making PSU health verification a mandatory step before condemning the DSQC633A.

Resolver cables and SMB cable harnesses (3HAC031683-001 series) are a frequently overlooked failure point. These cables carry low-level analog resolver signals that are highly susceptible to insulation breakdown, connector pin corrosion, and mechanical fatigue at cable entry points near the robot base. Replacing the SMB board without inspecting the associated cable harness risks repeat failures within months. Technicians should also verify the condition of the teach pendant cable (3HAC028357-001) and FlexPendant unit, as pendant communication faults can sometimes be misdiagnosed as SMB or main computer issues.

For facilities operating multiple IRC5 robots, the IRC5 panel board (DSQC643) and I/O modules (DSQC652 / DSQC651 DeviceNet) should be included in the periodic inspection cycle. I/O module failures can cause safety chain interruptions that generate misleading SMB-related fault codes. Maintaining a small buffer stock of these I/O modules — alongside the DSQC633A — significantly reduces mean time to repair (MTTR) across the robot fleet. Finally, the SMB battery (3HAC044075-001) should be replaced on a scheduled basis (typically every 3–5 years or per ABB’s maintenance manual) to prevent resolver position loss during power cycling, which is one of the most common causes of unplanned recalibration events.

Strategic Replacement Solutions

The ABB DSQC633A 3HAC031851-001 is a direct replacement for earlier SMB revisions used across the IRC5 platform, including units originally shipped with IRB 1600, IRB 2400, IRB 4600, IRB 6640, and IRB 6700 series robots. Because the IRC5 controller platform has been in production since 2004 and remains widely deployed globally, OEM spare availability from ABB’s standard distribution channels can be subject to lead times of 4–12 weeks for certain revisions. Maintaining a site-level or regional warehouse stock of the DSQC633A eliminates this lead time risk entirely.

For facilities transitioning from older IRC5 single-cabinet configurations to IRC5 Compact or Panel Mounted variants, the DSQC633A retains full compatibility across the IRC5 family, making it a single SKU that covers multiple robot models in a mixed fleet. This cross-compatibility reduces the number of unique spare part numbers that maintenance teams must manage, simplifying procurement, storage, and documentation workflows.

When replacing the DSQC633A in the field, the procedure requires a resolver calibration (fine calibration) after installation to restore axis reference positions. TOPNLMS recommends having the ABB RobotStudio calibration tool or a qualified ABB-certified technician available at the time of replacement to minimize the total time from board swap to production resumption. All units supplied by TOPNLMS are tested for electrical continuity and communication function prior to dispatch, reducing the risk of receiving a non-functional spare during a critical maintenance window.

Support FAQ

Q1: Is the DSQC633A 3HAC031851-001 compatible with all IRC5 robot models?
The DSQC633A is compatible with the full ABB IRC5 controller family, including Single Cabinet, Dual Cabinet, Compact, and Panel Mounted variants. It supports IRB series robots including IRB 1600, IRB 2400, IRB 4600, IRB 6640, and IRB 6700, among others. If you are unsure about compatibility with a specific robot serial number or IRC5 revision, please contact us with your robot’s nameplate data and we will confirm before shipment.

Q2: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of invoice. It does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact TOPNLMS with your invoice number and a description of the fault. We will arrange return shipping and provide a replacement or refund upon verification.

Q3: How is the DSQC633A tested before shipment?
Every DSQC633A unit undergoes electrical continuity testing and functional communication verification prior to dispatch. Units that do not pass our pre-shipment inspection are quarantined and not sold. This process ensures that the spare you receive is ready for installation without requiring additional bench testing on your end, reducing your total replacement time during a maintenance event.

Q4: How should I plan my spare parts inventory for a multi-robot IRC5 facility?
For facilities operating 5 or more IRC5 robots, we recommend maintaining at least one DSQC633A SMB board on-site at all times, alongside one SMB battery (3HAC044075-001) and one set of SMB cable harnesses. For larger fleets (10+ robots), a ratio of one SMB board per 8–10 robots is a practical starting point, adjusted based on robot age, duty cycle, and your facility’s acceptable MTTR target. TOPNLMS can support volume procurement with consistent lead times and competitive pricing for MRO and strategic inventory programs.
