ABB DSQC627 3HAC020466-001 Original Industrial Spare IRC5 Compatible: System Stability & Industrial Spare Maintenance Value

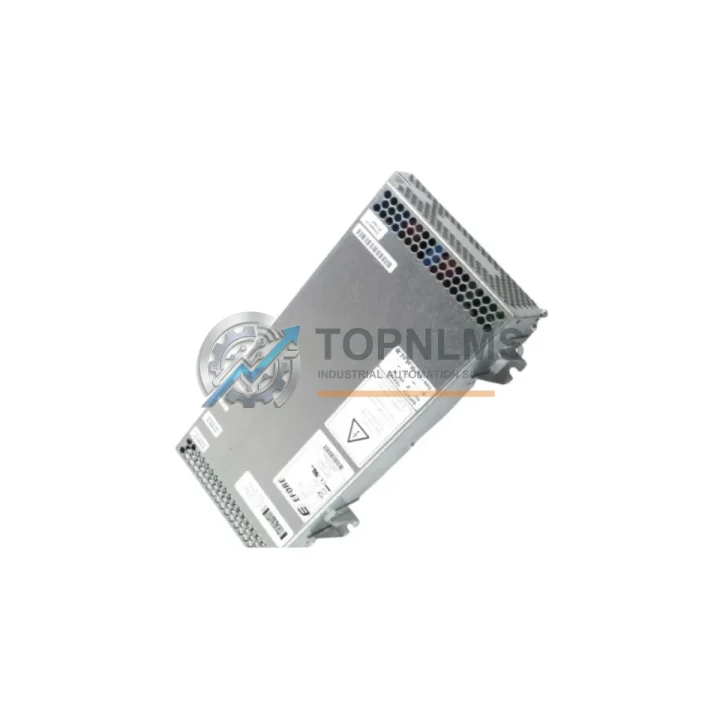

The ABB DSQC627 (part number 3HAC020466-001) is the original power supply unit designed for the ABB IRC5 robot controller family — one of the most widely deployed industrial robot control platforms in automotive, electronics, metal fabrication, and general manufacturing environments worldwide. As a critical power conversion and distribution component within the IRC5 cabinet, the DSQC627 directly governs the operational stability of the entire robot cell. A degraded or failed power supply is among the leading causes of unplanned robot downtime, making this unit a high-priority spare for any maintenance team managing ABB robotic assets.

Sourced as an original ABB spare part, each DSQC627 unit stocked at TOPNLMS undergoes incoming inspection and functional verification before dispatch. We supply this module to maintenance engineers, MRO procurement teams, and system integrators who require a reliable, drop-in replacement that preserves the original IRC5 system architecture without requiring firmware reconfiguration or hardware adaptation.

Critical Technical Specs

Preventive Maintenance Strategy

The DSQC627 power supply sits at the heart of the IRC5 controller cabinet, and its health directly affects every downstream board and module. A structured preventive maintenance approach for IRC5-based robot cells should treat the power supply as a scheduled replacement item — not a reactive one. Industry practice recommends inspecting the power supply output rails during every major planned shutdown, typically at 8,000–12,000 operating hours or annually, whichever comes first.

During a cabinet inspection cycle, maintenance teams should simultaneously evaluate the DSQC608 axis computer board, which processes motion commands and is sensitive to supply voltage ripple. If the DSQC627 shows signs of output instability — evidenced by intermittent E-stop faults, axis communication errors, or unexpected controller reboots — the DSQC608 should be tested in parallel, as secondary board damage from a failing PSU is common.

The DSQC662 fieldbus adapter and DSQC679 teach pendant interface unit are also powered through the IRC5 internal bus. Voltage sags from a degrading DSQC627 can manifest as teach pendant disconnection events or fieldbus timeout alarms before the PSU itself triggers a hard fault — making these components useful early-warning indicators during troubleshooting. Stocking a spare DSQC662 alongside the DSQC627 is a common practice in facilities running DeviceNet or PROFIBUS-integrated robot cells.

For facilities managing multiple IRC5 cabinets, the DSQC643 I/O module and DSQC652 digital I/O board are high-turnover spares that should be reviewed during the same maintenance window. These modules handle discrete signal exchange with PLCs and safety relays; a power anomaly from the PSU can corrupt I/O states and trigger nuisance safety faults. Keeping one spare of each in the local MRO store eliminates a common source of extended downtime.

The 3HAC026254-001 battery backup unit for the IRC5 controller memory should also be inspected and replaced on a fixed schedule — typically every 2–3 years — independent of the PSU replacement cycle. Battery failure results in loss of robot program memory on power cycle, which can extend a planned maintenance stop into an unplanned production loss event. Pairing a DSQC627 procurement with a battery unit order is an efficient way to consolidate shipping and reduce per-unit logistics cost.

For robot cells with integrated safety circuits, the DSQC400 safety board and associated 3HAC14550-1 safety relay module should be part of the same inspection checklist. These components interact directly with the PSU’s 24 V logic rail and are among the first to exhibit erratic behavior when supply quality degrades. Documenting baseline voltage readings at the PSU output terminals during a healthy operating state gives maintenance teams a reference point for future fault diagnosis.

Finally, the IRC5 controller fan assembly (typically referenced as 3HAC025562-001 or equivalent per cabinet variant) should be checked for bearing wear and airflow obstruction during any PSU-related maintenance. Thermal stress from inadequate cooling accelerates capacitor aging in the DSQC627, shortening its service life. A clean, well-ventilated cabinet is the single most cost-effective measure for extending PSU longevity in high-duty-cycle robot applications.

Strategic Replacement Solutions

The DSQC627 has been in production across multiple IRC5 controller generations, and many facilities are still operating IRC5 cabinets that were commissioned 10–15 years ago. ABB’s long-term support model for the IRC5 platform means that original spare parts remain available, but lead times from authorized distributors can extend to 8–16 weeks for less common variants. Maintaining a local buffer stock of the DSQC627 — even a single unit per 5–10 robot cells — is a straightforward way to eliminate PSU-related lead time risk from the maintenance planning equation.

For facilities transitioning from older ABB S4C+ or S4Cplus controllers to IRC5, the DSQC627 represents a clean architectural break: the IRC5 PSU is not backward-compatible with S4-series cabinets, and attempting to cross-fit units will result in damage. Procurement teams should verify the controller generation before ordering. TOPNLMS can assist with part number cross-referencing if the cabinet label or documentation is unclear.

In multi-robot production lines where a single IRC5 master controller coordinates several robot axes via MultiMove configuration, a PSU failure can simultaneously halt all coordinated axes — multiplying the production impact of a single component failure. In these environments, a hot-spare DSQC627 stored in the control room is standard practice among high-availability maintenance programs. The direct plug-in form factor of the DSQC627 means a trained technician can complete a cabinet swap in under 30 minutes, minimizing mean time to repair (MTTR) to a level that is difficult to achieve with any other mitigation strategy.

TOPNLMS supplies the DSQC627 with full pre-shipment functional testing, original or equivalent packaging, and a 12-month warranty covering manufacturing defects and premature failure under normal operating conditions. Units are dispatched within 1–3 business days of order confirmation, with tracking provided for all international shipments.

Support FAQ

Q1: What is the expected service life of the ABB DSQC627, and when should I plan a replacement?
Under normal IRC5 cabinet operating conditions (ambient temperature below 40°C, clean power input, adequate ventilation), the DSQC627 typically delivers 8–12 years of reliable service. Electrolytic capacitor aging is the primary wear mechanism. Proactive replacement at the 8–10 year mark — or at the first sign of output voltage instability — is recommended to avoid unplanned downtime. For high-duty-cycle applications running 24/7, a shorter inspection interval of 5–7 years is advisable.

Q2: Is the DSQC627 compatible with all IRC5 controller variants, and how do I verify compatibility before ordering?
The DSQC627 (3HAC020466-001) is compatible with the standard IRC5 Single Cabinet and Dual Cabinet configurations across most IRB series robots. Compatibility with Panel Mounted Controller (PMC) and IRC5 Compact variants should be verified against the cabinet’s internal wiring diagram or the robot’s product manual. The cabinet type and robot model are printed on the controller identification label. If you are uncertain, provide us with the robot serial number or cabinet label photo and we will confirm compatibility before shipment.

Q3: What pre-shipment testing is performed, and what does the 12-month warranty cover?
Every DSQC627 unit dispatched by TOPNLMS undergoes a power-on functional test verifying output voltage levels on all rails within ABB specification tolerances. The 12-month warranty covers failure due to manufacturing defects or premature component failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or operation outside the specified environmental envelope. Warranty claims are processed with a replacement unit dispatched upon receipt and inspection of the returned part.

Q4: Can I use the DSQC627 as a direct drop-in replacement without reconfiguring the IRC5 controller software?
Yes. The DSQC627 is a hardware-only power supply module with no embedded firmware or software configuration. Replacement requires only mechanical removal of the failed unit, installation of the replacement, and restoration of all cable connections per the cabinet wiring diagram. No RobotWare reconfiguration, IP address reassignment, or system parameter changes are required. A standard warm-start of the IRC5 controller following installation is sufficient to verify normal operation.
