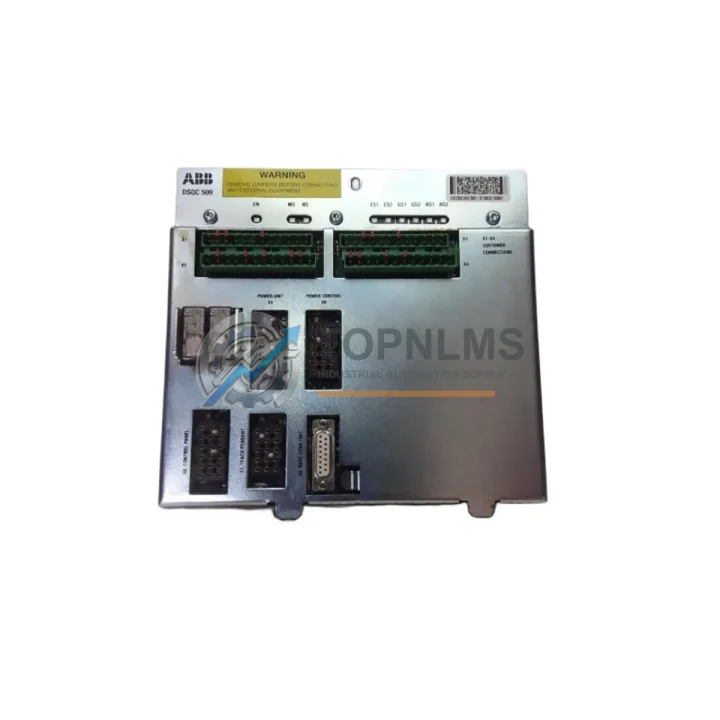

ABB DSQC509 3HAC5687-1/07 Ruggedized Connection Board for Harsh Environments

Product Overview

ABB DSQC509 3HAC5687-1/07 Ruggedized Connection Board for Harsh Environments

The ABB DSQC509 (part number 3HAC5687-1/07) is a high-integrity connection board unit engineered for the ABB IRC5 robot controller platform — one of the most widely deployed industrial robot control architectures in automotive, heavy manufacturing, and process automation. Designed to ABB’s stringent industrial-grade standards, this board delivers reliable signal routing, backplane connectivity, and inter-module communication under the demanding thermal, vibrational, and electromagnetic conditions found in continuous production environments.

In harsh industrial settings — including high-temperature foundries, dusty cement plants, high-humidity food processing lines, and vibration-intensive metal stamping facilities — the integrity of the connection board is mission-critical. The DSQC509 maintains stable electrical contact and signal fidelity even when ambient temperatures fluctuate, when particulate contamination is present, or when the control cabinet is subject to mechanical shock from nearby heavy machinery. Its robust PCB construction and gold-plated connector interfaces resist oxidation and micro-arcing, ensuring that the IRC5 controller’s internal communication bus remains uninterrupted across extended production cycles.

Within the IRC5 controller architecture, the DSQC509 serves as the central interconnect between the main computer unit (typically the DSQC562 or DSQC563 computer board), the axis computer (DSQC668 or DSQC540), and the drive system. Any degradation in this board directly impacts the controller’s ability to coordinate servo drives, process I/O signals from the DSQC652 I/O board, and maintain safe communication with the FlexPendant teach pendant. Replacing a faulty DSQC509 with a genuine, tested unit restores full system integrity without requiring reconfiguration of the broader IRC5 architecture.

The board is also integral to the safety chain within the IRC5 cabinet. It interfaces with the DSQC400 safety board and the emergency stop circuitry, ensuring that safety-rated signals — including axis inhibit, motor-on confirmation, and external safeguard inputs — are transmitted without latency or corruption. In applications governed by ISO 10218 robot safety standards or where functional safety (SIL 2 / PLd) is required, maintaining a verified spare DSQC509 on-site is a recognized best practice for minimizing unplanned downtime.

For facilities operating ABB IRB series robots — including the IRB 1600, IRB 2600, IRB 4600, IRB 6640, and IRB 7600 — the DSQC509 is a common wear-and-replacement component in long-lifecycle deployments. Its compatibility extends across multiple IRC5 cabinet variants, including the single-cabinet controller, the dual-cabinet controller, and the IRC5 Compact, making it a versatile spare for multi-robot cells. Procurement teams managing spare parts inventories for ABB robot fleets should treat the DSQC509 as a Tier-1 critical spare alongside the DSQC652 I/O board, DSQC609 power supply unit, DSQC679 FlexPendant, and DSQC508 connection board.

At TOPNLMS, every DSQC509 3HAC5687-1/07 unit undergoes a structured pre-shipment inspection protocol. Each board is visually inspected for PCB damage, connector pin integrity, and component-level anomalies. Functional verification is performed where applicable, and units are packed in anti-static ESD-safe packaging with foam cushioning to prevent transit damage. Shipment is available via DHL Express, FedEx International Priority, and UPS Worldwide, with typical lead times of 3–7 business days to major industrial hubs in Europe, North America, Southeast Asia, and the Middle East.

Rugged Specifications Table

Comprehensive Protection Solutions

The DSQC509 does not operate in isolation — it is the connective backbone of a tightly integrated control system. In a fully configured IRC5 cabinet, it works in concert with the DSQC562 main computer board, which handles the robot’s motion planning and program execution. The DSQC668 axis computer relies on the connection board to relay real-time position feedback from the resolver circuits on each servo axis. Meanwhile, the DSQC609 power supply unit provides the regulated DC voltages that the DSQC509 distributes across the backplane to downstream boards.

On the I/O side, the DSQC652 24VDC I/O board connects through the DSQC509 to interface with field devices — proximity sensors, solenoid valves, conveyor interlocks, and safety light curtains. In applications where DeviceNet or PROFIBUS communication is required, the DSQC378 DeviceNet board or DSQC350 PROFIBUS adapter integrates into the same backplane architecture, with the DSQC509 ensuring clean signal handoff between the fieldbus module and the main computer. For facilities that have upgraded to EtherNet/IP or PROFINET, the DSQC688 Ethernet board similarly depends on the connection board’s integrity for reliable packet routing.

The DSQC400 safety board, which governs the IRC5’s functional safety outputs including emergency stop, motor-on relay, and axis inhibit signals, is directly interfaced through the DSQC509. Any intermittent contact or signal degradation on the connection board can manifest as nuisance safety trips, unexpected motor-off events, or failure to reset after an e-stop — all of which cause costly production interruptions. Maintaining a verified spare DSQC509 eliminates this risk and supports rapid mean-time-to-repair (MTTR) targets in lean manufacturing environments.

Application in Critical Infrastructure

The ABB DSQC509 3HAC5687-1/07 is deployed across some of the most demanding industrial environments globally. In automotive body-in-white welding lines, IRC5-controlled IRB 6640 robots perform continuous spot-welding operations at high duty cycles, where the connection board must sustain reliable operation despite weld spatter, high-frequency electromagnetic interference from welding inverters, and thermal cycling within the control cabinet. A single board failure in this context can halt an entire production line, making verified spare availability a key procurement criterion.

In oil and gas upstream facilities, ABB robots equipped with IRC5 controllers are used for pipe inspection, valve actuation, and hazardous area material handling. The DSQC509’s role in maintaining the safety chain is particularly critical in these Zone 2 classified environments, where any uncontrolled robot motion due to a control board fault carries significant safety and regulatory consequences. Petrochemical plant maintenance teams routinely stock DSQC-series spare boards as part of their critical spare parts program.

Mining and mineral processing operations — including copper smelters, gold processing plants, and coal handling facilities — subject control equipment to extreme dust loading, vibration from crushers and conveyors, and wide ambient temperature swings. IRC5 controllers managing material handling robots in these environments depend on the DSQC509’s robust construction to maintain communication integrity between the computer, drive, and I/O subsystems. Similarly, in steel mill continuous casting lines and aluminum smelter pot-tending operations, the combination of high radiated heat, electromagnetic noise from large DC drives, and 24/7 production schedules makes the connection board a high-priority spare component.

Water and wastewater treatment facilities increasingly deploy ABB robots for chemical dosing, sludge handling, and UV disinfection system maintenance. The high-humidity, chemically aggressive atmosphere in these plants demands that control components meet stringent reliability standards. Power generation facilities — including thermal power plants and hydroelectric stations — use IRC5-controlled robots for turbine inspection and maintenance tasks, where the DSQC509 must perform reliably during extended maintenance windows with minimal warm-up time.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the DSQC509 3HAC5687-1/07?
The 12-month warranty covers manufacturing defects, component failures, and functional non-conformance identified under normal operating conditions consistent with ABB IRC5 system specifications. If a unit fails within the warranty period, TOPNLMS will provide a replacement or full refund after technical verification. The warranty period begins from the confirmed shipment date and applies to all units regardless of whether they are new or refurbished-tested stock.

Q2: How is each unit tested before shipment?
Every DSQC509 unit undergoes a structured pre-shipment inspection covering visual PCB integrity checks, connector pin condition assessment, and where applicable, functional bench testing against known-good IRC5 reference systems. Units that do not pass inspection are quarantined and not offered for sale. All tested units are packed in ESD-safe anti-static packaging to prevent electrostatic discharge damage during transit.

Q3: Is the DSQC509 3HAC5687-1/07 compatible with all IRC5 cabinet variants?
The DSQC509 with part number 3HAC5687-1/07 is compatible with the ABB IRC5 single-cabinet controller, dual-cabinet controller, and IRC5 Compact variants used with IRB series robots including the IRB 1600, IRB 2600, IRB 4600, IRB 6640, and IRB 7600. If you are uncertain about compatibility with a specific robot model or cabinet revision, please contact our technical team with your robot serial number and we will confirm compatibility before shipment.

Q4: Can TOPNLMS guarantee long-term supply of the DSQC509 for ongoing maintenance programs?
Yes. TOPNLMS maintains dedicated inventory of high-demand DSQC-series boards including the DSQC509, and actively sources from verified supply channels to support customers with multi-unit spare parts programs and long-term maintenance contracts. For facilities managing fleets of ABB IRC5 robots, we offer volume pricing and reserved stock arrangements. Contact our team to discuss your specific spare parts program requirements.
