ABB DSQC500 3HAC3616-1 Replacement for S4C Series

Product Overview

ABB DSQC500 3HAC3616-1 Replacement for S4C Series: Seamless Transition from Legacy Robot Controllers

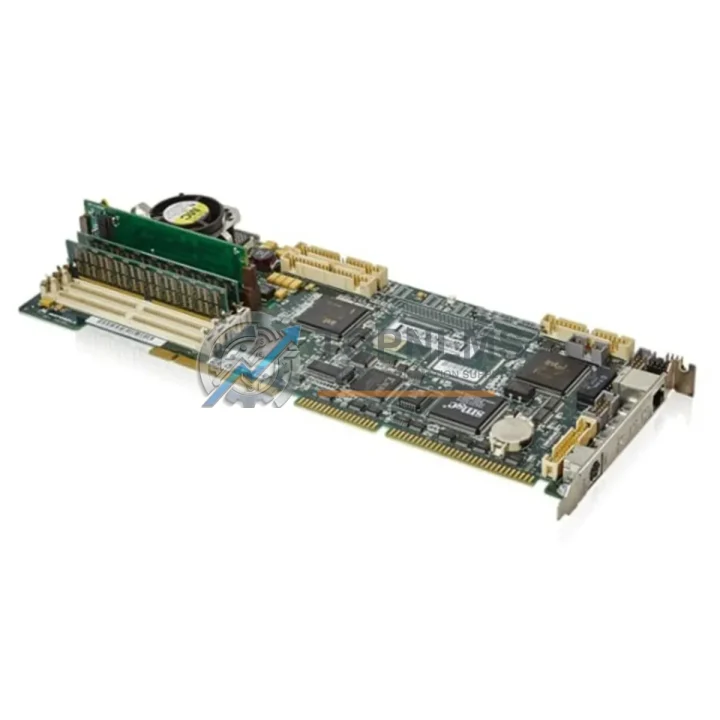

The ABB DSQC500 (3HAC3616-1) Monitor Main Computer Board is the central processing unit of the ABB S4C robot controller platform, responsible for coordinating motion control, I/O management, and real-time communication across the entire robot cell. As ABB progressively phases out S4C-generation hardware in favor of the IRC5 and OmniCore controller families, facilities running IRB 1400, IRB 2400, IRB 4400, or IRB 6400 robots are increasingly facing the challenge of sourcing reliable replacement boards to sustain production continuity without committing to a full controller overhaul.

This DSQC500 3HAC3616-1 unit is sourced, inspected, and dispatched from our Xiamen warehouse. Each board undergoes functional verification prior to shipment, covering power rail integrity, communication bus activity, and firmware boot sequence. Our inventory is maintained specifically to support urgent replacement scenarios where production downtime must be minimized.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DSQC500 board replacement rarely involves the compute board alone. In practice, field engineers replacing a failed or aging DSQC500 3HAC3616-1 will simultaneously audit adjacent components within the S4C controller cabinet to prevent cascading failures after restart. The most commonly co-replaced or co-inspected items include the DSQC609 power supply unit, which provides regulated DC rails to the main computer board and I/O modules, and the DSQC328A or DSQC332A I/O boards that handle digital and analog signal interfacing between the robot controller and the production line’s sensors and actuators.

For cells using fieldbus communication, the DSQC352A DeviceNet master board or the DSQC367 Profibus DP adapter may also require re-initialization after a main computer board swap, as the network node configuration is stored on the DSQC500 itself. Facilities running coordinated multi-robot cells via the S4C’s inter-controller link should also verify the DSQC508 axis computer board and the DSQC510 drive system interface, as these communicate directly with the DSQC500 over the internal VME bus.

Where the upgrade path extends beyond a like-for-like board replacement — for example, when a facility is consolidating multiple S4C cabinets into a single IRC5 MultiMove cell — the DSQC1000 IRC5 main computer and its associated DSQC663 I/O module provide a forward-compatible migration target. In these scenarios, the DSQC500 replacement serves as a bridge solution, keeping the existing S4C cell operational while the IRC5 migration is planned and budgeted. The FlexPendant TPU (teach pendant unit) used with the S4C platform is not compatible with IRC5, so pendant replacement is a parallel procurement consideration for full-platform migrations.

For facilities where the S4C cabinet’s physical condition is sound but the main computer board has failed, a DSQC500 3HAC3616-1 replacement is the most cost-effective and lowest-risk path to restoring production. It eliminates the need to re-engineer the control cabinet, retrain operators on a new HMI, or re-validate robot programs written in RAPID for the S4C platform.

Retrofit Guidance FAQ

Q: Does replacing the DSQC500 require rewiring the S4C cabinet?
A: No. The DSQC500 3HAC3616-1 is a direct plug-in replacement for the S4C controller backplane. All existing harnesses, connectors, and cable routing remain unchanged. The board slides into the same VME slot and connects via the existing backplane interface.

Q: Will my existing RAPID programs still run after the board swap?
A: RAPID programs are stored on the S4C’s memory module (SRAM card), not on the DSQC500 board itself. After replacing the board and restoring RobotWare, your existing programs can be reloaded from the memory module or from a backup file. No reprogramming is required if a valid system backup exists.

Q: What communication protocols does the DSQC500 support?
A: The DSQC500 itself manages the internal VME bus and coordinates with fieldbus adapter modules installed in the S4C cabinet. Supported fieldbus protocols — including DeviceNet, Profibus DP, and Interbus — are handled by dedicated DSQC adapter boards (e.g., DSQC352A, DSQC367) that remain in place during a main computer board replacement. No fieldbus reconfiguration is required unless the adapter boards are also being replaced.

Q: How much physical space does the replacement require?
A: The DSQC500 3HAC3616-1 occupies the same VME card slot as the original board. No additional cabinet space, DIN rail mounting, or enclosure modification is needed. The replacement is dimensionally identical to the original.

Q: What is the recommended procedure for commissioning after board replacement?
A: The standard procedure involves: (1) power down the S4C controller and discharge capacitors; (2) remove the failed DSQC500 and install the replacement; (3) restore RobotWare from the original installation media or a service backup; (4) reload the system parameters and RAPID programs from the SRAM card or backup; (5) perform a cold start and verify axis calibration data; (6) run a dry-cycle test before resuming production. ABB’s S4C service manual (document 3HAC7793-1) provides the full commissioning checklist.

Q: Is the DSQC500 compatible with all S4C robot variants?
A: The DSQC500 3HAC3616-1 is the standard main computer board for the ABB S4C controller platform and is compatible with all robot models that use the S4C cabinet, including IRB 1400, IRB 2400, IRB 4400, and IRB 6400 series. It is not compatible with the earlier S4 or S4C+ controller variants, which use different board revisions.

Warranty Assurance

Every DSQC500 3HAC3616-1 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Our pre-shipment inspection process includes power-on functional testing, communication bus verification, and visual inspection for component-level defects. Units that do not pass inspection are not dispatched.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund, subject to inspection of the returned board. Our technical support team is available to assist with installation questions, compatibility verification, and commissioning guidance via email at [email protected] or by phone at +86 18359293191.

Shipments are dispatched from Xiamen, China, with DHL Express, FedEx International Priority, or equivalent express freight as the default carrier for international orders. Estimated transit times are 3–7 business days to most destinations. Expedited same-day dispatch is available for orders confirmed before 14:00 CST.

For bulk procurement, long-term supply agreements, or technical consultation on S4C-to-IRC5 migration projects, please contact our industrial automation team directly. We maintain standing inventory of DSQC500 and related S4C spare parts to support planned maintenance schedules and emergency breakdown scenarios.
