ABB DSQC266G 3HAB8801-1 Replacement for S4/S4C Series

Product Overview

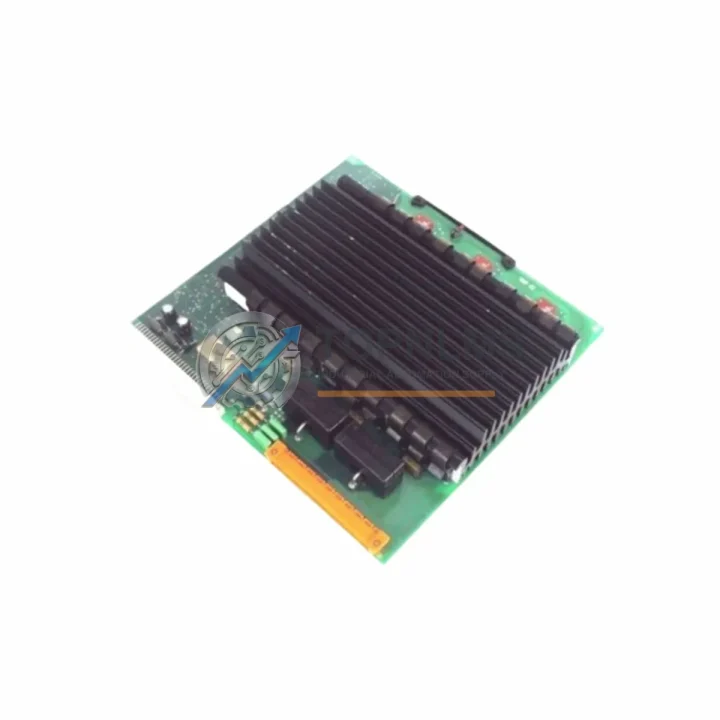

ABB DSQC266G 3HAB8801-1 Replacement & Upgrade Solution for S4/S4C Series: Seamless Transition from Legacy Robot Control

The ABB DSQC266G (part number 3HAB8801-1) is the servo drive axis control board used across ABB’s S4 and S4C robot controller generations — platforms that powered a significant share of global automotive, foundry, and general-purpose industrial automation installations throughout the 1990s and early 2000s. As ABB has progressively discontinued support for the S4 and S4C controller families, procurement teams and maintenance engineers are increasingly challenged to source reliable, tested replacement boards that can restore axis control without triggering a full controller overhaul.

TOPNLMS maintains verified stock of the DSQC266G 3HAB8801-1 and ships from Xiamen with full pre-shipment functional testing. Whether you are managing an emergency breakdown, building a critical-spare inventory, or planning a phased migration from S4/S4C to the IRC5 platform, this board is the correct direct replacement for your existing axis drive control slot.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful S4/S4C servo axis board replacement rarely involves a single component in isolation. In practice, maintenance engineers working on ABB S4 and S4C controllers encounter a cluster of aging components that benefit from simultaneous attention. When replacing the DSQC266G, it is common to also inspect or source the DSQC249A computer board, which serves as the main CPU unit within the S4C controller cabinet and coordinates axis motion commands to the drive boards. Similarly, the DSQC256A or DSQC256B I/O boards — responsible for digital and analog signal routing between the controller and the robot’s peripheral tooling — are frequently found in degraded condition on systems of the same age.

Power supply integrity is another critical factor. The DSQC361 power supply unit, which provides regulated DC rails to the S4C controller’s internal boards, should be verified before commissioning a replacement axis board, as an unstable supply voltage is a common root cause of repeated drive board failures. On systems where the DSQC508 panel board or the DSQC532 teach pendant interface board have developed communication faults, these should be addressed in the same maintenance window to avoid masking axis-level diagnostics.

For sites planning a longer-term migration from S4/S4C to the IRC5 platform, the DSQC266G replacement provides a cost-effective bridge strategy: restore the existing robot to full production capability now, while budgeting for a structured IRC5 controller upgrade in a future planned shutdown. During that migration, components such as the DSQC679 FlexPendant, the DSQC662 I/O module, and the IRC5 drive unit will become relevant. In the interim, the DSQC266G ensures that your S4/S4C robot remains productive and that your existing RAPID programs, resolver calibration data, and tool center point configurations are preserved without modification.

Sites operating multiple robot cells on a shared DeviceNet or Profibus network should also confirm that the DSQC351 DeviceNet board or DSQC352 Profibus board within the S4C cabinet is functioning correctly, as communication faults at the fieldbus level can be misdiagnosed as axis drive failures.

Retrofit Guidance FAQ

Q: Does replacing the DSQC266G require any rewiring of motor or resolver cables?
A: No. The DSQC266G 3HAB8801-1 uses the same connector layout as all prior DSQC266 revisions. Existing motor power cables and resolver feedback cables connect directly without modification. Verify cable condition and connector seating before power-on.

Q: Will the existing RobotWare software and RAPID programs continue to function after the board swap?
A: Yes. The DSQC266G is firmware-transparent at the RobotWare level. No software reinstallation or axis parameter re-entry is required. Axis calibration offsets stored in the SMB (Serial Measurement Board) are retained independently of the drive board.

Q: Is the board compatible with both S4 and S4C+ controller variants?
A: The DSQC266G is confirmed compatible with the S4, S4C, and S4C+ controller generations. It occupies the same physical slot in the drive unit rack and communicates over the same internal backplane bus used across all three variants.

Q: What is the physical installation procedure?
A: Power down the controller and discharge the drive unit capacitors per ABB safety procedure. Remove the faulty board by releasing the front-panel locking levers and sliding the board out of the rack. Insert the DSQC266G, engage the locking levers, reconnect any external signal connectors, and restore power. The controller should recognize the board automatically on boot.

Q: Can this board be used as a cold spare for preventive maintenance inventory?
A: Yes. TOPNLMS recommends holding at least one DSQC266G as a critical spare for any production line running S4 or S4C robots, given the discontinued status of this platform and the extended lead times associated with sourcing OEM-equivalent boards through standard channels.

Q: What communication protocols does the S4/S4C axis control system use?
A: The S4/S4C drive system uses ABB’s proprietary internal drive bus for axis control. External fieldbus communication (DeviceNet, Profibus, Interbus) is handled by separate communication boards and is not affected by the DSQC266G replacement.

Warranty Assurance

Every DSQC266G 3HAB8801-1 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each board undergoes a functional verification process that includes visual inspection for component damage, connector integrity checks, and power-on testing where applicable. Units that do not pass inspection are not offered for sale.

In the event of a warranty claim, TOPNLMS provides replacement or refund support with a target response time of 1–2 business days. Customers are asked to retain original packaging and provide a brief fault description to expedite the claims process. Warranty coverage applies to manufacturing defects and functional failures under normal operating conditions; it does not cover damage resulting from incorrect installation, overvoltage events, or physical impact.

For procurement teams requiring documentation, TOPNLMS can provide a product test report and packing list upon request. Export from Xiamen is supported via DHL, FedEx, and UPS with tracking provided at time of shipment. Typical international transit time is 3–7 business days depending on destination.

For volume orders, spare-part kitting, or urgent breakdown support, contact the TOPNLMS technical sales team directly.
