ABB DSQC1050 3HAC064474-001 Original Industrial Spare IRC5 Compatible

Product Overview

ABB DSQC1050 3HAC064474-001 Original Industrial Spare IRC5 Compatible: System Stability & Industrial Spare Maintenance Value

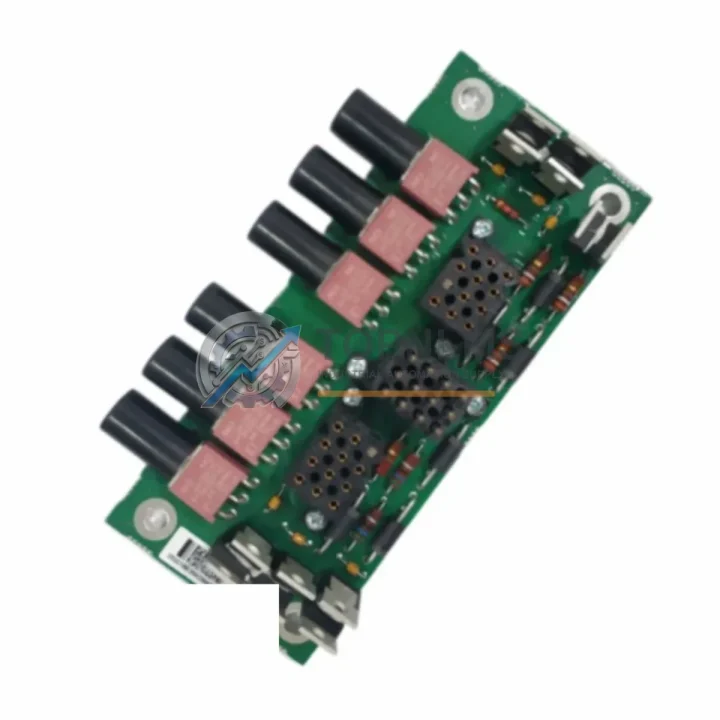

The ABB DSQC1050 (3HAC064474-001) is an original brake plate designed for the ABB IRC5 robot controller series — one of the most widely deployed industrial robot control platforms in automotive, electronics, metal fabrication, and general manufacturing environments worldwide. As production lines age and maintenance cycles intensify, securing a verified, OEM-grade brake plate becomes a critical factor in sustaining robot uptime, protecting servo axis integrity, and avoiding unplanned shutdowns that cascade into costly production losses.

This component serves as a mechanical and electrical interface within the IRC5 drive and brake circuit. When the brake plate degrades — through thermal cycling, mechanical wear, or electrical stress — axis holding performance deteriorates, triggering fault codes, erratic motion, or complete axis lockout. Replacing the DSQC1050 with an original ABB part ensures the brake circuit returns to factory specification without recalibration risk or compatibility uncertainty.

Critical Technical Specs

Preventive Maintenance Strategy

In any IRC5-based robot cell, the brake plate does not operate in isolation. A disciplined preventive maintenance program treats the entire drive and control chain as an integrated system. When scheduling a brake plate replacement or inspection, experienced maintenance engineers routinely audit adjacent components to prevent repeat callouts and maximize the value of each planned downtime window.

During a brake circuit inspection, the DSQC1050 should be evaluated alongside the ABB DSQC662 axis computer board, which governs motion control signals to each robot axis. A degraded axis computer can mask or amplify brake faults, making isolated brake plate replacement insufficient. Similarly, the DSQC609 power distribution board supplies regulated voltage to the brake circuit — any ripple or undervoltage condition accelerates brake plate wear and should be verified with a calibrated multimeter before closing the cabinet.

The DSQC633 I/O module and DSQC652 digital I/O board are frequently inspected in the same maintenance window, as their signal integrity directly affects brake release timing and emergency stop response. Technicians should also check the DSQC679 teach pendant cable and connector integrity — a damaged pendant cable can generate spurious brake commands that accelerate mechanical wear on the brake plate assembly.

For facilities managing multiple IRC5 cabinets, stocking the DSQC1000 main computer unit alongside brake plates is a recognized best practice. A failed main computer during a brake-related fault investigation can extend downtime from hours to days if a replacement is not on-site. Likewise, the DSQC508 axis board and DSQC374 drive unit are high-priority spares in any IRC5 maintenance kit, as they share the same thermal and electrical stress environment as the brake plate.

Control cabinet hygiene is equally important. Inspecting and replacing IRC5 cabinet cooling fans and air filter mats during a brake plate service prevents thermal accumulation that shortens the lifespan of all electronic components in the enclosure. Facilities with older IRC5 installations should also audit 24VDC power supply modules within the cabinet — degraded power supplies are a leading root cause of intermittent brake faults that are misdiagnosed as mechanical brake plate failure.

A complete IRC5 spare parts inventory for a production-critical robot cell typically includes: brake plates (DSQC1050), axis computers, I/O modules, drive units, power distribution boards, teach pendant cables, and cabinet thermal management components. Sourcing these as a coordinated package reduces per-unit procurement cost and ensures all parts arrive tested and ready for immediate installation.

Strategic Replacement Solutions

The ABB IRC5 controller platform has been in active deployment since the mid-2000s, meaning a significant installed base is now operating well beyond its original design lifecycle. OEM support for legacy IRC5 hardware is progressively narrowing, and lead times for factory-new components through standard distribution channels can extend to weeks or months — an unacceptable risk for production-critical applications.

Sourcing the DSQC1050 3HAC064474-001 through a specialist industrial spare parts supplier provides an immediate alternative to extended OEM lead times. Original parts sourced from verified supply chains maintain full compatibility with existing IRC5 firmware, SafeMove configurations, and robot calibration data — eliminating the integration risk associated with aftermarket or counterfeit substitutes.

For facilities transitioning from older IRC5 variants (M2004, M2000A) to current IRC5 revisions, the DSQC1050 brake plate is compatible across the IRC5 generation, providing a stable replacement path without requiring controller hardware upgrades. This compatibility preserves existing robot programs, tool center point (TCP) calibrations, and safety zone configurations — protecting the significant engineering investment embedded in each robot cell.

Planned replacement of the brake plate during scheduled maintenance — rather than reactive replacement after a fault — reduces average repair time from 4–8 hours (unplanned) to under 1 hour (planned), with no production schedule disruption. For high-utilization robots running two or three shifts, a proactive brake plate replacement cycle every 18–24 months is a cost-effective strategy supported by ABB’s own maintenance guidelines.
