ABB DSQC1031 3HAC058664-001 Original Industrial Spare DSQC Compatible

Product Overview

ABB DSQC1031 3HAC058664-001 Original Industrial Spare DSQC Compatible: System Stability and Industrial Spare Parts Maintenance Value

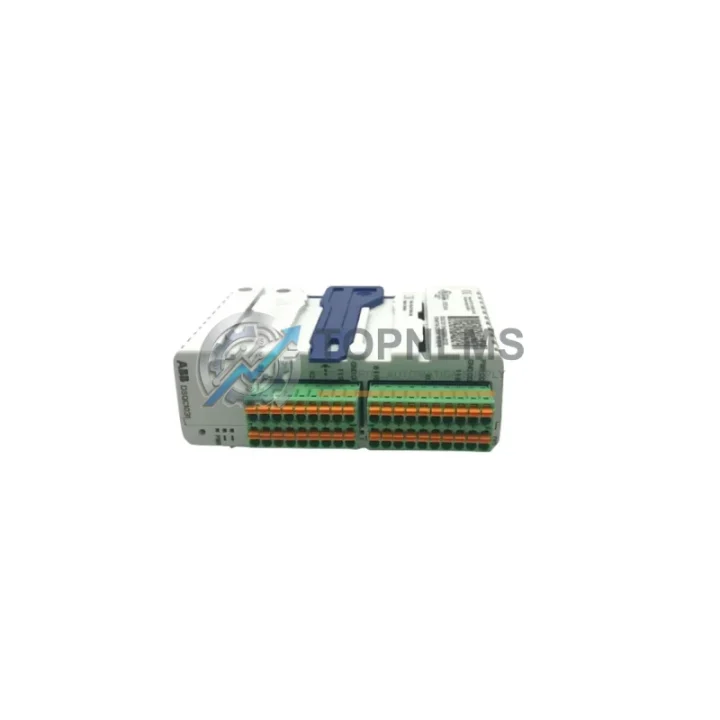

The ABB DSQC1031 (part number 3HAC058664-001) is an original digital I/O expansion module engineered for ABB IRC5 robot controllers. As a core component of the DSQC series I/O architecture, this module provides reliable digital signal interfacing between the robot controller and field devices — including actuators, sensors, conveyors, safety interlocks, and end-of-arm tooling. Maintaining an available stock of the DSQC1031 is a foundational element of any serious preventive maintenance program for ABB robotic cells.

In high-throughput manufacturing environments — automotive body shops, electronics assembly lines, food and beverage packaging, and metal fabrication cells — an IRC5-based robot going offline due to a failed I/O module can halt an entire production line within minutes. The DSQC1031 is a field-replaceable unit designed for rapid swap-out, minimizing mean time to repair (MTTR) and restoring production continuity without requiring controller reconfiguration or software re-commissioning.

Critical Technical Specs

Preventive Maintenance Strategy

When scheduling a planned maintenance window for an ABB IRC5 robotic cell, the DSQC1031 I/O expansion module should be inspected alongside the full I/O stack. Maintenance engineers should verify connector seating, check for oxidation on the DeviceNet bus terminals, and confirm that all 16 digital input and 16 digital output channels are responding correctly via the FlexPendant diagnostic interface.

During the same inspection cycle, it is best practice to audit the DSQC652 (24 VDC I/O module) and DSQC643 (combination I/O module) installed in the same cabinet, as these units share the same DeviceNet segment and a fault on any node can cascade to affect DSQC1031 operation. The DSQC609 power supply unit should also be checked — a degraded 24 VDC rail is one of the most common root causes of intermittent I/O faults that are incorrectly attributed to the expansion module itself.

The DSQC679 FlexPendant teach pendant and its cable assembly (3HAC028357-001) should be inspected for physical damage during the same visit, as pendant communication errors can mask underlying I/O module faults during diagnostics. If the IRC5 cabinet uses a DSQC1000 main computer unit, verify that the firmware version is compatible with the DSQC1031 hardware revision to avoid silent I/O mapping errors after replacement.

For cells with external safety circuits, the DSQC400 or DSQC404 safety I/O boards should be tested in parallel — safety relay outputs and emergency stop chains are frequently routed through the same terminal blocks as the DSQC1031 signal wiring. Inspecting the 3HAC026254-001 DeviceNet cable harness and its M12 connectors at this stage prevents nuisance faults after the I/O module is replaced. Facilities managing multiple IRC5 cells should also maintain a buffer stock of the DSQC662 fieldbus adapter module, as DeviceNet segment failures can affect all I/O nodes simultaneously.

Strategic Replacement Solutions

The DSQC1031 (3HAC058664-001) is a direct replacement for earlier DSQC-series I/O expansion modules used in IRC5 installations dating back to 2005. It is backward-compatible with existing DeviceNet node address configurations, meaning field replacement does not require changes to the robot program, I/O signal mapping, or RAPID code — a critical advantage in production environments where re-validation is time-consuming and costly.

For facilities operating legacy IRC5 cabinets that originally shipped with the DSQC328A or DSQC332A I/O boards, the DSQC1031 provides a modern, higher-density replacement that consolidates I/O capacity while maintaining full compatibility with the existing DeviceNet infrastructure. This upgrade path extends the operational life of IRC5 systems by 5–10 years without requiring a full controller replacement, delivering significant capital expenditure savings.

All DSQC1031 units supplied by TOPNLMS are sourced from authorized channels, individually tested for I/O channel integrity and DeviceNet communication prior to dispatch, and shipped with full ESD protection packaging. Each unit is covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions.

Support FAQ

Q1: Is the DSQC1031 (3HAC058664-001) compatible with all IRC5 variants?
Yes. The DSQC1031 is compatible with the IRC5 Single Cabinet Controller, IRC5 Dual Cabinet Controller, and IRC5 Panel Mounted Controller. It operates on the DeviceNet I/O bus common to all IRC5 variants. Confirm the RobotWare version (5.x or 6.x) on your controller to ensure firmware compatibility before installation.

Q2: How is the DSQC1031 tested before shipment?
Each unit undergoes functional verification of all 16 digital input channels and 16 digital output channels, DeviceNet communication handshake testing, and visual inspection for connector and PCB integrity. A test report is available upon request. Units are dispatched in anti-static packaging with physical protection inserts.

Q3: What is the recommended spare parts inventory strategy for DSQC1031?
For facilities operating 1–3 IRC5 cells, maintaining one DSQC1031 as a cold standby spare is standard practice. For larger installations (4+ cells or 24/7 production), a minimum of two units is recommended to cover simultaneous failures and reduce procurement lead time risk. Pairing the DSQC1031 spare with a DSQC609 power supply unit covers the two most common IRC5 I/O fault scenarios.

Q4: What is the warranty coverage and return policy?
All DSQC1031 units are covered by a 12-month warranty from the date of shipment. Warranty covers functional failure under normal operating conditions and excludes physical damage caused by incorrect installation, overvoltage, or ESD events. Contact [email protected] to initiate a warranty claim or request a pre-shipment test certificate.
