ABB DSPC171 57310001-CC/3 Replacement for DSPC Series

Product Overview

ABB DSPC171 57310001-CC/3 Replacement for DSPC Series: Smooth Migration & Legacy System Upgrade

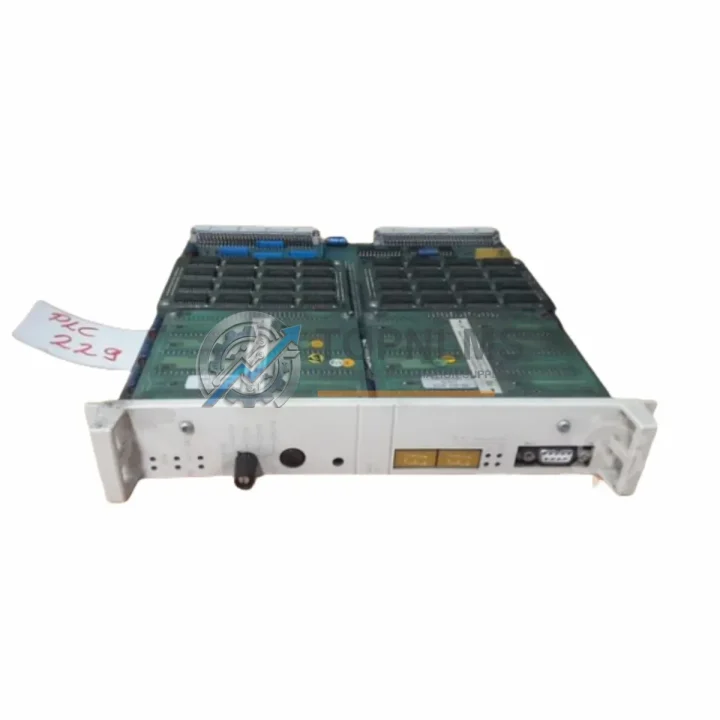

The ABB DSPC171 (57310001-CC/3) is a CPU mainboard processor module designed for ABB’s DSPC Series distributed control and programmable logic controller platforms. As ABB progressively phases out legacy Advant and Master Series hardware, many facilities running DSPC171-based control systems face an urgent need to source verified replacement units or plan a structured migration path. TOPNLMS stocks tested, ready-to-ship DSPC171 modules to minimize your plant downtime and support both direct replacement and phased system modernization.

Whether your existing installation relies on the DSPC171 as the central processing node in an ABB Advant Controller AC450, AC410, or a Master Series rack, this module provides a direct, pin-compatible drop-in replacement. The 57310001-CC/3 revision maintains full backward compatibility with the original DSPC Series backplane bus, preserving your existing I/O wiring, field termination assemblies, and AMPL/ACSPL+ application programs without modification.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DSPC171 replacement or system migration rarely involves the CPU module alone. In most Advant and Master Series installations, the DSPC171 operates alongside a suite of coordinated hardware that must remain functional or be upgraded in parallel. During the swap-out process, engineers typically inspect and, where necessary, replace the DSSR122 or DSSR116 power supply modules to ensure stable 24 VDC delivery to the new CPU board. If the rack’s backplane shows signs of wear or corrosion, the DSPC176 or DSPC452 processor support cards may also require attention to maintain bus integrity.

For facilities migrating from MasterBus 300 to PROFIBUS DP or Modbus TCP/IP, the DSSB110 or DSCS140 communication interface modules serve as the bridge between the legacy DSPC backplane and modern fieldbus networks, allowing the DSPC171 replacement to coexist with updated SCADA or DCS head-end systems without a full rip-and-replace. On the I/O side, DSDI110A digital input modules and DSDO110 digital output modules are commonly inspected during a CPU swap, as firmware-level handshaking between the processor and I/O cards must be verified post-installation.

Where the control cabinet also houses an operator interface, the PP836 or PP865 Panel PC HMI units are frequently upgraded in the same maintenance window, taking advantage of the system downtime to refresh the visualization layer while the CPU is being replaced. For field signal conditioning, DSAI130A analog input modules and signal isolators are often tested alongside the DSPC171 swap to confirm that 4–20 mA loop integrity is maintained across the new processor’s analog acquisition channels. TOPNLMS maintains stock of these complementary DSPC Series components, enabling customers to consolidate their procurement into a single order and reduce lead time risk.

Retrofit Guidance FAQ

Q: Do I need to re-wire the field terminals when replacing the DSPC171?
No. The DSPC171 57310001-CC/3 is a direct slot-in replacement for the existing CPU position in the DSPC Series rack. All field wiring connects to the I/O modules and termination boards downstream of the CPU — the CPU card itself has no direct field wiring. Simply power down the rack, extract the faulty module, insert the replacement, and restore power.

Q: Will my existing AMPL or ACSPL+ application program run on the replacement module?
Yes, provided the replacement is the same revision (CC/3). The application program is stored in battery-backed RAM or on the DSPC Series memory card. After insertion, the controller will reload the program from its existing memory source. We recommend performing a cold-start verification and checking all I/O status flags before returning the system to automatic mode.

Q: Is the DSPC171 compatible with PROFIBUS DP and Advant Fieldbus 100 simultaneously?
The DSPC171 CPU itself manages the Advant Fieldbus 100 (AF100) internal communication. PROFIBUS DP connectivity is handled by dedicated communication modules such as the DSCS140 installed in adjacent rack slots. Replacing the DSPC171 does not affect PROFIBUS DP configuration, which resides in the communication module’s own parameter memory.

Q: What if the physical rack slot is damaged?
If the backplane connector or rack slot is damaged, the replacement CPU module alone will not resolve the issue. In this case, the rack assembly (DSPC Series chassis) must also be inspected or replaced. Contact TOPNLMS for rack-level sourcing support — we can advise on compatible chassis options and assist with multi-component procurement.

Q: How do I verify the replacement module before installing it in the live system?
All TOPNLMS modules undergo bench-level power-on testing and functional verification before dispatch. We recommend customers perform an additional bench test using a spare rack or test jig with a known-good power supply module before installation in the production environment. This is standard practice for CPU-level replacements in safety-critical industrial systems.

Q: Can this module be used in a system running ABB 800xA?
The DSPC171 is a legacy Advant/Master Series component and is not natively compatible with ABB 800xA’s AC800M controller architecture. If your migration target is 800xA, the DSPC171 replacement is a short-term continuity measure while the full migration to AC800M PM866 or PM891 controllers is planned and executed. TOPNLMS can supply both legacy and current-generation ABB controller hardware to support phased migration strategies.

Warranty Assurance

Every ABB DSPC171 57310001-CC/3 module shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Our pre-shipment process includes visual inspection, board-level cleaning, power-on functional testing, and communication interface verification. Modules that fail to meet our quality benchmarks are quarantined and not dispatched.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period, subject to inspection of the returned module. Our technical team is available to assist with installation queries, compatibility confirmation, and post-installation troubleshooting via email at [email protected] or by phone at +86 18359293191. Standard lead time for in-stock modules is 3–7 business days for international express delivery, with expedited options available for urgent plant recovery situations.

We understand that unplanned downtime in industrial control environments carries significant operational and financial consequences. Our procurement model is designed to give maintenance engineers and procurement managers confidence: verified stock, transparent lead times, documented testing, and a clear warranty commitment — so you can make the replacement decision with full information.
