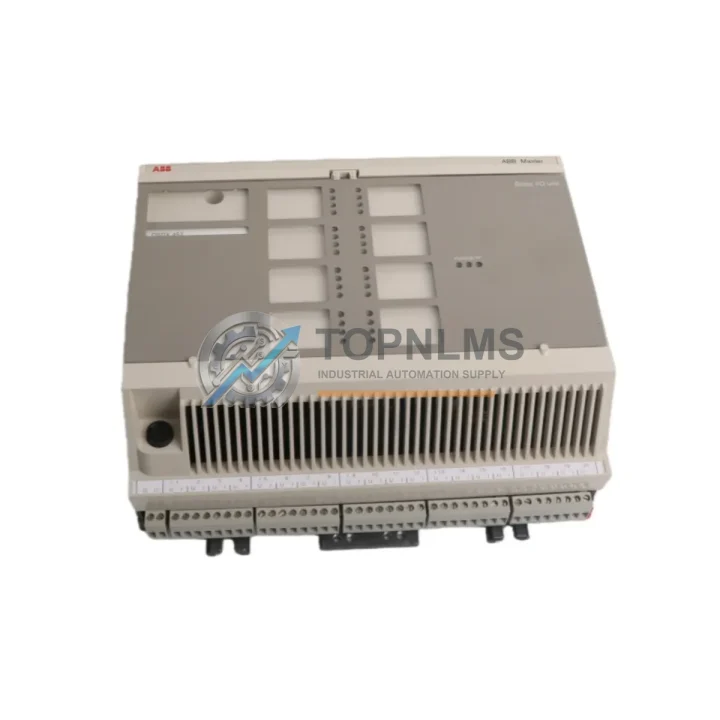

ABB DSDX452 5716075-P Replacement for S800 I/O Series

Product Overview

ABB DSDX452 5716075-P Replacement for S800 I/O Series: Seamless Migration & Smooth Transition

The ABB DSDX452 (order code 5716075-P) is a Digital Input/Output module belonging to ABB’s S800 I/O series, designed for use with the AC800M controller platform and compatible DCS/PLC architectures. As ABB progressively phases out legacy S800 variants and end-users face obsolescence challenges, sourcing a verified, tested replacement unit has become a critical procurement priority for plant engineers and maintenance teams worldwide.

TOPNLMS supplies the DSDX452 5716075-P as a direct drop-in replacement for aging or failed units in existing S800 I/O racks. Whether your facility is running a full AC800M-based DCS, a hybrid control architecture, or a standalone S800 I/O station, this module integrates without requiring changes to your existing wiring harness, ModuleBus cabling, or control program logic — minimizing engineering hours and eliminating costly downtime during replacement.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful S800 I/O migration or emergency replacement rarely involves a single module in isolation. In most field scenarios, the DSDX452 5716075-P is deployed alongside a broader set of S800 and AC800M components. During retrofit or upgrade projects, engineers commonly work with the TB820 ModuleBus Modem or TB840A Redundant ModuleBus Modem to maintain communication integrity between the I/O station and the AC800M controller. The SD821 and SD822 Power Supply units provide the 24 VDC rail that powers the S800 rack, and verifying their output stability is a standard pre-commissioning step when swapping any I/O module.

For facilities upgrading from older S100 or S400 I/O architectures to the S800 platform, the migration typically also involves replacing legacy DSDI110A digital input modules and DSDO110A digital output modules with their S800 equivalents, of which the DSDX452 is a key member. In mixed-signal environments, DSAI130A analog input modules and DSAO120A analog output modules are frequently part of the same rack assembly and should be inspected or replaced concurrently to ensure signal consistency across the I/O station.

Where communication redundancy is required, the CI854A PROFIBUS DP Communication Interface or CI855 ModuleBus Optical Interface modules are often installed in the same control cabinet, and their firmware compatibility with the replacement DSDX452 should be confirmed during the commissioning phase. For facilities that rely on AC800M PM864 or PM866 controllers, the DSDX452 integrates natively without any hardware or software bridge, making it the preferred choice for rapid field replacement with zero program modification.

Retrofit Guidance FAQ

Q: Do I need to rewire field terminals when replacing with DSDX452 5716075-P?
A: No. The DSDX452 uses the same MTU (Module Termination Unit) interface as other S800 I/O modules. Your existing field wiring connects to the MTU, which remains in place. Only the module itself is swapped — no field rewiring is required.

Q: Will my AC800M controller recognize the replacement module automatically?
A: Yes. The DSDX452 is natively supported by the AC800M controller family (PM860 through PM866). Upon insertion, the controller identifies the module via ModuleBus and restores I/O mapping without requiring a program download in most configurations. Verify your Control Builder M project settings to confirm module type assignment.

Q: Is the ModuleBus communication protocol preserved?
A: Fully. The DSDX452 communicates over the standard S800 ModuleBus (electrical or optical, depending on your TB820/TB840 modem configuration). No protocol conversion or additional gateway hardware is needed.

Q: What if my control cabinet has limited space?
A: The DSDX452 occupies a standard single S800 module slot. Its physical dimensions are identical to other S800 I/O modules, so no cabinet modification, DIN rail adjustment, or slot expansion is required.

Q: Can this module replace units from discontinued S800 variants?
A: Yes. The DSDX452 5716075-P is the current active replacement for several discontinued S800 digital I/O variants. TOPNLMS can advise on cross-reference compatibility for specific legacy order codes upon request.

Q: How do I verify the module before installation?
A: Each unit shipped by TOPNLMS undergoes pre-shipment functional testing. We recommend a bench power-on test using a compatible S800 rack and AC800M controller before field installation, particularly for critical process applications.

Warranty Assurance

Every ABB DSDX452 5716075-P supplied by TOPNLMS is backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each unit is inspected and functionally tested to confirm it meets ABB’s original performance specifications.

In the event of a warranty claim, TOPNLMS provides a direct replacement dispatch process — no lengthy RMA queues or third-party authorization delays. Our after-sales response target is within 24 business hours for warranty inquiries. We maintain buffer stock of high-demand S800 I/O modules to support rapid replacement fulfillment for critical plant operations.

Procurement teams can request a test report, serial number documentation, or shipment tracking at any stage of the order process. We ship globally from Xiamen, China, with standard lead times of 3–7 business days for in-stock units, and express options available for emergency plant shutdowns.

For volume orders, long-term supply agreements, or cross-reference verification for other ABB S800 or AC800M components, contact our technical sales team directly.
