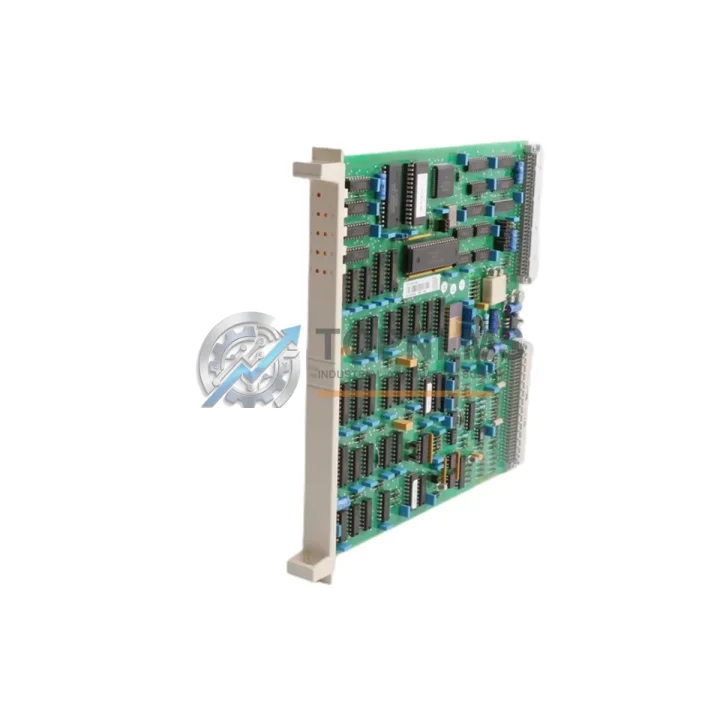

ABB DSDP140B 57160001-ACX Replacement for ADVANT DCS: Smooth Migration to a Reliable Pulse Counter Solution

When a legacy ABB ADVANT Controller system reaches end-of-life or a critical module fails on the production floor, every hour of unplanned downtime translates directly into lost output and escalating maintenance costs. The ABB DSDP140B 57160001-ACX Pulse Counter Module is a proven, field-compatible replacement component for the ADVANT AC 400 and AC 450 distributed control system platforms — enabling plant engineers and procurement teams to restore full system functionality without redesigning the control architecture, rewriting application logic, or modifying existing cabinet wiring.

This module was originally designed and manufactured by ABB as part of the ADVANT series, one of the most widely deployed DCS platforms in the process industries. Its continued availability as a tested spare part makes it an essential procurement target for facilities running continuous production lines in oil and gas, power generation, pulp and paper, chemical processing, and water treatment — sectors where the ADVANT platform remains deeply embedded in plant infrastructure.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful ADVANT DCS module replacement rarely involves a single component in isolation. In practice, the DSDP140B 57160001-ACX is most commonly deployed alongside a broader set of ADVANT platform components that together maintain the integrity of the control loop and field signal chain.

In many retrofit projects, the S100 I/O rack itself — typically a DSRACK series chassis — is retained as-is, with only the failed module being swapped. The rack backplane continues to supply power and carry the S100 bus signals to all installed modules, meaning the DSDP140B slots in without any backplane modification. Where the I/O bus needs to be extended across multiple racks, the DSBC173A 3BSE005883R1 Bus Extender Module handles inter-rack communication, preserving the existing bus topology.

Field wiring from pulse-generating devices — flow meters, turbine sensors, proximity switches, and encoder outputs — connects to the module via DSTB110 or DSTB120 terminal block assemblies. These terminal units are designed for the ADVANT S100 system and allow field cables to be disconnected from the module without disturbing individual wire terminations, which is critical for minimizing downtime during a hot-swap replacement procedure.

The ADVANT controller processor — typically an DSPC172 or DSPC176 Processor Module — continues to execute the application program and communicate with the DSDP140B over the S100 bus without any firmware update or configuration change, provided the replacement module carries the same hardware revision. This is one of the key advantages of sourcing a genuine ABB spare: the hardware revision is preserved, and the controller recognizes the module immediately upon power-up.

For facilities that also operate DSDP170 Digital Input Modules or DSDO110 Digital Output Modules in adjacent rack slots, the replacement of the DSDP140B has no impact on neighboring module operation. The S100 bus architecture is inherently slot-independent, so a single module swap does not require the rack to be taken offline entirely — in many cases, only the affected slot needs to be de-energized.

Where the ADVANT system interfaces with a supervisory SCADA layer or a plant historian via DSMB127 or DSCS141 communication modules, the pulse counter data collected by the DSDP140B continues to flow through the existing data highway without any mapping changes. This is particularly valuable in power metering, flow totalization, and batch counting applications where historical data continuity is a regulatory or process requirement.

For sites planning a phased migration from ADVANT to a modern ABB System 800xA or AC 800M platform, the DSDP140B serves as a cost-effective bridge component — keeping the legacy system operational while the migration project is planned, budgeted, and executed in stages. During this transition period, the existing DSAI130 Analog Input Modules, DSAO110 Analog Output Modules, and communication infrastructure remain in service, reducing the scope and risk of the cutover.

Retrofit Guidance FAQ

Q1: Can the DSDP140B 57160001-ACX be installed without modifying existing field wiring?
Yes. The DSDP140B uses the standard ADVANT S100 terminal block interface. Existing field cables connected to the DSTB terminal unit remain undisturbed. The module itself is unplugged from the rack slot and the replacement is inserted — field wiring does not need to be re-terminated. This is the primary reason this module is classified as a direct drop-in replacement.

Q2: Will the ADVANT controller need to be reprogrammed after replacing the DSDP140B?
No reprogramming is required for a like-for-like replacement. The DSPC processor module reads the hardware configuration from the S100 bus at startup. As long as the replacement DSDP140B carries the same hardware revision (57160001-ACX), the controller will recognize it automatically. If the hardware revision differs, a minor configuration update in the MasterPiece engineering tool may be required — our technical team can advise on revision compatibility before shipment.

Q3: Is the DSDP140B compatible with both AC 400 and AC 450 ADVANT platforms?
Yes. The DSDP140B is compatible with the full ADVANT AC 400 family, including AC 400, AC 410, and AC 450 controller variants. It operates on the S100 I/O bus, which is common across all these platforms. Compatibility with the AC 70 or AC 80 platforms should be verified against the specific rack and bus configuration at your site.

Q4: What if the physical cabinet space has been modified since the original installation?
The DSDP140B occupies a single standard ADVANT rack slot. Its physical dimensions are identical to all other S100 series modules, so no cabinet modification is required. If the original rack has been partially decommissioned and slot availability is limited, our team can advise on rack consolidation options or alternative mounting configurations.

Warranty Assurance

Every ABB DSDP140B 57160001-ACX unit shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Before dispatch, each module undergoes a multi-stage inspection process: visual examination for physical damage, board-level component verification, and functional testing against ADVANT S100 bus communication parameters. Units that do not pass all inspection stages are not shipped.

Our quality assurance process is designed specifically for industrial spare parts procurement, where the cost of receiving a non-functional module — measured in production downtime, emergency logistics, and engineering labor — far exceeds the cost of the part itself. We understand that procurement teams sourcing ADVANT spare parts are often operating under time pressure, and our pre-shipment testing protocol is designed to eliminate the risk of receiving a defective unit.

In the event of a warranty claim, TOPNLMS provides direct replacement support. Our after-sales response team is reachable within one business day, and replacement units for valid warranty claims are prioritized for immediate dispatch. We maintain stock of ADVANT series modules specifically to support warranty replacement scenarios without extended lead times.

For procurement teams requiring documentation — including test reports, inspection certificates, or country-of-origin declarations — these can be provided upon request prior to or at the time of shipment.
