ABB DSDO115A 3BSE018298R1 Original Industrial Spare AC500 Compatible

Product Overview

ABB DSDO115A 3BSE018298R1 Original Industrial Spare AC500 Compatible — System Stability & Maintenance Value

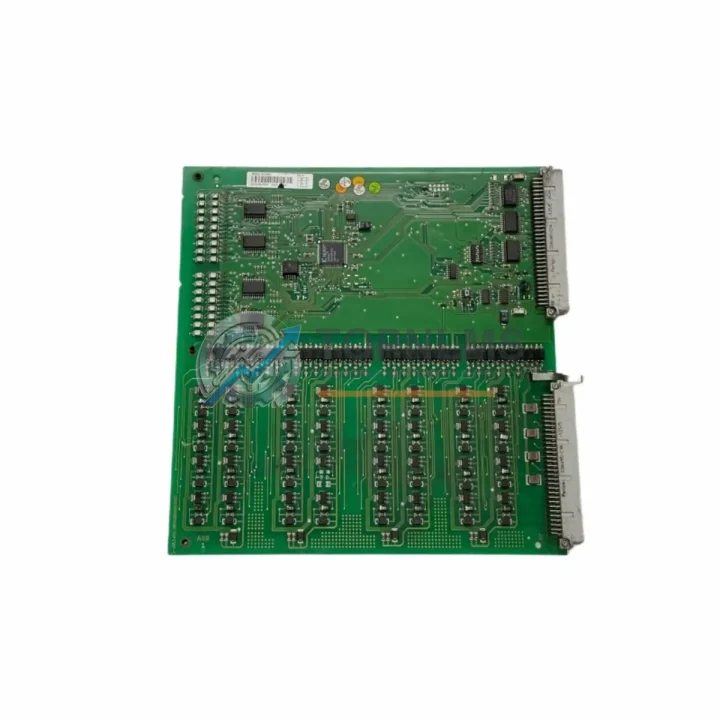

The ABB DSDO115A (3BSE018298R1) is a 16-channel 24VDC digital output module engineered for the ABB AC500 PLC platform and Freelance DCS systems. As a genuine original spare part, it is the preferred replacement choice for maintenance engineers managing aging control cabinets, scheduled shutdowns, and unplanned downtime events across process industries, power generation, water treatment, and discrete manufacturing.

When a digital output module fails in an AC500 or Freelance DCS rack, the consequences extend far beyond a single I/O point. Entire output groups — controlling solenoid valves, motor starters, relay coils, and signal lamps — can go dark simultaneously. Stocking the DSDO115A as a certified original spare eliminates the guesswork of compatibility verification during a crisis and dramatically reduces mean time to repair (MTTR). With pre-tested units shipped from verified inventory, your maintenance team can execute a hot-swap replacement within minutes rather than waiting days for emergency procurement.

Critical Technical Specs

Preventive Maintenance Strategy

A digital output module failure rarely occurs in isolation. In AC500 and Freelance DCS control cabinets, the DSDO115A operates within a tightly integrated I/O architecture. A comprehensive preventive maintenance program should treat the module as part of a broader system health review rather than a standalone component.

During scheduled cabinet inspections, maintenance teams should simultaneously evaluate the DSDI110A (3BSE018295R1) digital input module paired in the same rack — input and output modules share the same terminal unit and backplane bus, meaning thermal stress and vibration affect both equally. The TB511 and TB521 terminal units should be inspected for contact oxidation and loose field wiring, as degraded terminal connections are a leading cause of intermittent output faults that are often misdiagnosed as module failures.

The AC500 CPU modules — such as the PM571, PM581, or PM591 — should be checked for firmware currency and battery backup status during the same maintenance window. A CPU running outdated firmware may generate spurious output commands that accelerate wear on downstream field devices. Alongside the CPU, the CI590-CS31-HA communication module warrants inspection for bus termination integrity and cable shielding continuity, as fieldbus signal degradation is a common hidden contributor to output module faults.

Power supply health is equally critical. The ABB CP-E 24/10.0 or CP-E 24/20.0 power supply modules feeding the 24VDC rail should be load-tested annually. An under-voltage condition on the 24VDC bus is a common root cause of erratic digital output behavior that appears as module failure but is actually a supply issue. Pairing a replacement DSDO115A with a verified power supply ensures the new module operates within its rated electrical envelope from day one.

For Freelance DCS installations, the DSCS130 and DSCS132 communication supervisory modules should be reviewed for alarm history and redundancy switchover logs. If the DCS has experienced repeated output module faults, the root cause may lie in fieldbus signal integrity rather than the module itself — making signal isolators and surge protection barriers on the I/O wiring a worthwhile addition to the maintenance checklist. Additionally, fuse modules and miniature circuit breakers protecting the 24VDC output circuits should be tested for correct trip characteristics; a fuse thermally stressed by a previous short-circuit event may have degraded interrupting capacity, posing a direct risk to the replacement DSDO115A.

Strategic Replacement Solutions

The DSDO115A 3BSE018298R1 is a direct plug-in replacement for any AC500 or Freelance DCS rack position previously occupied by the same module type. No hardware reconfiguration or software re-parameterization is required when replacing like-for-like — the AC500 CPU automatically recognizes the module upon power-up, restoring full output functionality within seconds.

For sites migrating from older Freelance DCS hardware — including legacy DSDO110 or DSDO120 series output modules — the DSDO115A provides a compatible upgrade path that preserves existing field wiring and terminal unit infrastructure. This eliminates the need for costly cabinet rewiring and allows maintenance teams to modernize I/O hardware incrementally, one module at a time, without disrupting production schedules.

Stocking a minimum of two DSDO115A units per control cabinet is recommended for facilities operating continuous processes where unplanned downtime carries significant financial or safety consequences. A two-unit buffer covers both an immediate replacement event and a secondary failure during the procurement lead time for restocking. For multi-cabinet installations, a centralized spare parts store with one unit per four cabinets is a practical inventory optimization strategy that balances carrying cost against downtime risk.

All units supplied by TOPNLMS are pre-tested under load conditions prior to shipment, with functional verification of all 16 output channels. Each module ships with a test report and is covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions.

Support FAQ

Q1: Is the DSDO115A 3BSE018298R1 compatible with all AC500 CPU generations?
Yes. The DSDO115A is compatible with all AC500 V2 and V3 CPU modules (PM571, PM581, PM591, PM592, PM595 series) when mounted on a standard S500 terminal unit. For first-generation AC500 V1 systems, please confirm the firmware version of your CPU before ordering.

Q2: What is the lead time and how is the module tested before shipment?
In-stock units ship within 1–3 business days via DHL Express or FedEx International Priority. Each module undergoes a full 16-channel functional output test at 24VDC rated load before packaging. A test certificate is included with every shipment.

Q3: Can this module replace a failed unit in a running Freelance DCS system without a full system restart?
The DSDO115A supports hot-swap replacement on Freelance DCS systems configured with redundant I/O. For non-redundant configurations, a controlled output group shutdown is recommended before module extraction to prevent field device damage. The replacement module is recognized automatically by the DCS controller upon reinsertion.

Q4: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers all functional failures under normal operating conditions, including output channel failure, communication faults, and power supply input failures attributable to the module. Physical damage caused by incorrect installation, overvoltage, or reverse polarity is excluded. To initiate a warranty claim, contact [email protected] with your order number and a description of the fault. Replacement or repair is completed within 10 business days of receiving the returned unit.
