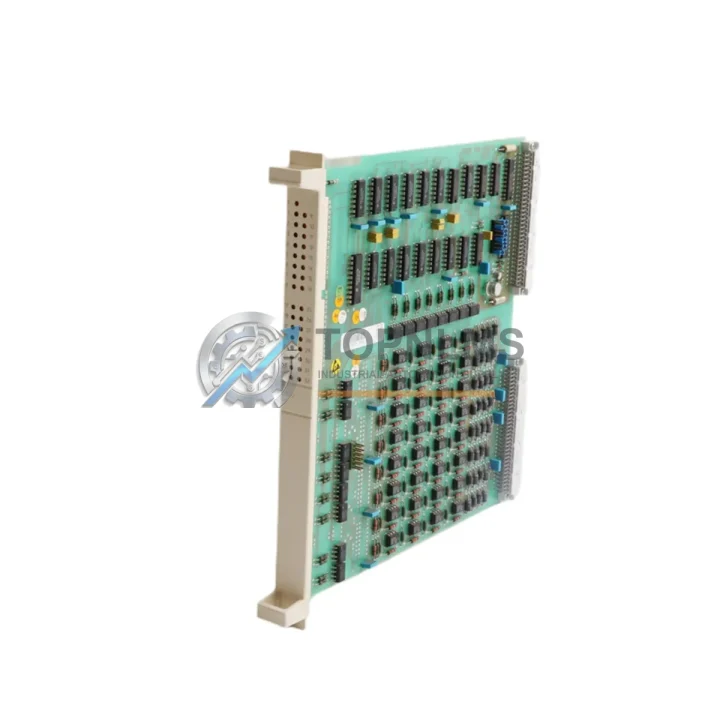

ABB DSDO115 57160001-NF Ruggedized Digital Output Module

Product Overview

ABB DSDO115 57160001-NF Ruggedized Digital Output Module — Industrial Resilience for Harsh Environments

The ABB DSDO115 57160001-NF is a 16-channel, 24 VDC transistor digital output module engineered for the ABB Advant OCS S100 control system platform. Designed to operate reliably in the most demanding industrial environments — including high-temperature process areas, high-humidity coastal facilities, dust-laden mining sites, vibration-intensive heavy machinery floors, and electromagnetically noisy power generation plants — this module delivers consistent, fault-tolerant digital output performance where system uptime is non-negotiable.

Each of the 16 transistor output channels is individually protected against short-circuit and overload conditions, ensuring that a single field-side fault does not cascade into broader control system failure. The solid-state transistor switching design eliminates mechanical wear, making the DSDO115 57160001-NF a preferred choice over relay-based alternatives in continuous production environments where maintenance windows are scarce. Whether driving solenoid valves, motor contactors, indicator lamps, or actuator control circuits, this module maintains precise switching integrity across its full rated operating range.

In the context of the ABB Advant OCS S100 architecture, the DSDO115 slots directly into the S100 I/O bus rack alongside companion modules such as the DSDI110A digital input module and the DSAI130A analog input module, forming a tightly integrated I/O subsystem. The rack-based modular design means that field engineers can replace or expand individual I/O modules without disturbing adjacent modules or rewiring the entire control cabinet — a critical advantage during partial shutdowns or emergency maintenance in oil refinery or chemical plant environments.

Power distribution within the S100 cabinet is typically managed through the DSDP110 power supply module, which provides the regulated 24 VDC bus that the DSDO115 relies upon for both logic and field-side output power. Ensuring that the power supply module is in good condition is a prerequisite for stable DSDO115 operation, particularly in facilities with fluctuating grid quality or frequent load switching events that introduce voltage transients onto the control power rail.

Communication between the S100 I/O subsystem and the Advant OCS master controller is handled through the DSBC172 or DSBC173 S100 bus coupler modules, which translate the parallel I/O bus signals into the Advant fieldbus protocol understood by the AC450 or AC410 controller units. When planning a spare parts inventory for an Advant OCS installation, procurement teams should consider stocking the DSDO115 alongside these bus coupler modules, as a failure in any one of these components can render an entire I/O rack non-functional.

For installations in classified hazardous areas — such as Zone 1 or Zone 2 gas atmospheres in petrochemical plants — the DSDO115 is typically installed in a purged and pressurized control enclosure, with field wiring routed through DSAX110 signal conditioning or isolation modules to maintain the intrinsic safety barrier between the safe-area control cabinet and the hazardous-area field devices. This architecture is common in offshore platform control rooms and onshore LNG terminal automation systems.

In water treatment and municipal utility applications, the DSDO115 controls pump start/stop sequences, valve actuators, and alarm annunciators across geographically distributed pump stations. Its compatibility with the broader Advant OCS S100 ecosystem — including the DSDP140 distributed power module and the DSCS140 communication supervisor — allows plant operators to maintain a unified spare parts strategy across multiple remote sites, reducing the total number of unique part numbers that must be held in inventory.

From a procurement standpoint, the ABB DSDO115 57160001-NF is a discontinued but actively traded spare part. TOPNLMS maintains verified stock of this module, with each unit undergoing functional testing prior to shipment. Units are shipped with full anti-static packaging, individual serial number documentation, and a 12-month replacement warranty covering manufacturing defects and functional failures under normal operating conditions. Typical lead time from order confirmation to dispatch is 1–3 business days for in-stock units, with DHL Express, FedEx International Priority, and UPI air freight options available for urgent requirements.

Rugged Specifications Table

Comprehensive Protection Solutions

A robust Advant OCS S100 control system depends on the coordinated performance of multiple modules working in concert. Alongside the DSDO115 57160001-NF digital output module, a complete and resilient I/O cabinet typically incorporates the DSDI110A 16-channel digital input module for field signal acquisition, and the DSAI130A 8-channel analog input module for process variable monitoring such as temperature, pressure, and flow. On the analog output side, the DSAO120A provides 4–20 mA current loop drive capability for control valves and variable-speed drive setpoint references.

Power integrity is maintained by the DSDP110 S100 power supply module, which conditions incoming AC or DC supply into the regulated voltages required by the I/O bus. In larger installations with multiple I/O racks, the DSDP140 distributed power module extends power distribution across rack expansions without introducing ground loops or common-mode noise that could compromise output switching accuracy. For communication-intensive applications, the DSBC172 bus coupler ensures reliable data exchange between the I/O rack and the Advant fieldbus, while the DSCS140 communication supervisor provides network-level diagnostics and fault isolation.

In safety-critical installations, signal isolation modules such as the DSAX110 are deployed between the DSDO115 output channels and hazardous-area field devices, providing galvanic isolation that protects both the control module and field personnel from fault currents. This layered protection architecture — spanning I/O modules, power supplies, bus couplers, and isolation barriers — is what makes the Advant OCS S100 platform a trusted choice for continuous process industries where unplanned downtime carries significant financial and safety consequences.

Application in Critical Infrastructure

The ABB DSDO115 57160001-NF has a proven deployment history across some of the world’s most demanding industrial sectors. In oil and gas upstream and midstream facilities, it controls wellhead safety valve actuators, pipeline isolation valves, and emergency shutdown (ESD) system outputs, where the transistor output’s fast switching speed and absence of mechanical contacts are essential for meeting SIL-rated response time requirements.

In mining and mineral processing operations, the module drives conveyor belt motor starters, crusher interlock circuits, and ventilation fan controls in environments characterized by heavy vibration, coal dust, and wide ambient temperature swings. The module’s per-channel short-circuit protection prevents a single wiring fault — common in abrasive environments where cable insulation degrades — from disabling the entire output card.

In power generation and grid infrastructure, including coal-fired, gas turbine, and hydroelectric plants, the DSDO115 manages turbine auxiliary systems, cooling water pump controls, and generator excitation switching. Its EMC compliance to IEC 61000 standards ensures stable operation in the high-electromagnetic-interference environment created by large rotating machines and high-voltage switchgear.

In water and wastewater treatment facilities, the module controls dosing pump sequences, UV disinfection system enables, and sludge handling valve actuators across both centralized treatment plants and remote pumping stations. Its compatibility with the Advant OCS communication architecture allows centralized SCADA systems to monitor and control distributed field assets over long-distance fieldbus links without signal degradation.

In metallurgy and steel production, the DSDO115 is deployed in rolling mill control systems, blast furnace auxiliary controls, and continuous casting line automation, where the combination of high ambient temperatures, intense electromagnetic fields from induction furnaces, and 24/7 production schedules demands a digital output module with proven long-term reliability and readily available spare parts support.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the DSDO115 57160001-NF?
All units supplied by TOPNLMS carry a 12-month replacement warranty from the date of shipment. If a module exhibits functional failure under normal operating conditions within the warranty period, TOPNLMS will provide a replacement unit at no additional cost. Warranty claims are processed within 5 business days of fault confirmation.

Q2: How is each unit tested before shipment?
Every DSDO115 57160001-NF unit undergoes a pre-shipment functional test that verifies all 16 output channels for correct switching operation, short-circuit protection response, and bus interface communication. Units that fail any test parameter are quarantined and not shipped. A test record is available upon request for quality-critical procurement processes.

Q3: Is the DSDO115 57160001-NF compatible with my existing Advant OCS S100 rack and controller?
Yes. The DSDO115 57160001-NF is a standard S100 bus-compatible module that installs directly into any ABB S100 I/O rack without hardware modification. It is compatible with AC450, AC410, and other Advant OCS master controllers. If you are uncertain about compatibility with a specific rack revision or firmware version, contact our technical team with your system configuration details before ordering.

Q4: Can TOPNLMS support long-term or repeat procurement of this discontinued module?
Yes. TOPNLMS specializes in sourcing and stocking discontinued ABB Advant OCS components. We maintain ongoing supplier relationships to support repeat orders and can provide advance notification when stock levels approach minimum thresholds. For facilities with multiple Advant OCS installations, we recommend establishing a standing spare parts agreement to ensure continuity of supply without emergency procurement lead times.
