ABB DSDO110 57160001-K Replacement for PROCONTIC CS31: Smooth Transition & Legacy System Compatibility

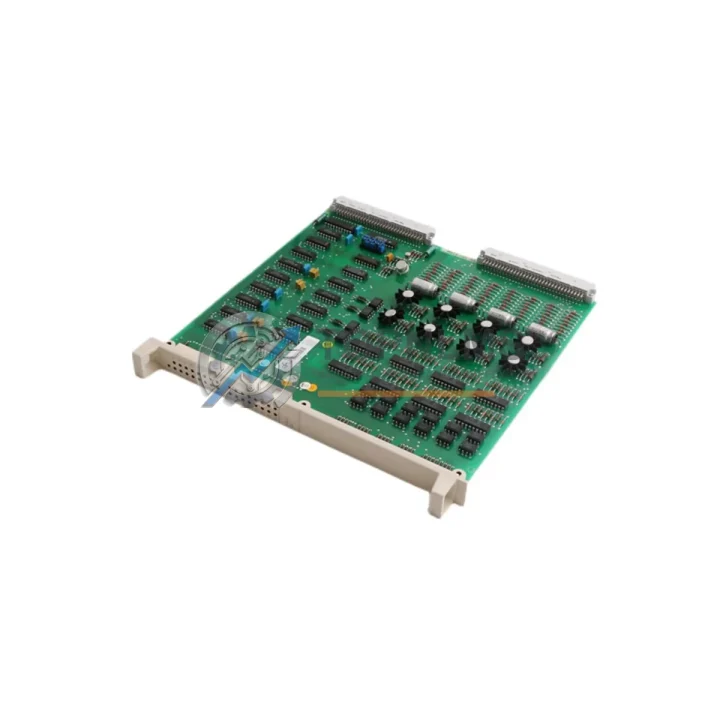

The ABB DSDO110 57160001-K is a 16-channel digital output module designed for the PROCONTIC CS31 distributed I/O system. As ABB progressively phases out legacy PROCONTIC CS31 hardware, many industrial facilities operating older control architectures — including process plants, water treatment stations, and manufacturing lines — face the critical challenge of sourcing reliable replacement modules without triggering a full system overhaul. This product page is dedicated to helping engineers and procurement teams execute a seamless, low-risk migration from end-of-life DSDO110 units to verified replacement or upgrade solutions.

The DSDO110 57160001-K interfaces with the CS31 bus, providing 24 VDC digital outputs rated at 0.5 A per channel. Its DIN-rail form factor and standard CS31 bus connector mean that in most retrofit scenarios, the physical installation footprint, wiring harness, and cabinet space requirements remain unchanged. Engineers migrating from a failed or obsolete DSDO110 can typically reuse existing terminal wiring without re-labelling, significantly reducing downtime during the changeover. The module communicates over the CS31 serial bus at 187.5 kbps, and any replacement must maintain this protocol compatibility to avoid reprogramming the master controller — typically an ABB 07 KT 98 or 07 KT 97 CPU module.

When planning a PROCONTIC CS31 upgrade, the DSDO110 rarely operates in isolation. A complete migration assessment should account for the full rack assembly, including the CS31 bus master, power supply modules such as the DSDO110’s companion DSDP110, and any co-installed digital input modules like the DSDI110 or DSDI115. Analog I/O modules — for example the DSAX110 or DSAY110 — mounted in the same cabinet may also require compatibility verification if the bus master firmware is being updated as part of the modernization project. Ensuring that all modules share a consistent firmware baseline prevents intermittent communication faults that are difficult to diagnose in the field.

For facilities considering a deeper system migration — moving from PROCONTIC CS31 to a more current ABB AC500 platform — the DSDO110 replacement serves as an interim step. The AC500 ecosystem offers modern I/O modules such as the DC532 digital output module, which supports both standard and high-density configurations, and integrates with Automation Builder programming software. However, such a platform migration requires remapping I/O addresses, updating PLC programs, and potentially replacing the communication backbone. In many cases, a like-for-like DSDO110 replacement is the preferred short-term strategy to restore production quickly, with a phased migration to AC500 planned over a longer maintenance window.

Communication protocol compatibility is a key concern during any CS31 retrofit. The CS31 bus uses a proprietary ABB serial protocol, and the DSDO110 must respond correctly to polling cycles initiated by the bus master. Replacement modules sourced from verified industrial distributors — rather than grey-market channels — carry the correct firmware version and factory calibration, ensuring plug-and-play compatibility without bus timing errors. Our stock is tested prior to shipment using CS31 bus simulation equipment, and each unit ships with a functional test report.

Physical installation considerations are equally important. The DSDO110 occupies a standard CS31 module slot and is secured via a DIN-rail clip. The 40-pin front connector carries both the CS31 bus signals and the 24 VDC field wiring. When replacing a failed unit, engineers should inspect the connector pins for corrosion or mechanical damage before re-mating, as connector wear is a common secondary failure mode in aging PROCONTIC cabinets. If the existing connector shows wear, a replacement CS31 front connector assembly should be ordered alongside the DSDO110 module to avoid a repeat service call.

Power supply integrity is another critical factor. The DSDO110 draws its logic power from the CS31 bus backplane, while field output power is supplied externally at 24 VDC. Before installing a replacement module, verify that the cabinet power supply — often an ABB DSQC series or equivalent 24 VDC DIN-rail PSU — is within specification. An under-voltage condition on the field supply rail is a frequent root cause of premature output module failure and should be ruled out before commissioning the replacement unit.

For multi-site operations or facilities maintaining a critical spare inventory, we recommend holding at least one DSDO110 57160001-K as a cold standby. Given the discontinuation trajectory of PROCONTIC CS31 hardware, availability on the open market will continue to tighten. Procuring spares now — while verified stock is available — is a sound risk management strategy that avoids emergency procurement premiums during unplanned outages.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DSDO110 replacement is rarely a single-module exercise. During the retrofit process, engineers frequently identify adjacent components that require attention. The CS31 bus master — typically an ABB 07 KT 98 CPU or 07 KT 97 controller — should be inspected for battery backup integrity and firmware currency. Digital input modules such as the DSDI110 and DSDI115, which share the same CS31 rack, are often replaced in the same maintenance window to standardize the cabinet’s hardware generation. Analog modules including the DSAX110 (analog input) and DSAY110 (analog output) may also be due for replacement if they show signs of drift or calibration error.

Power supply modules — particularly the DSDP110 and compatible 24 VDC DIN-rail power supplies — should be load-tested before the new DSDO110 is commissioned. Communication infrastructure components such as CS31 bus terminators and shielded bus cables are low-cost items that are frequently overlooked but are critical to bus signal integrity. For sites planning a longer-term migration to the ABB AC500 platform, the DC532 digital output module and the TB5600 terminal base represent the natural upgrade path, and our team can advise on phased migration planning to minimize production disruption.

Retrofit Guidance FAQ

Q: Can I replace the DSDO110 without reprogramming the PLC?
A: Yes. A like-for-like DSDO110 57160001-K replacement requires no changes to the CS31 bus master program. The module address is set via DIP switches on the module face and must match the original configuration.

Q: Is the wiring harness reusable?
A: In most cases, yes. The 40-pin CS31 front connector and field wiring can be transferred directly to the replacement module. Inspect connector pins for wear or corrosion before re-mating.

Q: What communication protocol does the DSDO110 use?
A: The CS31 proprietary serial bus at 187.5 kbps. The replacement module is fully protocol-compatible and requires no bus configuration changes.

Q: Will the replacement module fit in the existing cabinet?
A: Yes. The DSDO110 uses a standard CS31 module slot on a DIN-rail. The physical dimensions are identical, and no cabinet modification is required.

Q: How do I verify the module address after installation?
A: Set the DIP switches on the module front panel to match the original address (0–31). Confirm via the CS31 bus master diagnostic display or programming software that the module is recognized on the bus before enabling outputs.

Q: What if my CS31 bus master is also end-of-life?
A: We stock a range of PROCONTIC CS31 CPU and bus master modules. Contact us with your full system configuration for a comprehensive spare parts assessment.

Warranty Assurance

Every DSDO110 57160001-K shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each module undergoes functional testing on a CS31 bus test bench, verifying all 16 output channels, bus communication, and power consumption within specification. A functional test report is included with each shipment.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response time is within 24 hours on business days. We ship globally from Xiamen, China, with DHL Express, FedEx, and UPS options available to minimize transit time and support urgent maintenance schedules. Export documentation, including commercial invoices and packing lists, is prepared to facilitate smooth customs clearance.

For procurement teams requiring additional assurance, we can provide third-party inspection reports and certificates of conformity upon request. Bulk orders for critical spare inventory are eligible for volume pricing — contact our sales team for a formal quotation.
