ABB DSDI130 Replacement/Upgrade Solution for Advant Master: Seamless Transition for Legacy DCS Systems

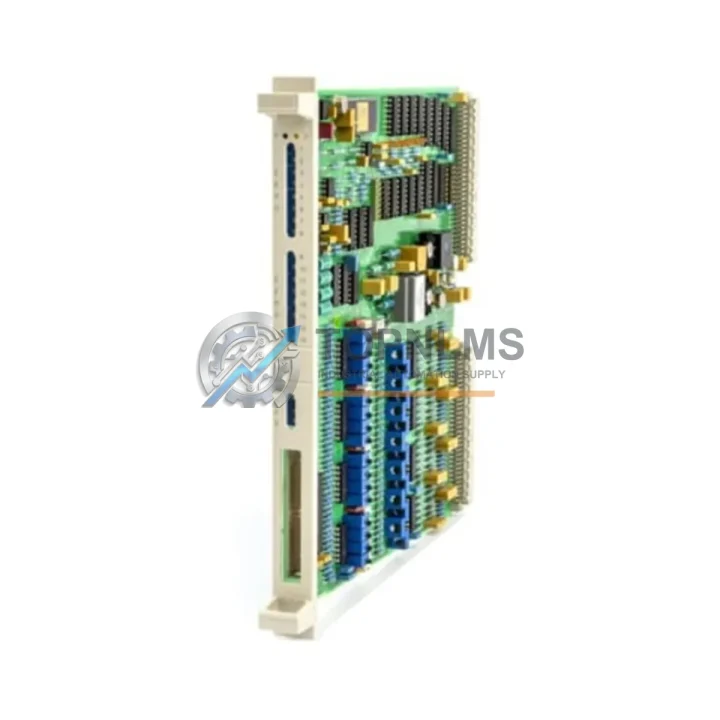

The ABB DSDI130 is a discrete digital input board designed for the ABB Advant/Master DCS platform — one of the most widely deployed distributed control systems in process industries including oil & gas, pulp & paper, chemical processing, and power generation. As aging Advant and Master systems approach end-of-life, facilities face a critical decision: continue sourcing original spare parts to extend system life, or plan a structured migration to a modern control architecture. The DSDI130 sits at the heart of this decision, serving as a direct replacement for failed or degraded discrete input boards while also acting as a bridge component in phased upgrade strategies.

Whether your plant is managing an emergency breakdown replacement or executing a planned system modernization, the DSDI130 provides the electrical and functional compatibility needed to restore operations quickly — without requiring immediate full-system replacement. Each unit shipped from TOPNLMS is sourced from verified industrial channels, fully inspected, and backed by a 12-month warranty.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing the DSDI130 in an Advant or Master DCS environment is rarely an isolated action. In practice, a discrete input board failure often signals broader system stress — particularly in installations that have been running continuously for 15–25 years. A structured upgrade approach begins with the DSDI130 replacement but should encompass a review of the entire I/O subsystem and communication backbone.

During the replacement process, engineers frequently discover that adjacent modules in the same subrack — such as the DSDO110 or DSDO120 digital output boards — show signs of capacitor aging or relay wear. Replacing the DSDI130 while leaving degraded output modules in place creates a single point of failure that can trigger the next unplanned outage within months. It is therefore advisable to inspect and stock companion output modules alongside the DSDI130.

The DSDP140 or DSDP150 power supply modules that feed the Advant subrack are another critical checkpoint. Aging power supplies with marginal voltage regulation can cause intermittent input read errors that are misdiagnosed as DSDI130 failures. Before committing to a board swap, verify subrack supply voltage stability. If the power supply is original and has not been replaced in over a decade, proactive replacement is strongly recommended.

For facilities planning a phased migration from the Advant/Master platform toward ABB’s System 800xA or a third-party DCS, the DSDI130 can serve as a temporary stabilization measure while the new control architecture is engineered and commissioned. During this transition period, DSCS110 or DSCS130 communication supervisor modules may need to be verified for firmware compatibility with any new gateway or OPC server being introduced into the architecture.

Field wiring connected to the DSDI130 typically terminates through DSAX110 or DSAX130 termination units — the physical interface between the field cable and the module’s backplane connector. When replacing the DSDI130, always inspect the termination unit for corroded terminals, loose screw connections, or damaged cable shields. A new DSDI130 installed on a degraded termination unit will inherit the same signal quality problems as the failed board.

If the plant’s Advant system includes DSMB110 or DSMB125 MasterBus communication modules, confirm that the replacement DSDI130 is recognized correctly on the bus after installation. In some firmware revisions, a new board insertion requires a controller re-scan or manual address assignment via the AC70 or AC80 controller engineering tool. Having the correct programming cable — typically a DSRF110 or compatible RS-232/RS-485 adapter — on hand before the replacement window begins eliminates delays during commissioning.

For plants considering a full rack-level upgrade, the DSPC110 or DSPC150 processor modules are often the logical next step after I/O board stabilization. Upgrading the processor while retaining existing I/O modules and field wiring is a cost-effective migration path that extends system life by 5–10 years without requiring a full rewire. The DSDI130 is fully compatible with this hybrid architecture, making it a sound investment even in systems scheduled for eventual modernization.

Retrofit Guidance FAQ

Q1: Can the DSDI130 be installed without reprogramming the Advant controller?
In most cases, yes. The DSDI130 is a direct hardware replacement for the same board type. If the module address and subrack slot position are unchanged, the controller will recognize the new board automatically upon power-up or hot-swap. However, if the replacement involves a different firmware revision or a slot reassignment, a partial controller download may be required using the Advant Engineering Tool (AET) or MasterView 800 software.

Q2: Is the DSDI130 compatible with both Advant OCS and Master Series racks?
The DSDI130 was designed for the ABB Advant/Master platform and is physically and electrically compatible with standard Advant subracks. Compatibility with specific Master Series rack variants depends on the subrack generation and backplane revision. We recommend confirming the subrack part number before ordering. Our technical team can assist with compatibility verification prior to shipment.

Q3: What communication protocols does the DSDI130 support during a migration to a modern DCS?
The DSDI130 communicates via the Advant internal bus (MasterBus 300 or RCOM, depending on system generation). It does not natively support Profibus, HART, or Ethernet/IP. In migration scenarios where the new DCS uses modern fieldbus protocols, the DSDI130 is typically retained on the legacy side of a gateway device (e.g., an OPC DA/UA server or protocol converter) until field wiring is re-terminated to the new I/O system.

Q4: How do I verify physical space compatibility in my existing control cabinet?
The DSDI130 occupies a standard Advant subrack slot. Measure the available slot width and confirm the subrack model accepts the DSDI130 form factor. If the cabinet has been modified or if non-standard modules have been installed, verify clearance for the board’s front connector and any attached termination cables. TOPNLMS can provide dimensional drawings upon request to support pre-installation planning.

Warranty Assurance

Every ABB DSDI130 shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Our pre-shipment inspection process includes visual examination for physical damage, connector integrity verification, and functional testing where applicable. Units that do not meet our quality threshold are not shipped.

In the event of a warranty claim, TOPNLMS provides replacement or repair support with a target response time of 1–3 business days. We maintain stock of common Advant/Master series modules to support rapid exchange, minimizing the impact of any post-installation issue on your production schedule.

Our procurement guarantee includes accurate part number verification before shipment, secure anti-static packaging, and full traceability documentation. For urgent breakdown orders, expedited shipping to major industrial hubs in Asia, Europe, and the Americas is available upon request.
