ABB DSCA 114 57510001-AA Replacement for DSCA Series

Product Overview

ABB DSCA 114 57510001-AA Replacement/Upgrade Solution for DSCA Series: Seamless Transition from Legacy DCS Drive Communication

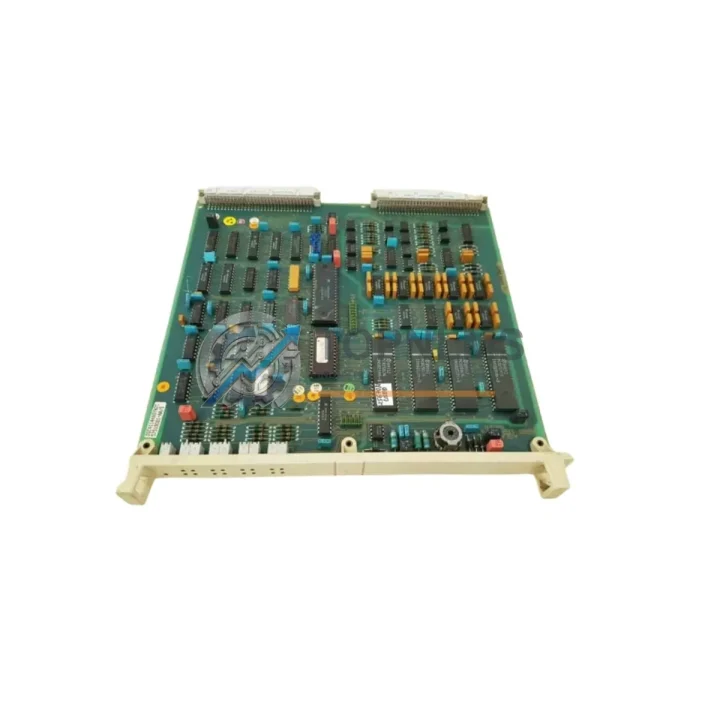

The ABB DSCA 114 (part number 57510001-AA) is a serial interface communication board designed for ABB’s DSCA Series DCS drive systems. As legacy drive platforms age and OEM support windows close, facilities running older ABB DCS architectures face increasing pressure to source reliable replacement modules that maintain full backward compatibility with existing wiring, communication protocols, and control cabinet layouts. TOPNLMS supplies the DSCA 114 as a direct drop-in replacement, fully tested and backed by a 12-month warranty, enabling your engineering team to restore drive communication integrity with minimal downtime and zero reprogramming overhead.

Whether your plant is executing a phased modernization of an ABB Advant or Master series DCS, replacing a failed serial interface board in a running production line, or building a spare-parts inventory ahead of a scheduled shutdown, the DSCA 114 is a proven, specification-matched solution. Its RS-232/RS-485 serial interface architecture is fully compatible with the DDCS (Distributed Drive Control System) fiber-optic communication backbone used across ABB’s legacy drive ecosystem, ensuring that existing DDCS channel assignments, node addresses, and polling cycles require no modification after board swap.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DSCA 114 replacement rarely occurs in isolation. In most retrofit and modernization projects, the communication board swap is one step within a broader drive system restoration or upgrade. During commissioning, engineers frequently find that adjacent components also require attention. The DSCA 110 and DSCA 120 I/O interface boards share the same rack architecture and are commonly replaced alongside the DSCA 114 when performing a full drive board audit. If the drive’s fiber-optic DDCS network is being reconfigured, the NDCO-01 DDCS communication option module may be required to bridge legacy DDCS channels to newer ABB ACS800 or ACS880 drive platforms.

For facilities upgrading the broader control architecture, the DSCS 110 serial communication module and DSCB 110 base board are frequently sourced together to restore full drive-to-DCS communication integrity. Where the existing control cabinet includes ABB Advant Controller 160 or AC 450 hardware, the DSCA 114 integrates directly into the existing DDCS topology without requiring changes to the Advant controller’s communication configuration or I/O mapping tables.

Power supply stability is critical during any drive board replacement. The DSCS 140 power supply module and DSSR 122 power distribution board are commonly inspected and replaced during the same maintenance window to eliminate secondary failure risks. If the site uses ABB’s NPBA-12 PROFIBUS adapter or NMBP-01 Modbus Plus adapter for supervisory SCADA integration, these communication adapters remain fully compatible with the DSCA 114’s serial interface layer and require no firmware changes. For installations where the HMI layer connects via the drive’s serial port, existing Panel Bus or DriveWindow Light configurations continue to operate without modification after the DSCA 114 swap.

When the retrofit scope extends to the I/O subsystem, DSMB 127 and DSAI 130 analog input modules are frequently sourced as part of the same purchase order, allowing the maintenance team to complete the full drive restoration in a single planned shutdown rather than multiple outage windows.

Retrofit Guidance FAQ

Q: Does replacing the DSCA 114 require any rewiring of the control cabinet?
A: No. The DSCA 114 (57510001-AA) uses the same terminal block pinout and backplane connector as earlier DSCA series revisions. The board slides into the existing rack slot and connects to the existing wiring harness without modification. Verify terminal torque specifications per the ABB DSCA Series hardware manual before energizing.

Q: Will the drive’s existing parameter set be lost during the board swap?
A: Drive parameters are stored in the drive’s main control board memory, not on the DSCA 114 communication board. A like-for-like DSCA 114 replacement does not affect the drive’s parameter set. It is nonetheless best practice to perform a full parameter backup using DriveWindow or a compatible programming tool before any board replacement.

Q: Is the DSCA 114 compatible with PROFIBUS DP or Modbus RTU supervisory systems?
A: The DSCA 114 itself provides the serial interface layer for the DDCS drive communication network. PROFIBUS DP or Modbus RTU connectivity to the supervisory SCADA layer is handled by separate adapter modules (e.g., NPBA-12 for PROFIBUS, NMBP-01 for Modbus Plus) that interface with the drive independently of the DSCA 114. Replacing the DSCA 114 does not affect these upper-layer protocol adapters.

Q: What is the physical installation space requirement?
A: The DSCA 114 occupies a single standard DSCA series rack slot. No additional cabinet space or mounting hardware is required. The board’s form factor is identical to earlier DSCA revisions, making it a true drop-in replacement within the existing control cabinet layout.

Q: How should the DDCS fiber-optic connections be handled during replacement?
A: DDCS fiber-optic cables should be disconnected before removing the old board and reconnected to the corresponding CH1/CH2/CH3 ports on the DSCA 114 in the same channel order. DDCS node addressing is configured via drive parameters, not on the board itself, so no address reconfiguration is required for a like-for-like swap.

Q: Can the DSCA 114 be used in a mixed-generation ABB drive system?
A: The DSCA 114 is designed for DSCA Series DCS drives. Compatibility with other ABB drive families (e.g., ACS800, ACS880, DCS800) depends on the specific drive’s communication architecture. Contact TOPNLMS with your full system configuration for a compatibility assessment before ordering for non-standard applications.

Warranty Assurance

Every ABB DSCA 114 (57510001-AA) shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes a multi-point functional inspection covering board integrity, connector condition, component verification, and communication interface continuity. Units that do not meet our quality standards are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund based on the confirmed fault condition. Our after-sales response target is 24 hours for initial fault assessment and replacement dispatch coordination. We maintain stock of the DSCA 114 and related DSCA Series components to support rapid replacement without extended lead times.

For procurement teams managing planned maintenance schedules, TOPNLMS can provide advance stock reservation, batch inspection reports, and consolidated shipping for multi-unit orders. All units are shipped with appropriate ESD-protective packaging and export documentation suitable for international customs clearance.

For purchasing inquiries, technical compatibility questions, or warranty claims, contact our industrial automation team directly:

📧 [email protected] | 📞 +86 18359293191
