ABB DSAX110 57120001-P Original Industrial Spare DSAX Series Compatible: System Stability Through Reliable Analog I/O Maintenance

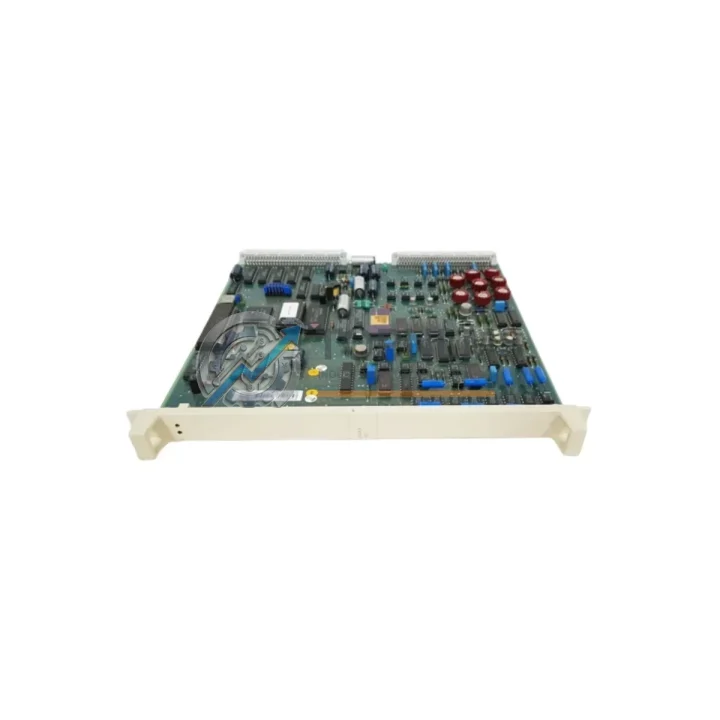

The ABB DSAX110 (part number 57120001-P) is an original analog input/output board designed for the ABB AC 450 Distributed Control System, operating within the Advant Controller DSAX Series architecture. In process industries — including oil & gas, pulp & paper, power generation, and chemical manufacturing — the AC 450 DCS remains a cornerstone of legacy automation infrastructure. Maintaining system stability in these environments depends critically on the availability of verified, original spare parts such as the DSAX110, which handles the analog signal conditioning and I/O processing that underpins real-time process control loops.

When a DSAX110 board fails or degrades, the consequences extend far beyond a single I/O channel. Analog signal integrity across the entire control loop is compromised, potentially triggering process shutdowns, false alarms, or uncontrolled process deviations. Sourcing an original ABB DSAX110 57120001-P — rather than an uncertified substitute — ensures that signal scaling, channel isolation, and firmware compatibility remain within the original design specification of the AC 450 system. Every unit supplied by TOPNLMS is sourced from verified industrial channels, functionally tested prior to dispatch, and covered by a 12-month warranty.

Critical Technical Specs Table

Preventive Maintenance Strategy

A scheduled replacement of the DSAX110 analog I/O board should not be treated in isolation. In the AC 450 DCS cabinet, the analog I/O subsystem is tightly coupled with several other components whose condition directly affects measurement accuracy and control reliability. During any planned maintenance window involving the DSAX110, maintenance engineers are strongly advised to simultaneously inspect and, where necessary, replace the following associated components.

The DSMB110 / DSMB115 motherboard and DSBC110 bus controller form the backplane communication backbone for the DSAX110. Degraded backplane connectors or bus controller firmware issues can cause intermittent analog channel faults that are often misdiagnosed as DSAX110 failures. Inspecting these boards during the same maintenance cycle eliminates ambiguity and prevents repeat callouts.

The DSDI110 digital input module and DSDO110 digital output module frequently share the same subrack as the DSAX110. In mixed analog/digital control loops — common in valve control and motor starter circuits — a failing digital I/O module can mask or amplify analog signal anomalies. Replacing or bench-testing these modules alongside the DSAX110 ensures the entire I/O tier is validated in a single maintenance event.

Power supply integrity is equally critical. The DSDP110 / DSDP140 power supply module provides regulated DC voltage to the I/O subrack. Voltage ripple or marginal output from an aging power supply is a leading cause of premature analog board failure. Stocking a spare DSDP series power module alongside the DSAX110 is a standard best practice for AC 450 sites with high uptime requirements.

For sites using the AC 450 in conjunction with fieldbus or serial communication, the DSCS110 communication supervisor module and DSCL110 communication link module should be inspected for connector wear and firmware currency. Communication module degradation can introduce latency into the analog control loop, reducing the effective response time of the DSAX110’s signal processing.

Finally, terminal blocks, field wiring connectors, and signal cable shielding terminations within the control cabinet should be checked for corrosion, loose crimps, and insulation breakdown. These passive components are frequently overlooked but are a common source of analog signal drift that is incorrectly attributed to the I/O board itself. Maintaining a small stock of compatible ABB DSAX series field connector sets and shielded signal cables ensures that a complete, verified repair can be completed within a single maintenance window.

Strategic Replacement Solutions

The ABB AC 450 DCS platform, while no longer in active production, continues to operate in hundreds of industrial facilities worldwide. ABB’s official end-of-life policy for the AC 450 means that OEM support channels are increasingly constrained, making the availability of original spare parts from specialist industrial suppliers a critical factor in plant lifecycle planning.

The DSAX110 57120001-P supplied by TOPNLMS is an original ABB board — not a third-party reproduction or remanufactured substitute. This distinction matters for system compatibility: the AC 450’s S100 I/O bus uses proprietary communication protocols and hardware handshaking that are sensitive to non-original board variants. Installing an original DSAX110 eliminates the risk of bus communication errors, channel calibration drift, and firmware incompatibility that can arise from non-OEM replacements.

For facilities managing a planned migration from AC 450 to a modern DCS platform — such as ABB System 800xA or a third-party equivalent — maintaining a buffer stock of DSAX110 boards provides operational continuity during the transition period. A recommended minimum stock level of two to three DSAX110 units per active subrack, combined with a documented replacement interval based on operating hours and environmental conditions, significantly reduces the probability of an unplanned shutdown caused by analog I/O failure.

TOPNLMS maintains inventory of DSAX110 and related DSAX Series components to support rapid dispatch. Standard lead time for in-stock units is 3–5 business days for international shipments, with express options available. Each unit is individually tested, labeled with a unique inspection record, and packed in anti-static protective packaging suitable for long-term storage.

Support FAQ

Q1: Is the DSAX110 57120001-P compatible with all AC 450 DCS subrack configurations?
The DSAX110 57120001-P is designed for the ABB AC 450 Advant Controller platform and is compatible with standard S100 I/O bus subracks. Compatibility with specific cabinet configurations should be verified against the site’s existing hardware revision documentation. TOPNLMS technical support can assist with compatibility verification prior to order placement.

Q2: What testing is performed before shipment?
Every DSAX110 unit undergoes functional power-on testing and analog channel verification before dispatch. Units that do not meet original ABB performance specifications are quarantined and not offered for sale. A test record is available upon request for quality-critical procurement processes.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. In the event of a warranty claim, TOPNLMS will provide a replacement unit or full refund at the buyer’s discretion, subject to return inspection.

Q4: How should the DSAX110 be stored if purchased as a long-term spare?
For long-term storage, the DSAX110 should be kept in its original anti-static packaging in a dry, temperature-controlled environment (10°C–30°C, relative humidity below 70%, non-condensing). Avoid storage near strong electromagnetic sources or in environments with corrosive airborne contaminants. Under these conditions, the board can be stored for 3–5 years without degradation of electrical performance.
