ABB DSAO130 57210001-FG Replacement for ADVANT DCS

Product Overview

ABB DSAO130 57210001-FG Replacement for ADVANT DCS: Seamless Migration & Smooth Transition

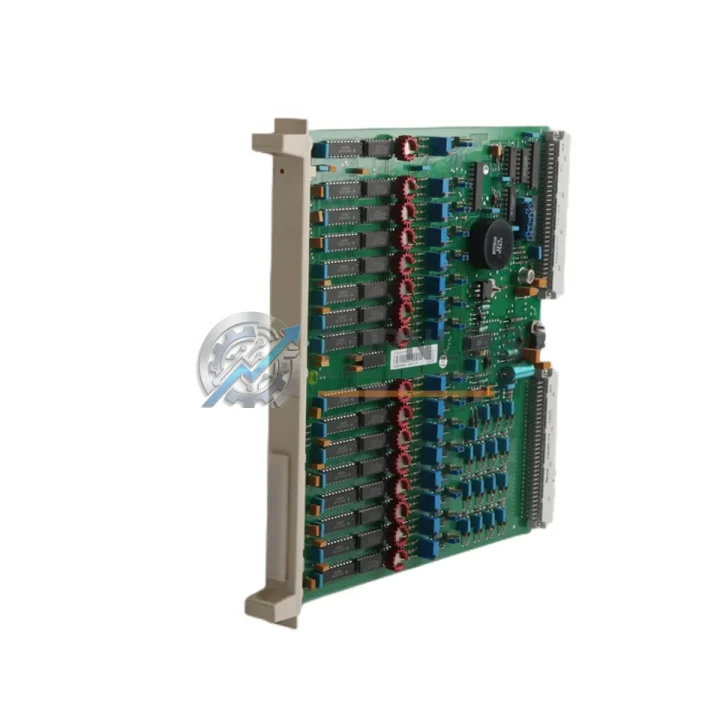

The ABB DSAO130 (part number 57210001-FG) is a 16-channel analog output module designed for the ABB ADVANT Controller series — including the AC450, AC410, and AC400 family — widely deployed in power generation, pulp & paper, oil & gas, and chemical process industries. As ABB progressively phases out legacy ADVANT DCS hardware, many facilities operating DSAO130 modules face the dual challenge of sourcing genuine replacement units and planning a credible migration path to modern control architectures. This page addresses both needs: verified replacement stock and a structured upgrade roadmap that minimises engineering rework and plant downtime.

The DSAO130 module provides 16 individually configurable analog output channels, typically operating at 4–20 mA or 0–10 V DC, and communicates with the ADVANT controller backplane via the proprietary S100 I/O bus. Each channel supports loop-powered field devices including control valves, variable-frequency drives, and positioners. The module occupies a standard S100 subrack slot and draws power from the shared S100 bus supply — meaning any replacement or upgrade must account for subrack compatibility, bus termination, and channel-by-channel signal mapping before commissioning.

For sites that need a direct, like-for-like replacement — whether due to module failure, preventive maintenance rotation, or spare-parts replenishment — TOPNLMS stocks verified DSAO130 57210001-FG units sourced from decommissioned systems and authorised surplus channels. Each unit undergoes functional output testing across all 16 channels prior to dispatch. This is the lowest-risk path: no software changes, no wiring modifications, no re-engineering of the ADVANT control strategy.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DSAO130 migration rarely involves a single module swap. In practice, engineers replacing or upgrading ADVANT DCS analog output capacity must coordinate across several interdependent components. The DSCS130 signal cable assembly connects the DSAO130 rear connector to the marshalling cabinet terminal strips — retaining this cable eliminates the need to re-label or re-terminate field wiring, which is one of the most time-consuming tasks in any DCS retrofit. Similarly, the DSAI130 16-channel analog input module is almost always co-located in the same subrack, and its condition should be assessed simultaneously to avoid a second planned outage.

Power integrity is a common failure point in aging ADVANT cabinets. The DSPU130 power supply unit and associated DSDP140 power distribution board should be inspected — or replaced proactively — when performing a DSAO130 swap, since degraded bus voltage directly affects output accuracy and channel stability. For sites migrating toward modern fieldbus architectures, the DSMB127 Modbus communication module or the DSCOM161 serial communication interface can be introduced alongside the analog output replacement to enable parallel SCADA connectivity during the transition period, without requiring an immediate full DCS migration.

Where the upgrade scope extends to the controller level, the DSQC661 or DSQC679 processor boards (used in AC450 configurations) may be evaluated for replacement or firmware update as part of the same maintenance window. For facilities planning a phased migration toward ABB System 800xA, the S800 I/O family — including the AI810 analog input module and AO810 analog output module — represents the natural successor platform, though this requires new subrack infrastructure and updated control builder configuration. In mixed-architecture environments, the CI854 PROFIBUS DP communication interface module enables the legacy ADVANT controller to communicate with newer S800 I/O stations during the coexistence phase, preserving existing control logic while new hardware is commissioned in parallel.

Retrofit Guidance FAQ

Q: Can I replace the DSAO130 without modifying field wiring?
A: Yes, provided you retain the original DSCS130 rear-panel signal cable. The terminal strip connections to field devices remain unchanged. Only the module card itself is swapped.

Q: Do I need to update the ADVANT control program after replacement?
A: For a like-for-like DSAO130 replacement, no software changes are required. The module address, channel configuration, and I/O list remain identical. If migrating to a different module type, control builder reconfiguration and a full download will be necessary.

Q: Is the DSAO130 compatible with HART field devices?
A: The DSAO130 does not natively support HART communication. A HART multiplexer connected to the 4–20 mA loop is required to access HART device parameters from the DCS level.

Q: How much physical space does the replacement require?
A: The DSAO130 occupies a single S100 subrack slot. No additional cabinet space is needed for a direct replacement. Ensure the adjacent slot is not obstructed, as the module requires adequate airflow clearance.

Q: What is the recommended commissioning procedure after installation?
A: After seating the module, power up the subrack and verify the module status LED. Perform a channel-by-channel loop check using a calibrated mA source/meter. Confirm output values match the controller setpoint in the ADVANT operator station before returning the loop to automatic control.

Q: Can TOPNLMS supply multiple DSAO130 units for a full subrack refresh?
A: Yes. Contact us with your quantity requirement and preferred delivery schedule. Volume orders are accommodated with lead-time confirmation within 24 hours.

Warranty Assurance

Every DSAO130 57210001-FG unit shipped by TOPNLMS carries a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a structured functional test protocol: all 16 analog output channels are verified for signal accuracy, the S100 bus connector is inspected for pin integrity, and the module firmware version is documented. Units that do not pass the full test sequence are not offered for sale.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund — your choice — within the warranty period. Our technical team responds to after-sales enquiries within one business day. For urgent plant situations, expedited dispatch is available from our Xiamen warehouse, with DHL Express and FedEx International Priority options covering most destinations within 3–5 business days.

Procurement documentation including test reports, packing lists, and commercial invoices is provided with every order to support your internal MRO and asset management processes. For projects requiring multiple modules, phased delivery schedules can be arranged to align with your planned maintenance windows.
